Product Details
|
GENERAL DESCRIPTION The AD8336 is a low noise, single-ended, linear-in-dB, general purpose variable gain amplifier, usable over a large range of supply voltages. It features an uncommitted preamplifier (preamp) with a usable gain range of 6 dB to 26 dB established by external resistors in the classical manner. The VGA gain range is 0 dB to 60 dB, and its absolute gain limits are ?26 dB to +34 dB. When the preamplifier gain is adjusted for 12 dB, the combined 3 dB bandwidth of the preamp and VGA is 100 MHz, and the amplifier is fully usable to 80 MHz. With ±5 V supplies, the maximum output swing is 2 V p-p.
Low noise Voltage noise: 3 nV/√Hz Current noise: 3 pA/√Hz Small signal BW: 115 MHz Large signal BW: 2 V p-p = 80 MHz Slew rate: 550 V/μs, 2 V p-p Gain ranges (specified) ?14 dB to +46 dB, 0 dB to 60 dB Gain scaling: 50 dB/V DC-coupled Single-ended input and output Supplies: ±3 V to ±12 V Temperature Range: ?55°C to +125°C Power 150 mW @ ±3 V, ?55°C < T < +125°C 84 mW @ ±3 V, PWRA = 3 V
Industrial process controls High performance AGC systems I/Q signal processing Video Industrial and medical ultrasound Radar receivers |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD8336ACPZ-RL |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Special Purpose Amplifiers | |
| Manufacturer | Original |
| Series |
X-AMP? |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Type | Variable Gain Amplifier |
| Applications | Signal Processing |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Base Product Number | AD8336 |

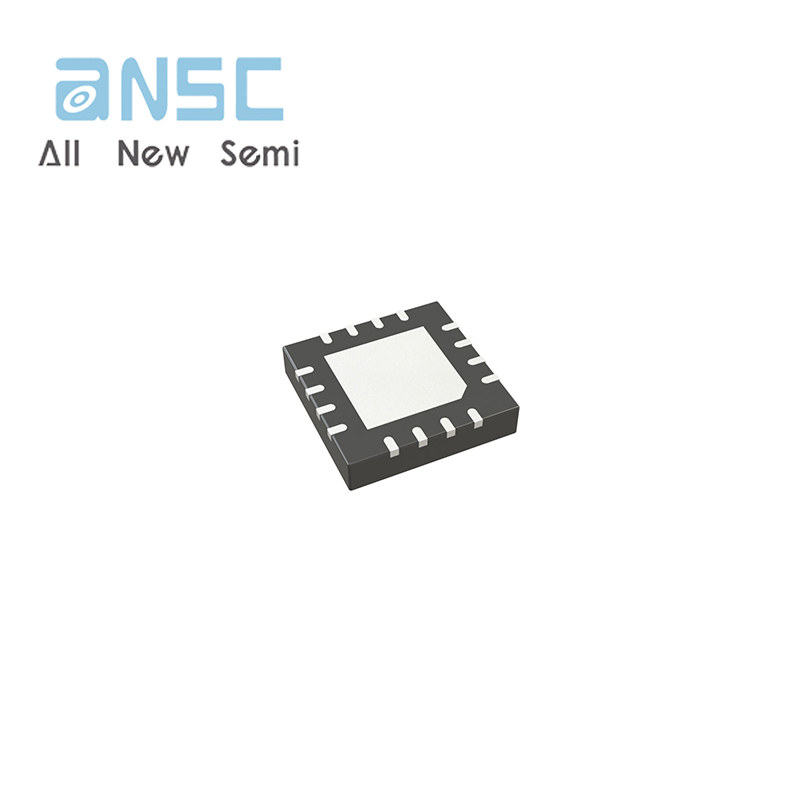

Product Photos

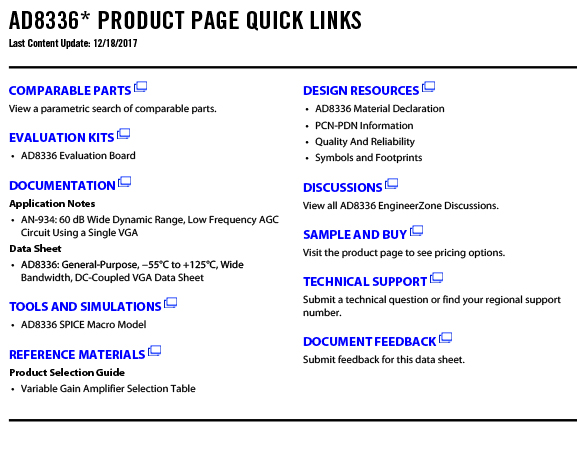

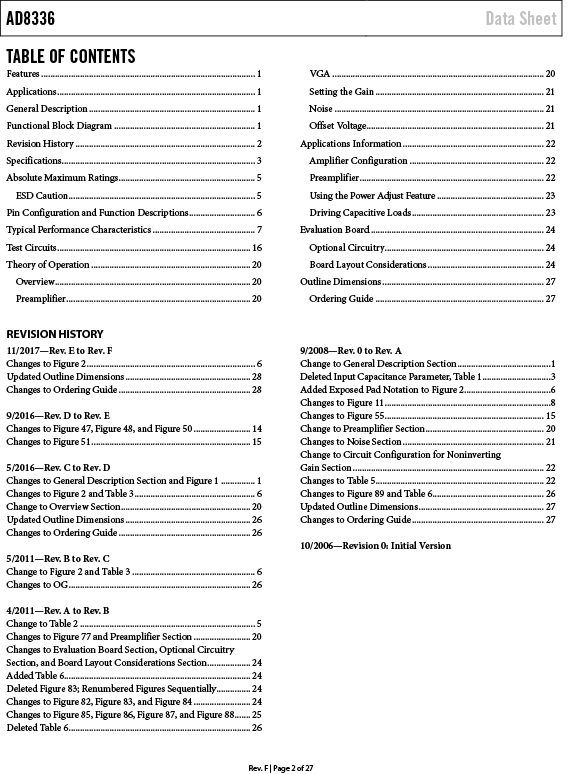

Product datasheet
For more information, please download
