Product Descriptions

TheLT?1963Aseries are lowdropoutregulatorsoptimized for fast transient response. The devices are capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to <1μA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963A regulators have very low output noise which makes them ideal for sensitive RF supply applications.

Output voltage range is from 1.21V to 20V. The LT1963A regulators are stable with output capacitors as low as 10μF. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and

reverse current protection. The devices are available in fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V and as an adjustable device with a 1.21V reference voltage. The LT1963A regulators are available in 5-lead TO-220, DD, 3-lead SOT-223, 8-lead SO and 16-lead TSSOP packages.

Product Features

? Optimized for Fast Transient Response

? Output Current: 1.5A

? Dropout Voltage: 340mV

? Low Noise: 40μVRMS (10Hz to 100kHz)

? 1mA Quiescent Current

? No Protection Diodes Needed

? Controlled Quiescent Current in Dropout

? Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V

? Adjustable Output from 1.21V to 20V

? <1μA Quiescent Current in Shutdown

? Stable with 10μF Output Capacitor*

? Stable with Ceramic Capacitors*

? Reverse Battery Protection

? No Reverse Current

? Thermal Limiting

? 5-Lead TO-220, DD, 3-Lead SOT-223 and 8-Lead SO Packages

Product Applications

? 3.3V to 2.5V Logic Power Supplies

? Post Regulator for Switching Supplies

Specifications

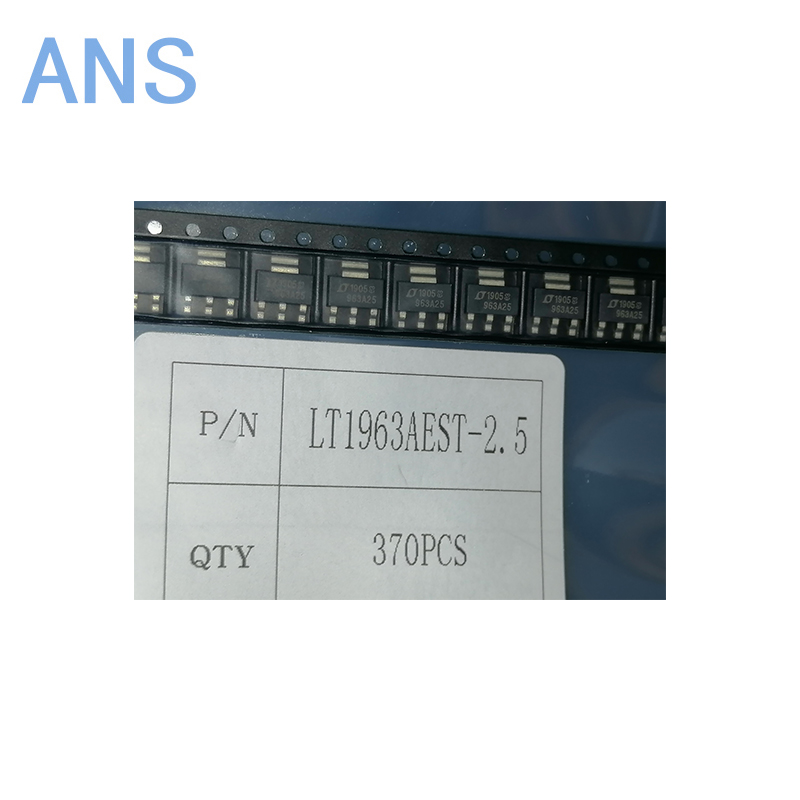

Actual product photos
