Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74ABT16260DL |
| Manufacturer | PHILIPS |
| Package Description | SSOP, SSOP56,.4 |
| Control Type | ENABLE LOW |
| Count Direction | BIDIRECTIONAL |
| Family | ABT |
| Length | 18.425 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS EXCHANGER |
| Max I(ol) | 0.064 A |
| Number of Bits | 1 |
| Number of Functions | 12 |
| Number of Ports | 3 |
| Number of Terminals | 56 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SSOP |
| Package Equivalence Code | SSOP56,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 4.9 ns |
| Propagation Delay (tpd) | 5.8 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.8 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.635 mm |
| Terminal Position | DUAL |
| Width | 7.5 mm |

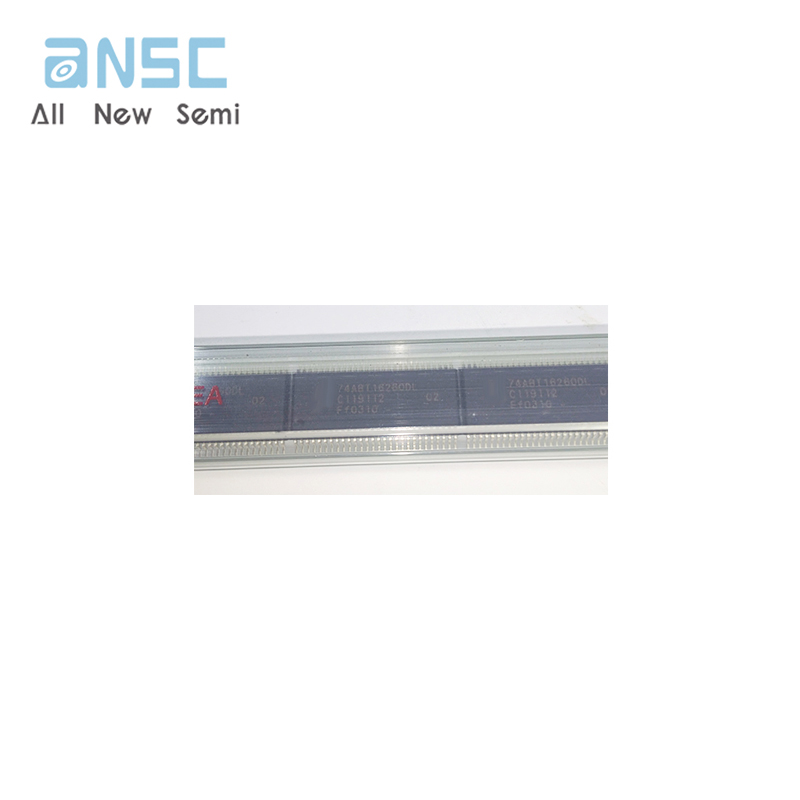

Product Photos

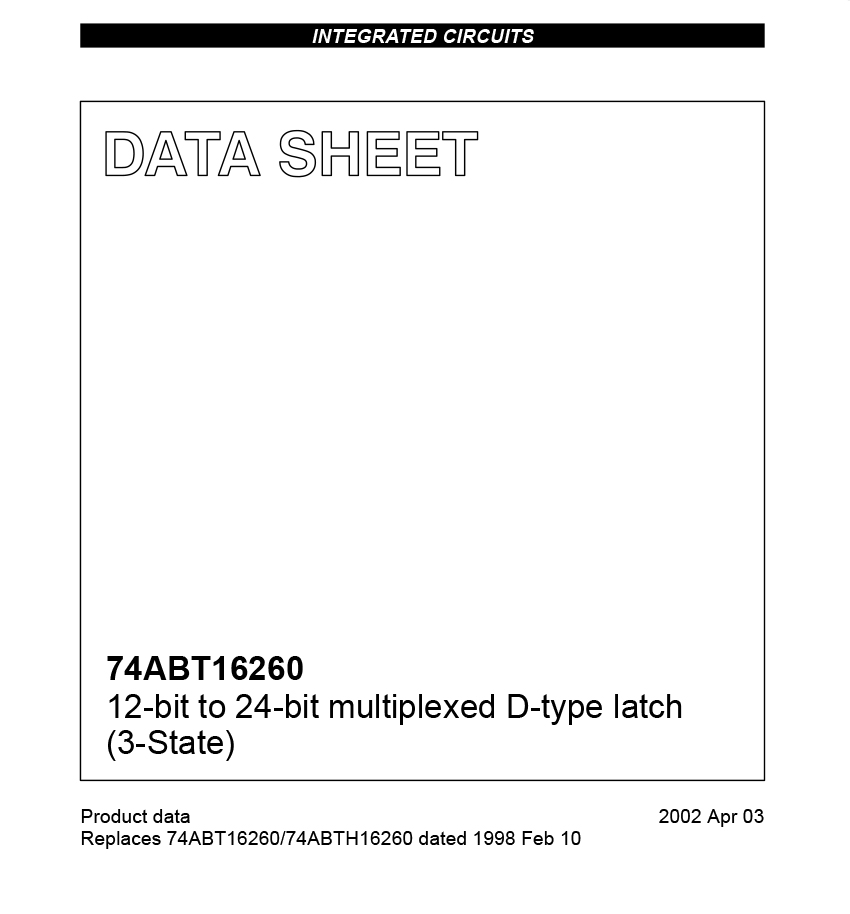

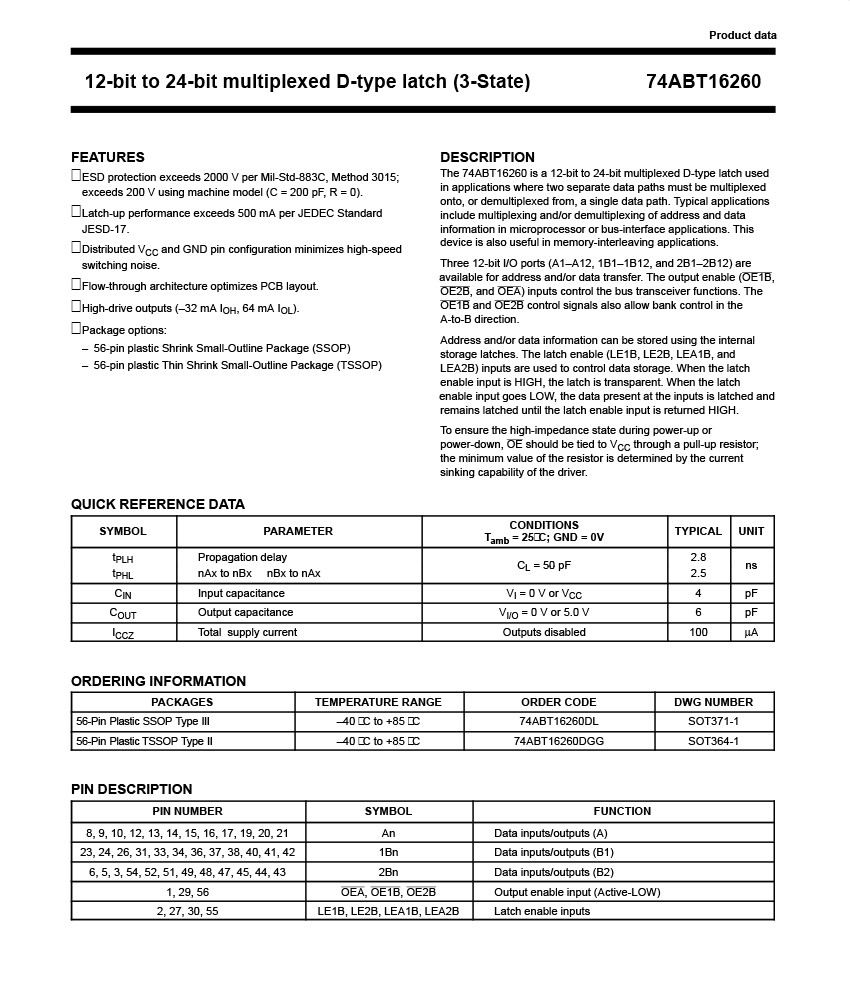

Product datasheet
For more information, please download
