Product Descriptions

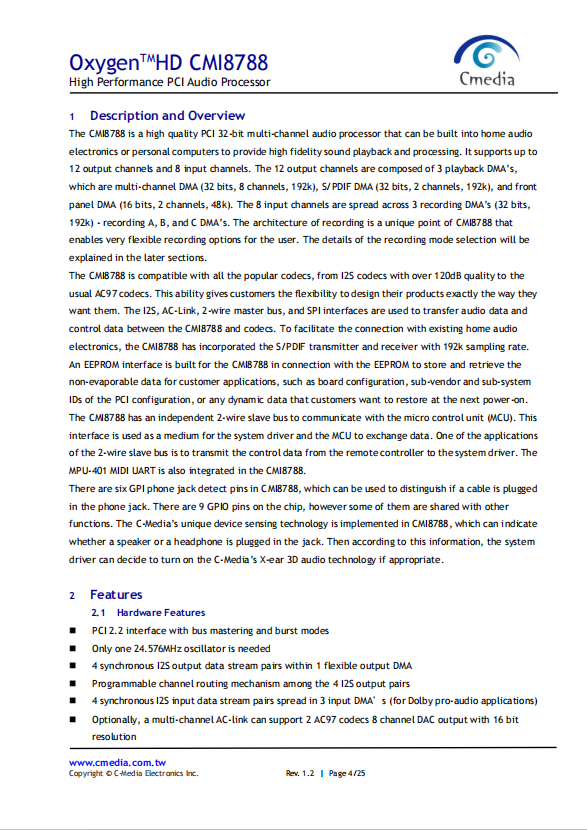

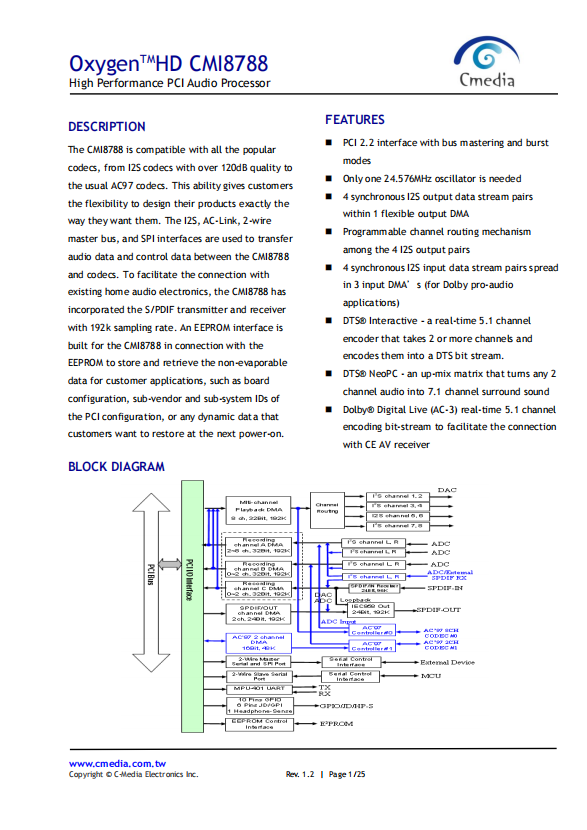

The CMI8788 is compatible with all the popular codecs, from I2S codecs with over 120dB quality to the usual AC97 codecs. This ability gives customers

the flexibility to design their products exactly the way they want them. The I2S, AC-Link, 2-wire master bus, and SPI interfaces are used to transfer audio data and control data between the CMI8788 and codecs. To facilitate the connection with existing home audio electronics, the CMI8788 has incorporated the S/PDIF transmitter and receiver with 192k sampling rate. An EEPROM interface is built for the CMI8788 in connection with the EEPROM to store and retrieve the non-evaporable data for customer applications, such as board configuration, sub-vendor and sub-system IDs of the PCI configuration, or any dynamic data that customers want to restore at the next power-on.

Product Products

? PCI 2.2 interface with bus mastering and burst modes

? Only one 24.576MHz oscillator is needed

? 4 synchronous I2S output data stream pairs within 1 flexible output DMA

? Programmable channel routing mechanism among the 4 I2S output pairs

? 4 synchronous I2S input data stream pairs spread in 3 input DMA’s (for Dolby pro-audio applications)

? DTS? Interactive – a real-time 5.1 channel encoder that takes 2 or more channels and encodes them into a DTS bit stream.

? DTS? NeoPC - an up-mix matrix that turns any 2 channel audio into 7.1 channel surround sound

? Dolby? Digital Live (AC-3) real-time 5.1 channel encoding bit-stream to facilitate the connectionwith CE AV receiver

 Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
