Product Details
|
GENERAL DESCRIPTION The XC6209/XC6212 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor.
Maximum Output Current : 150mA (300mA=XC6209E to H types) Dropout Voltage : 60mV @ 30mA 200mV @ 100mA Minimum Operating Voltage : 2.0~10.0V Output Voltage Range : 0.9V ~ 6.0V (50mV increment) Highly Accurate : ± 2% (VOUT>1.5V) ± 30mV (VOUT≦ 1.5V) Low Power Consumption : 25μ A (TYP.) Stand-by Current : Less than 0.1μ A (TYP.) Highly Ripple Rejection : 70dB (10kHz) Operating Temperature Range : -40℃ ~ +85℃ Low ESR Capacitor : Ceramic capacitor compatible Process : CMOS Built-In Circuit : Current Limit Circuit Ultra Small Packages : SOT-25 USP-6B (XC6209) SOT-89-5 (XC6209)
● Mobile phones, Cordless phones ● Wireless communication equipment ● Portable games ● Cameras, Video recorders ● Portable AV equipment ● Reference voltage ● Battery powered equipment |
Product Description
| Type | Description |
| ANSC PART# | ANSC - XC6209F332MR-G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 100mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) |
50 μA |
| PSRR | 70dB (10kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25-5 |
| Base Product Number | XC6209 |

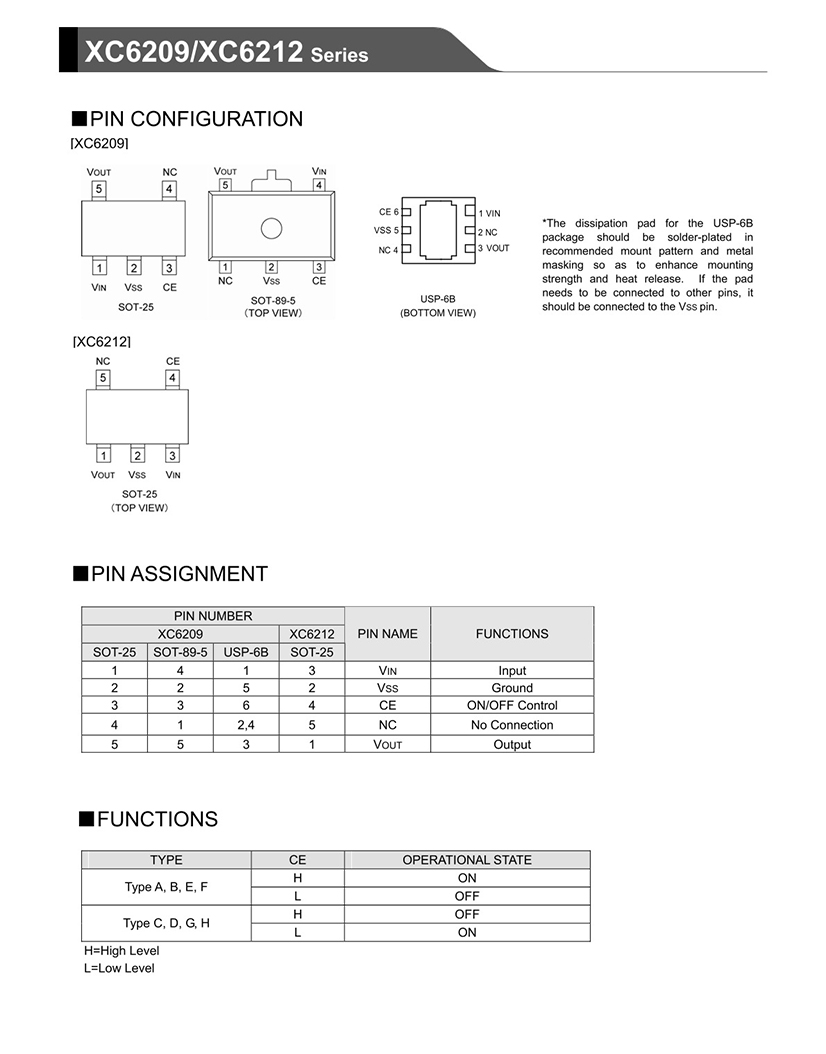

Product Photos

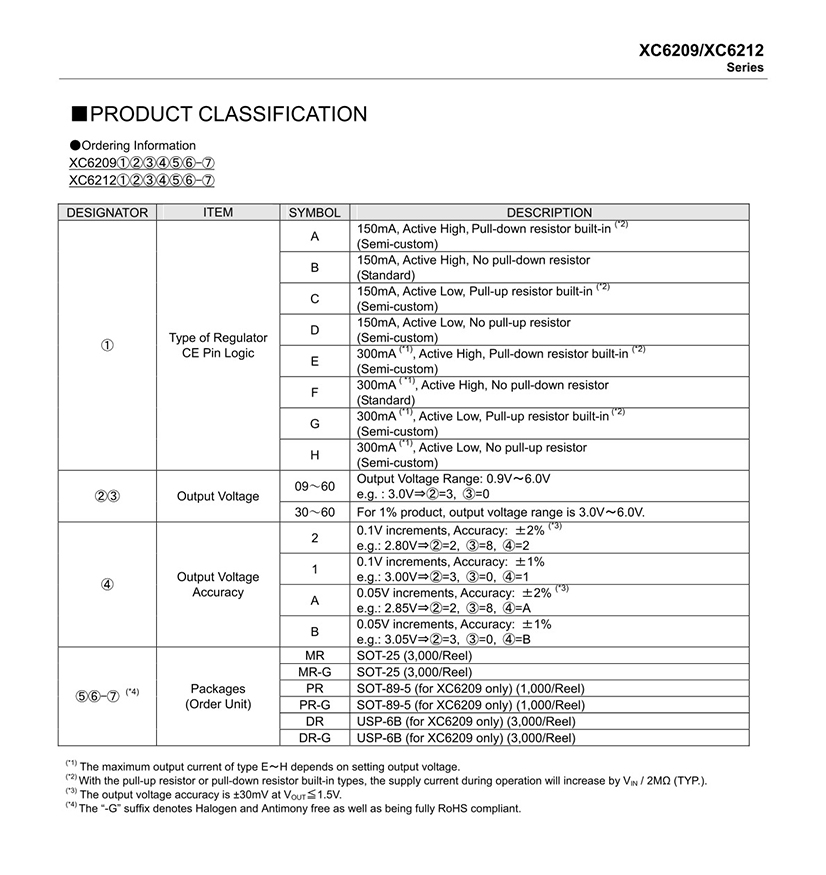

Product datasheet
For more information, please download
