| GENERAL DESCRIPTION The ADP3339 is a member of the ADP33xx family of precision, low dropout, anyCAP voltage regulators. The ADP3339 operates with an input voltage range of 2.8 V to 6 V and delivers a load current up to 1.5 A. The ADP3339 stands out from the conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages and higher output current than its competition. Its patented design requires only a 1.0 μF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. FEATURES High accuracy over line and load: ±0.9% @ 25°C,±1.5% over temperature Ultralow dropout voltage: 230 mV (typ) @ 1.5 A Requires only CO = 1.0 μF for stability anyCAP = stable with any type of capacitor (including MLCC) Current and thermal limiting Low noise 2.8 V to 6 V supply range –40°C to +85°C ambient temperature range SOT-223 package APPLICATIONS Notebook, palmtop computers SCSI terminators Battery-powered systems PCMCIA regulators Bar code scanners Camcorders, cameras |
Product Description
| Type | Description |

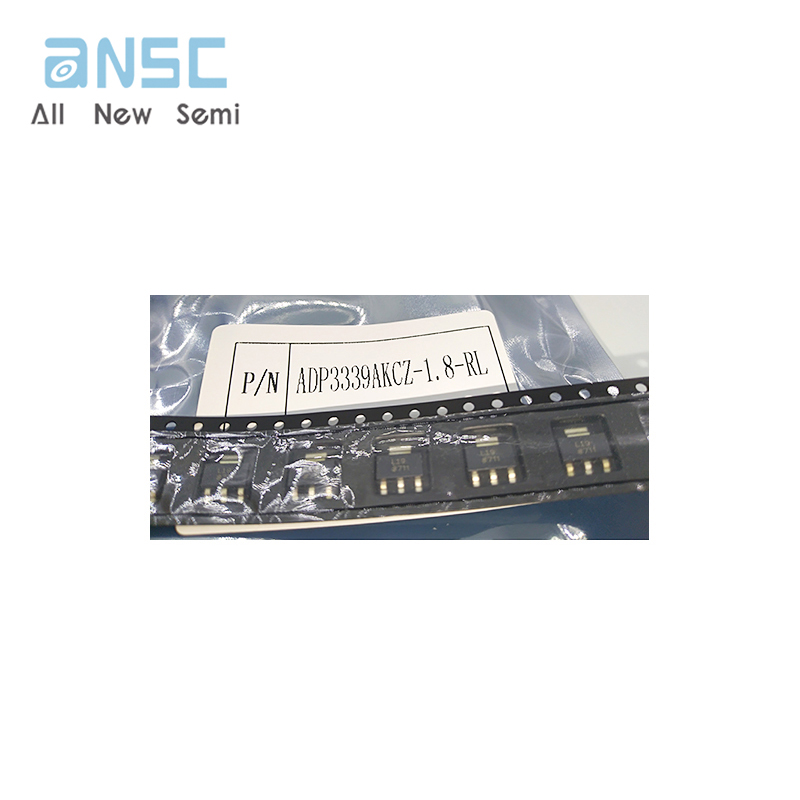

| ANSC PART# | ANSC - ADP3339AKCZ-1.8-RL |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | anyCAP? |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.48V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 200 μA |
| Current - Supply (Max) | 40 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | ADP3339 |
