Product Description
| Type# | Description |
| ANSC PART# | ANSC - AM2617PC |
| Ihs Manufacturer | ADVANCED MICRO DEVICES INC |
| Part Package Code | DIP |
| Package Description | PLASTIC, DIP-14 |
| Pin Count | 14 |
| Input Characteristics | SCHMITT TRIGGER |
| Interface IC Type | LINE RECEIVER |
| Interface Standard | EIA-232-C |
| Length | 19.304 mm |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 75 °C |
| Operating Temperature-Min | |
| Output Characteristics | OPEN-COLLECTOR |
| Output Low Current-Max | 0.01 A |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 85 ns |
| Receiver Number of Bits | 4 |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 26 mA |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

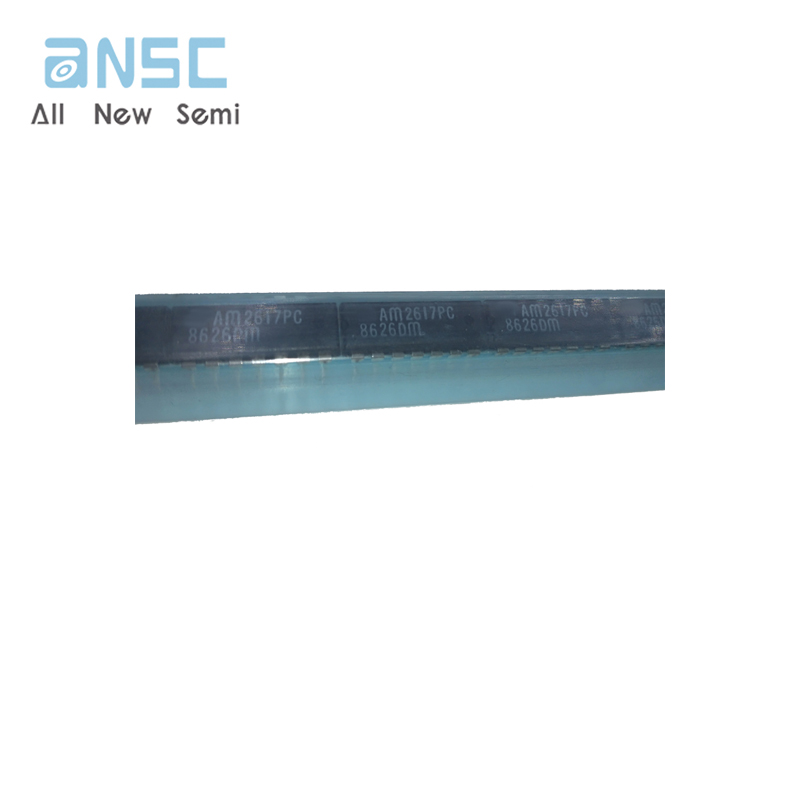

Product Photos

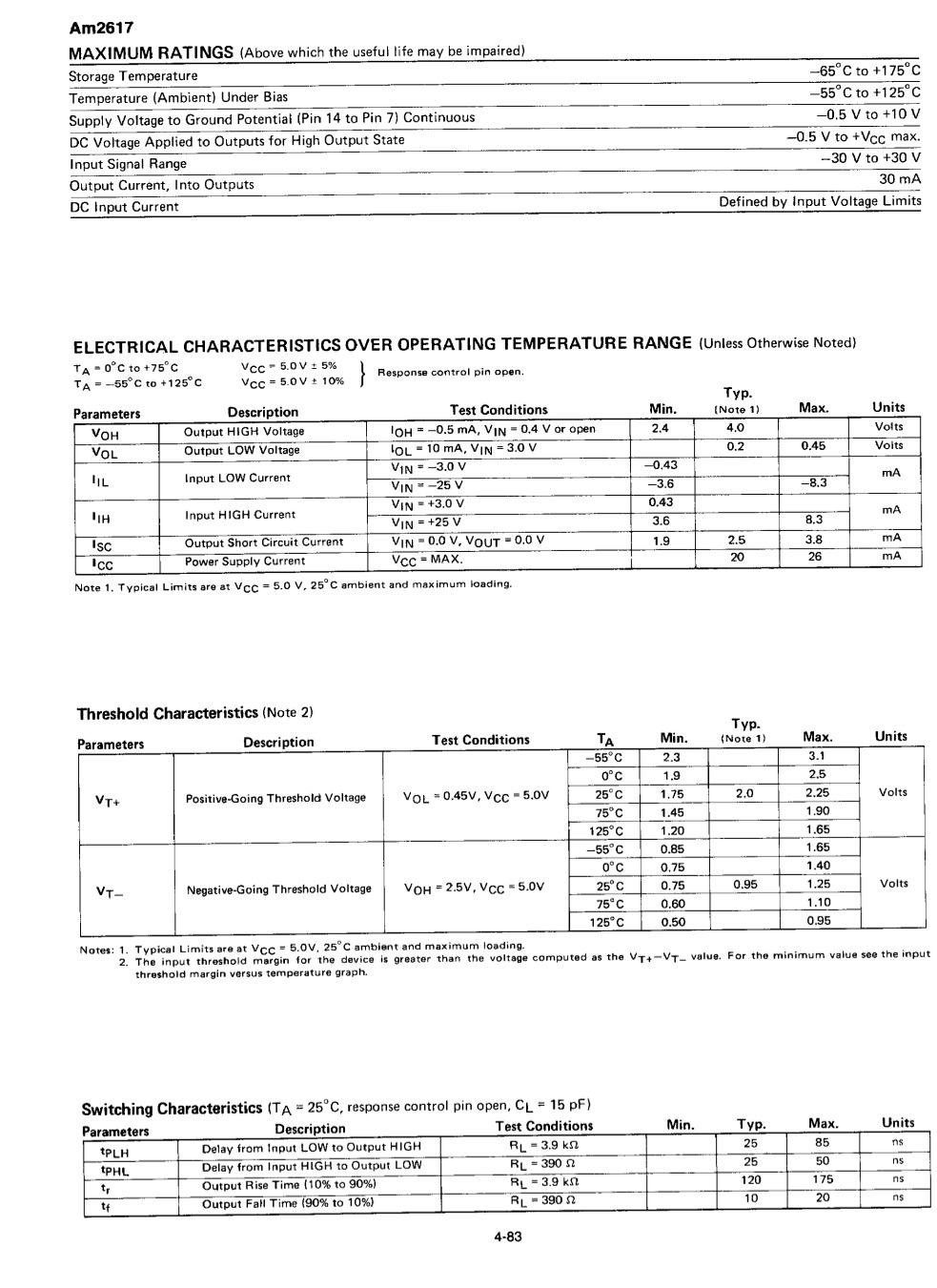

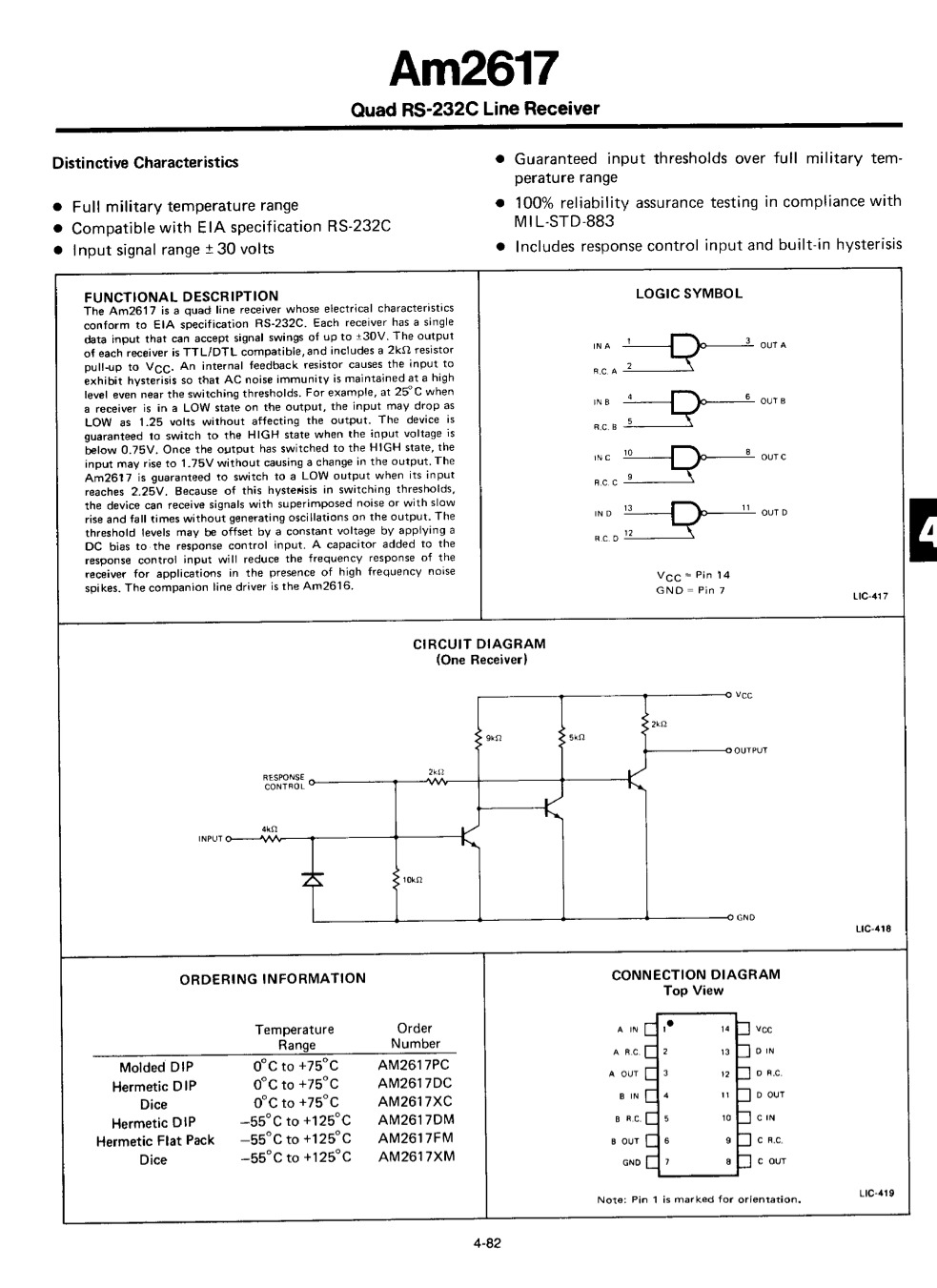

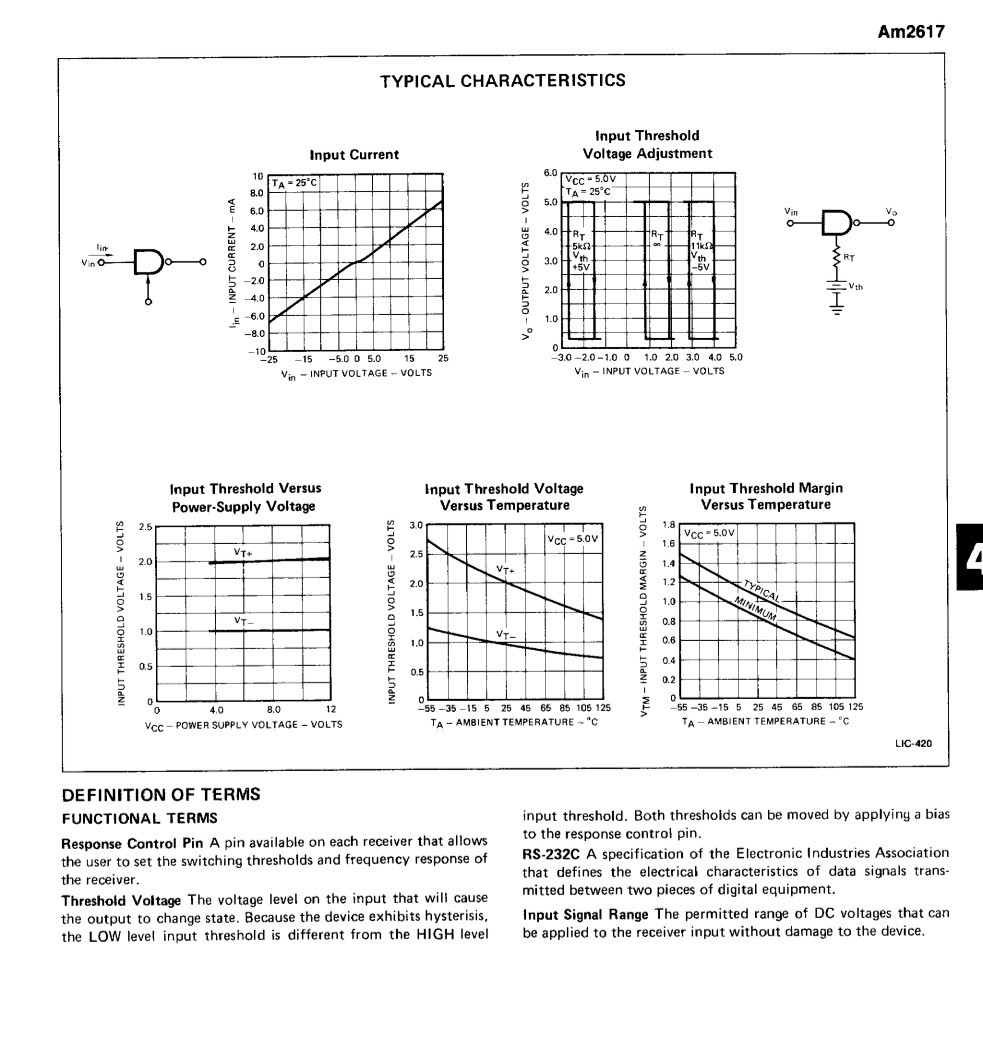

Product datasheet
