Product Details
LMV932MM/NOPB Overview
Op amp is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case. Op amps are General Purpose types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 8. Linear amplifier has a total of 8 pins. Please take in mind that op amp should be run at 2.7V. Linear amplifier includes 8 pins. Regarding input offset voltage, buffer amplifier rates 5.5mV voltage. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~125°C. Operational amplifier can operate supply current at 116μA. The voltage gain should stay at 100dB. Instrumentation amplifier has 2 channels on it. On the output type, there are Rail-to-Rail different types of op amps. The operating supply voltage of instrumentation amplifier is rated 3V voltage. It is used TR to pack the op amps.
LMV932MM/NOPB Features
8 Pins
supply voltage of 2.7V
100dB voltage gain
Output Type: Rail-to-Rail
LMV932MM/NOPB Applications
There are a lot of Texas Instruments
LMV932MM/NOPB Instrumentational OP Amps applications.
Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Product Description
Texas Instruments LMV932MM/NOPB
OP Amps 2.7V 50 dB 100mA per Channel Instrumentational OP Amps 8 Pins
2 Channels 100mA per Channel 14nA 50 dB Instrumentational OP Amps 0.05μA 3V 1.8V~5.5V ±0.9V~2.75V LMV932 8 Pins 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
ANSC PART# | ANSC- LMV932MM/NOPB |
Part# | LMV932MM/NOPB |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | 8-VSSOP |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.42V/碌s |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 14 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 116碌A(chǔ) (x2 Channels) |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40擄C ~ 125擄C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LMV932 |
Actual image of the product

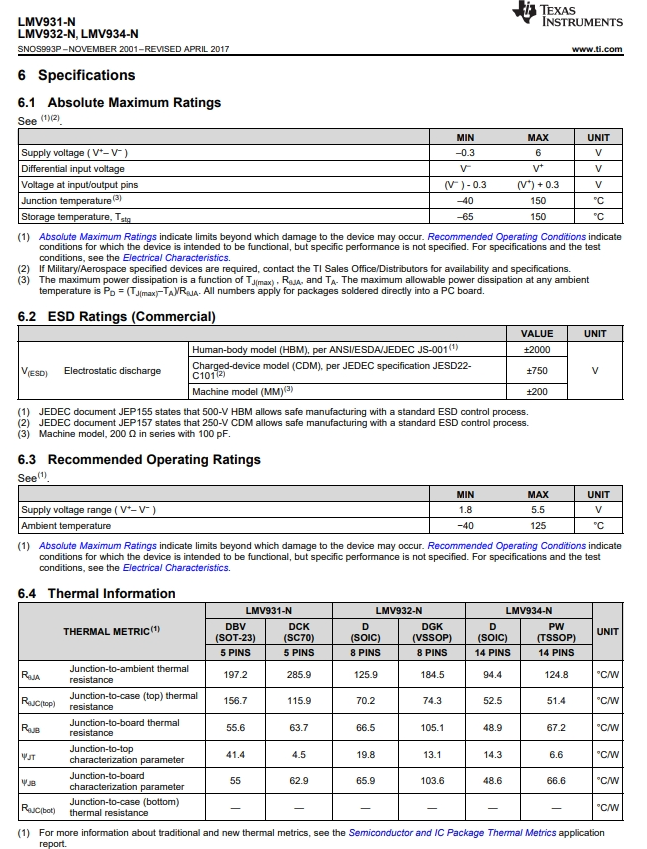

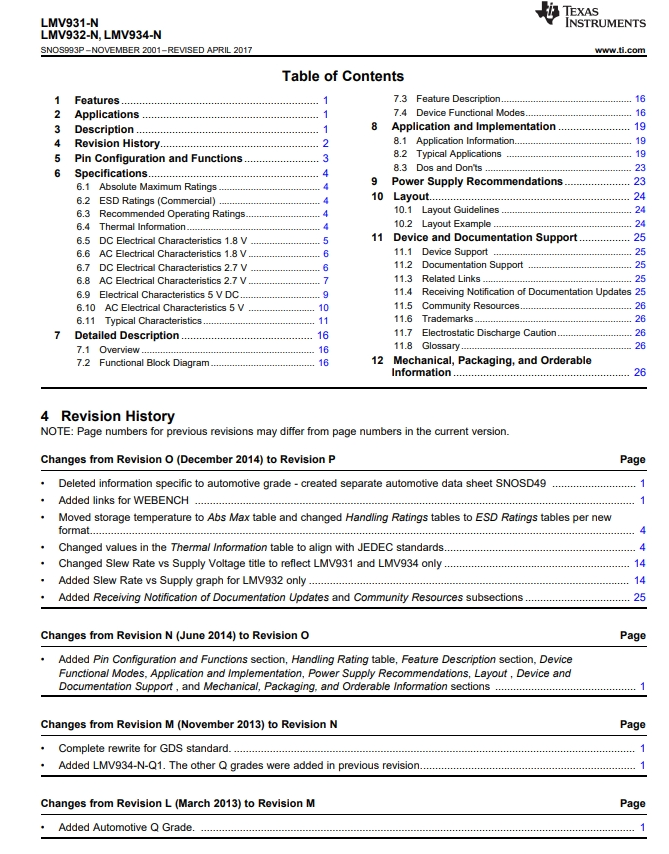

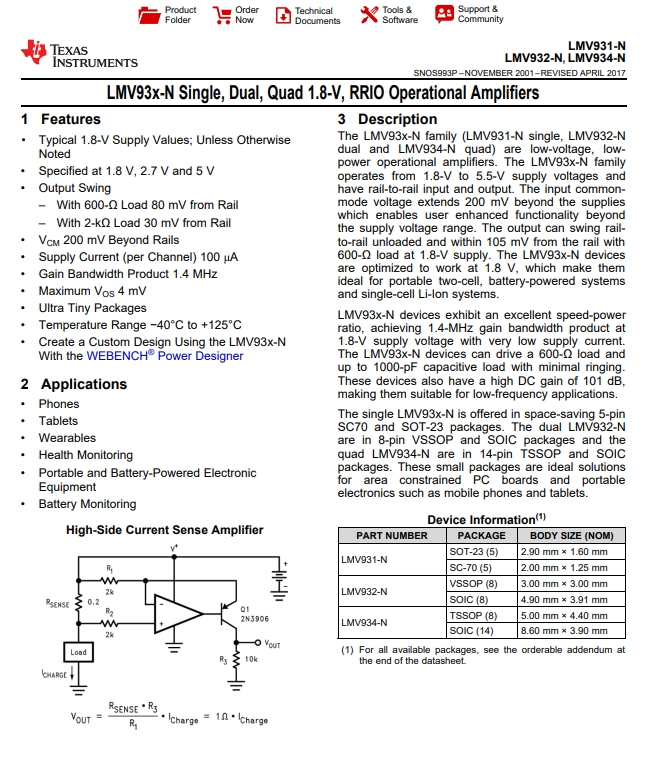

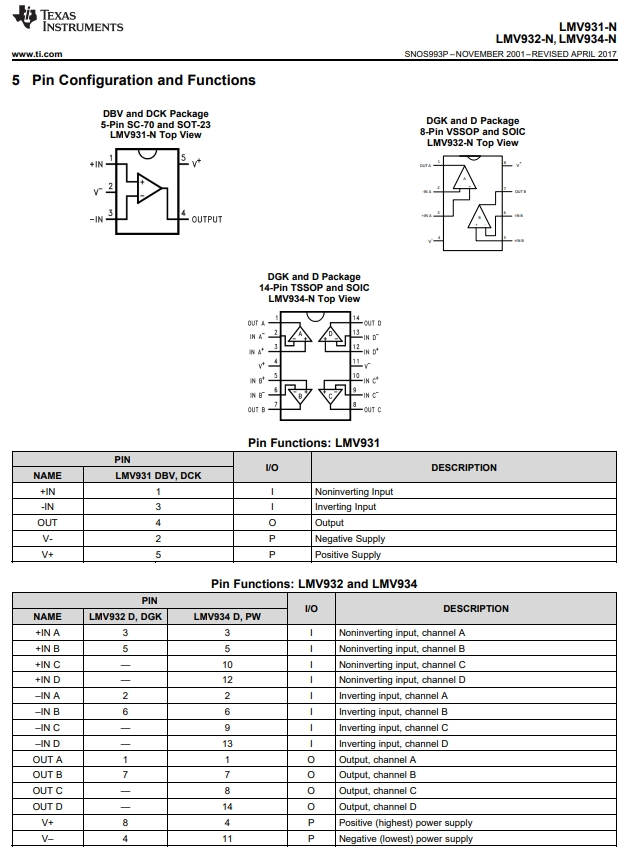

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
于包裝.jpg)
Multiple product supply
于產(chǎn)品.jpg)
Welcome to visit our company
Warehouse Real Shot
