Product Descriptions
The MAX6338 quad voltage monitor is capable of monitoring up to four supplies without any external components. A variety of factory-trimmed threshold voltages and supply tolerances are available to optimize the MAX6338 for specific applications. The selection includes input options for monitoring +5.0V, +3.3V, +3.0V, +2.5V, +1.8V, and -5.0V voltages. An additional high-input impedance comparator option can be used as an adjustable voltage monitor, general-purpose comparator, or digital level translator.
Each of the monitored voltages is available with trip thresholds to support power-supply tolerances of either 5 PERCENT or 10 PERCENT below the nominal voltage. An internal bandgap reference ensures accurate trip thresholds across the extended (-40°C to +85°C) operating temperature range.
The MAX6338 consumes 25μA (typ) supply current and operates with supply voltages from +2.5V to +5.5V. An internal undervoltage lockout circuit forces all four digital outputs low when VCC drops below the minimum operating voltage. The four digital outputs all have weak internal pull-ups to VCC, allowing wire-ORed connection. Each input threshold voltage has an independent output. The MAX6338 is available in a 10-pin μMAX? package.
Product Features
? Monitors Four Voltages (Factory Programmed or User Adjustable)
+5.0V, +3.3V, +3.0V, +2.5V, +1.8V, -5.0V (nominal) or User-Adjustable Settings
? Low 25μA Supply Current
? Four Independent, Open-Drain, Active-Low Outputs
? +2.5V to +5.5V Supply Voltage Range
? Guaranteed from -40°C to +85°C
? No External Components Required
? Small 10-Pin μMAX Package
Product Applications
Telecommunications
High-End Printers
Desktop and Notebook Computers
Data Storage Equipment
Networking Equipment
Industrial Equipment
Set-Top Boxes
Specifications
| Part# | MAX6338CUB |
| category | Integrated Circuit (IC) |
| PMIC - Monitor | |
| Analog Devices Inc./Maxim Integrated | |
| series | - |
| Package | pipe fittings |
| product status | discontinued |
| type | Multi-voltage monitor |
| Number of monitored voltages | 4 |
| Voltage - Threshold | 1.8V, 3.3V, 5V, adjustable |
| output | Open Drain or Open Collector |
| reset | low effective |
| reset timeout | Minimum <1ms |
| Operating temperature | -40°C ~ 85°C (TA) |
| installation type | Surface Mount Type |
| Package/Enclosure | 10-TFSOP, 10-MSOP (0.118", 3.00mm wide) |
| Supplier Device Packaging | 10-uMAX/uSOP |
| Basic product number | MAX6338 |

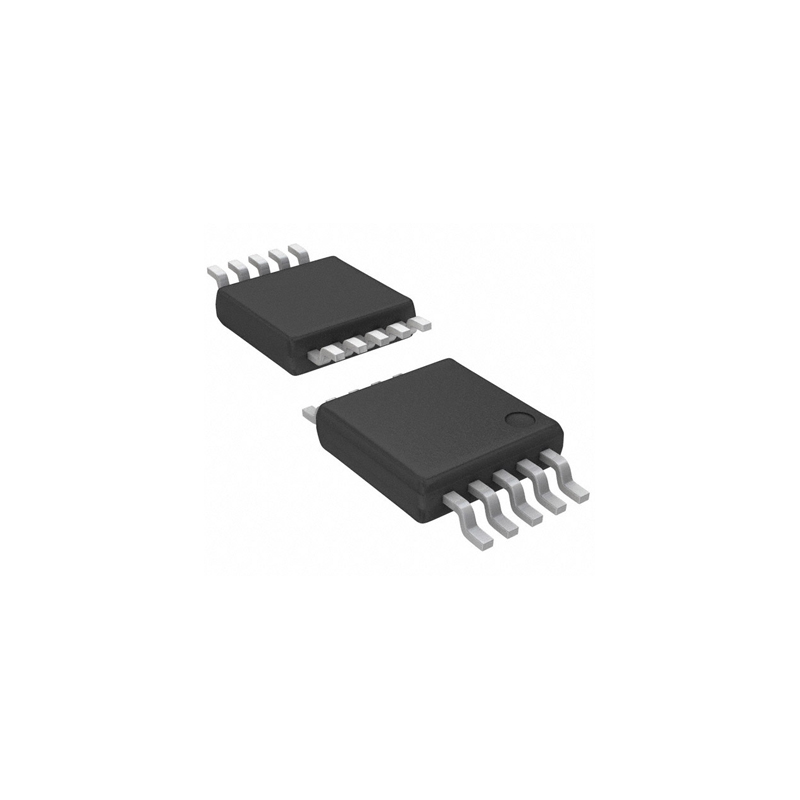

Actual product photos
