Product Descriptions
The TPS6280x device family is a step-down converter with 2.3μA typical quiescent current featuring the highest efficiency and smallest design size. TI's DCS-Control topology enables the device to operate with tiny inductors and capacitors with a switching frequency up to 4MHz. At light load conditions, the device seamlessly enters power save mode to reduce switching cycles and maintain high efficiency.
Connecting the VSEL/MODE pin to GND selects a fixed output voltage. With only one external resistor connected to VSEL/MODE pin, 16 internally set output voltages can be selected. An integrated R2D (resistor-to-digital) converter reads out the external resistor and sets the output voltage. The same device part number can be used for different applications and voltage rails just by changing a single resistor. Furthermore, the internally set output voltage provides better accuracy compared to a traditional external resistor divider network. After the device has started up, the DC/DC converter enters forced PWM mode by applying a high level at the VSEL/MODE pin. In this operating mode, the device runs at a typical 4MHz or 1.5MHz switching frequency, enabling lowest output voltage ripple and highest efficiency. The TPS6280x device series comes in a tiny 6-pin WCSP package with 0.35mm pitch.
Product Features
? 1.75V to 5.5V input voltage range
? 2.3μA operating quiescent current
? Up to 4MHz switching frequency
? 0.6A or 1A output current
? 1 PERCENT output voltage accuracy
? Selectable power save and forced PWM mode
? R2D converter for flexible VOUT setting
? 16 selectable and one fixed output voltages
– TPS62800 (4MHz): 0.4V to 0.775V
– TPS62801 (4MHz): 0.8V to 1.55V
– TPS62802 (4MHz): 1.8V to 3.3V
– TPS62806 (1.5MHz): 0.4V to 0.775V
– TPS62807 (1.5MHz): 0.8V to 1.55V
– TPS62808 (1.5MHz): 1.8V to 3.3V
? Smart enable pin
? Optimized pinout to support 0201 components
? DCS-Control topology
? Output discharge
? 100 PERCENT duty cycle operation

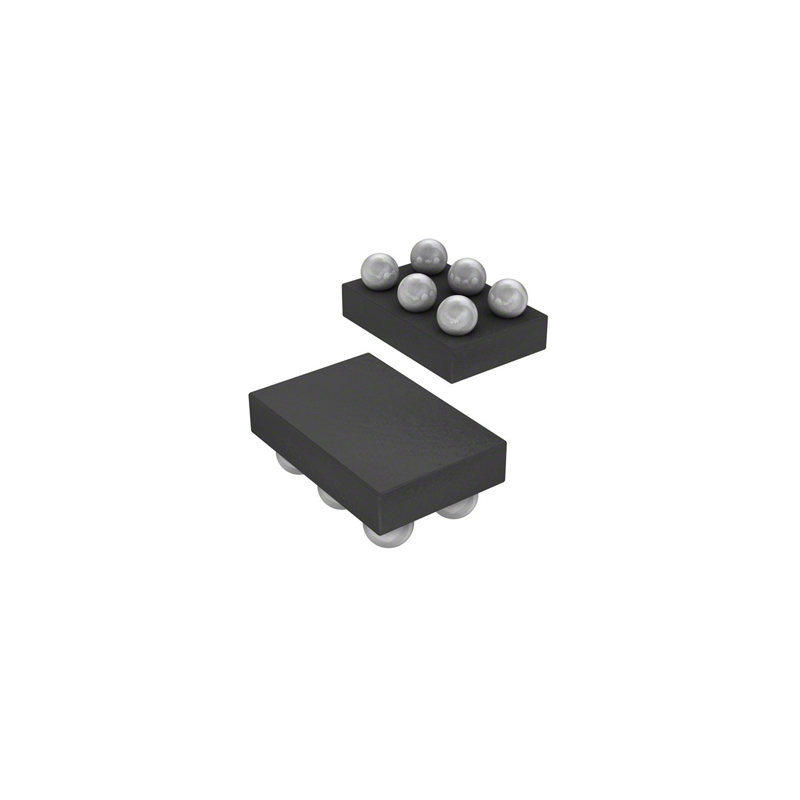

? Tiny 6-pin, 0.35mm pitch WCSP package
? Supports < 0.6mm design height
? Supports < 5mm2 design size
? Create a custom design using the:
– TPS62800 WEBENCH? Power Designer
– TPS62801 WEBENCH? Power Designer
– TPS62802 WEBENCH? Power Designer
– TPS62806 WEBENCH? Power Designer
– TPS62807 WEBENCH? Power Designer
– TPS62808 WEBENCH? Power Designer
Product Applications
? Wearable electronics, IoT applications
? 2× AA battery-powered applications
? Smartphones
Specifications
| ANSM-Part# | TPS62801YKAR |
| category | Integrated Circuit (IC) |
| PMIC - Voltage Regulators - DC DC Switching Regulators | |
| manufacturer | Texas Instruments |
| series | - |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| product status | in stock |
| Function | Buck |
| output configuration | just |
| topology | Buck |
| output type | Adjustable (fixed) |
| Number of outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (min/fixed) | 0.8V(1.2V) |
| Voltage - Output (Maximum) | 1.55V |
| Current - Output | 1A |
| Frequency - switch | 4MHz |
| Synchronous Rectifier | Yes |
| Operating temperature | -40°C ~ 125°C(TJ) |
| installation type | Surface Mount Type |
| Package/Enclosure | 6-XFBGA,DSBGA |
| Supplier Device Packaging | 6-DSBGA(1.05x0.70) |
| Basic product number | TPS62801 |
