Product Details
Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and RS-485 and ITU Recommendation V.11.
Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments
3-State Outputs
Common-Mode Output Voltage Range of
-7 V to 12 VActive-High Enable
Thermal Shutdown Protection
Positive- and Negative-Current Limiting
Operates From Single 5-V Supply
Low Power Requirements
Functionally Interchangeable With MC3487
Product Description
ANSC PART# | ANSC- SN74174N |
Part# | SN74174N |
Type： | Integrated Circuits |
Manufactor | TI |
DC | new |
Actual image of the product
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Flip Flops |
| Logic Type: | Bipolar |
| Logic Family: | TTL |
| Number of Circuits: | 1 |
| Output Type: | Single-Ended |
| Package / Case: | PDIP-16 |
| Input Type: | Single-Ended |
| Polarity: | Non-Inverting |
| Propagation Delay Time: | 35 ns |
| High Level Output Current: | - 800 uA |
| Low Level Output Current: | 16 mA |
| Supply Voltage - Min: | 4.75 V |
| Supply Voltage - Max: | 5.25 V |
| Mounting Style: | Through Hole |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Function: | D-Type Bus Interface |
| Height: | 4.57 mm |
| Length: | 19.3 mm |
| Number of Channels: | 6 |
| Number of Input Lines: | 6 |
| Number of Output Lines: | 6 |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | 0 C to + 70 C |
| Product Type: | Flip Flops |
| Reset Type: | Master Reset |
| Series: | SN74174 |
| Subcategory: | Logic ICs |
| Width: | 6.35 mm |
| Unit Weight: | 0.057419 oz |

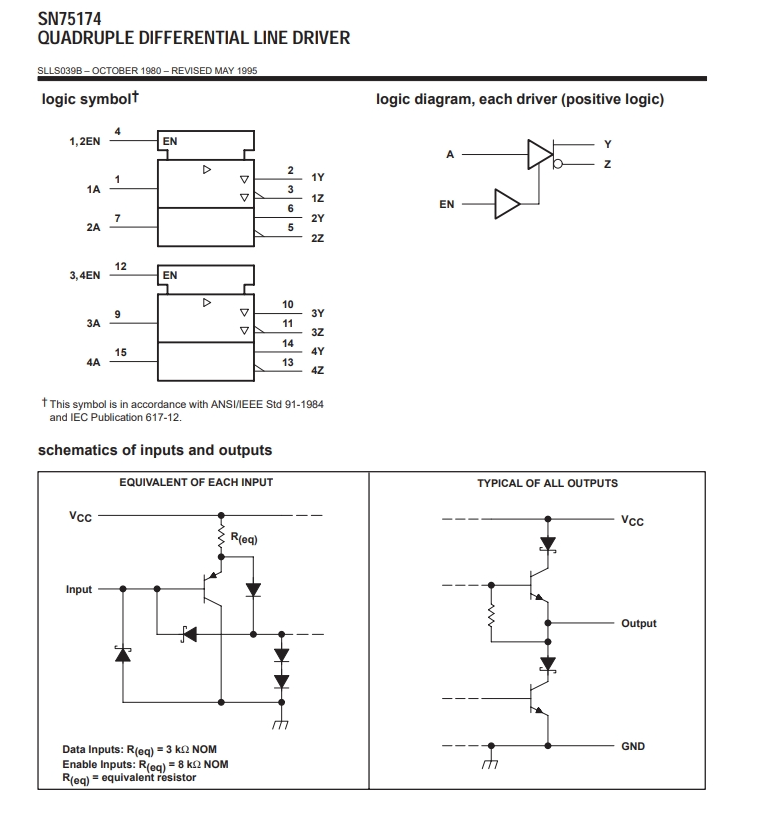

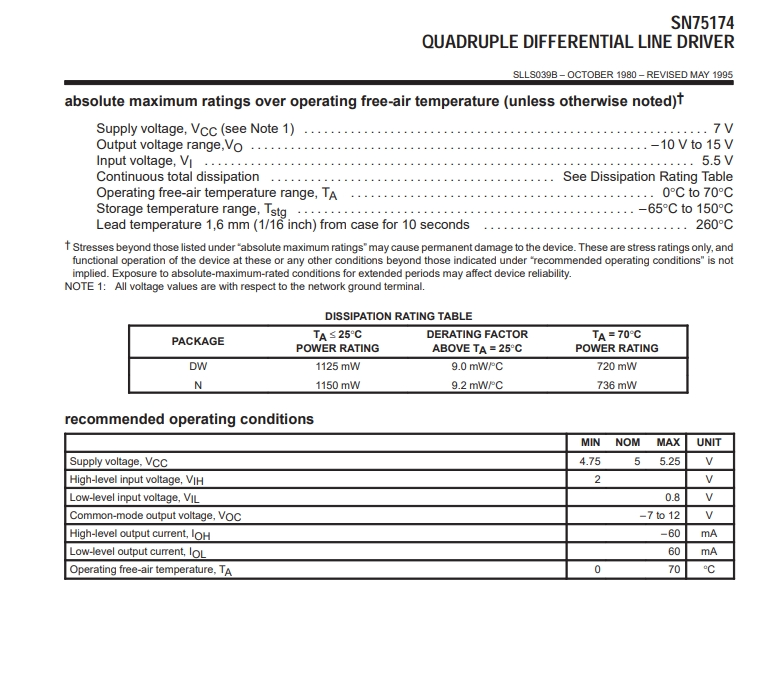

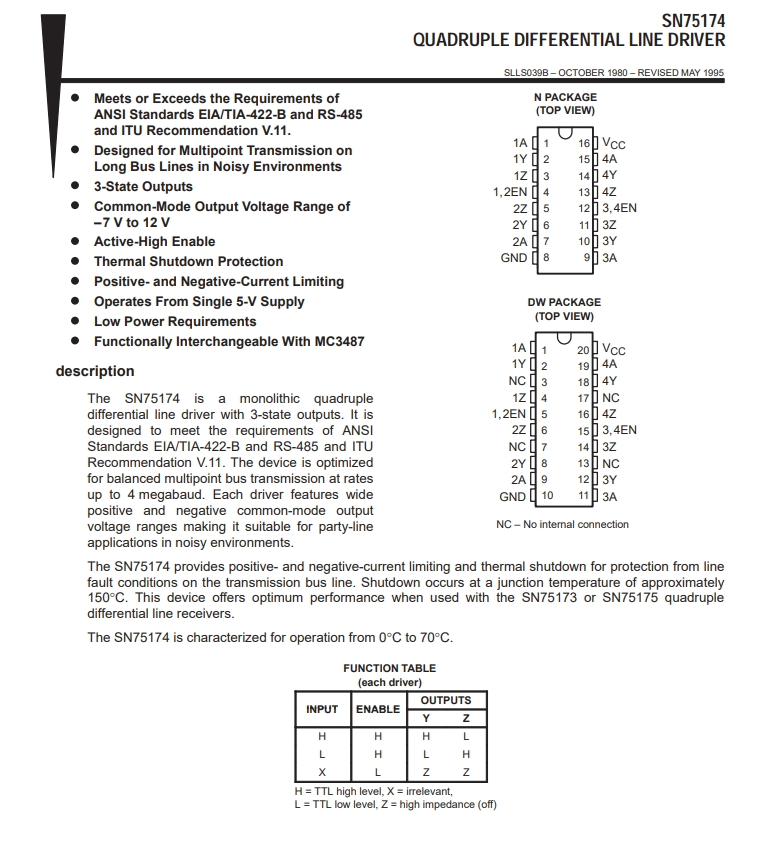

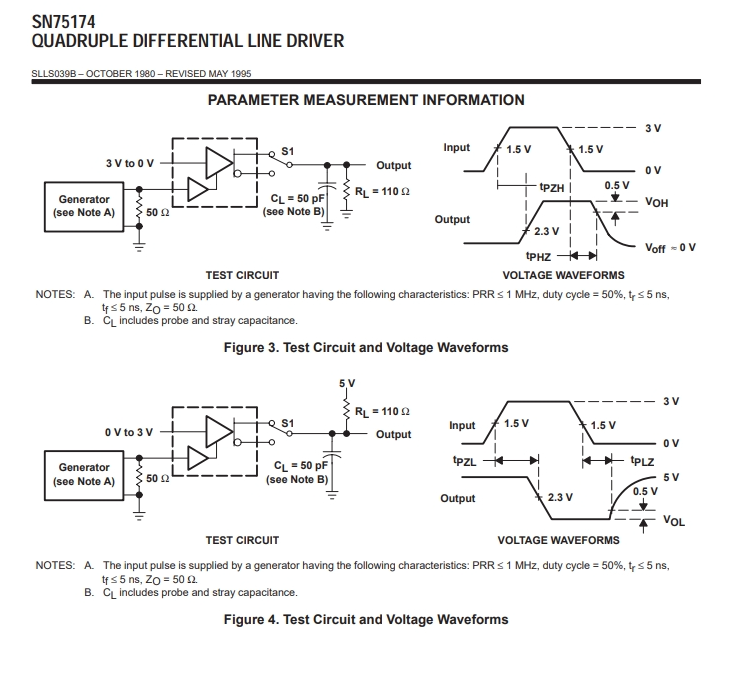

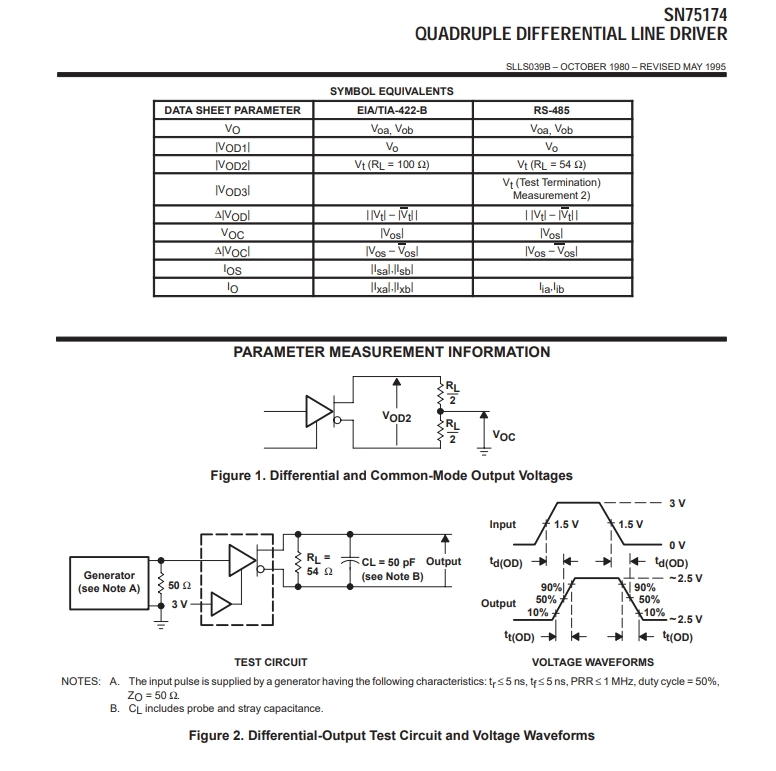

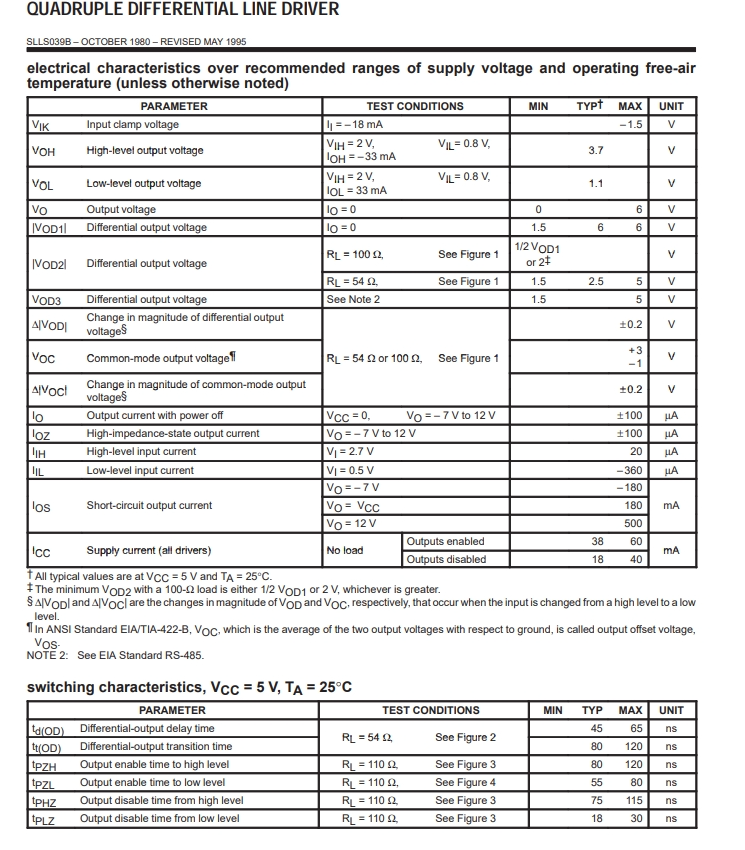

Product datasheet
For more information, please download
