Product Details

   Description:

   Texas Instruments SN75183N

Driver 2/0 Drivers/Receivers 14 Pin 14 Terminations Drivers Interface ICs

14 Terminations 5V 14 Pin SN75183 Receivers 2/0 Drivers/Receivers 2 Functions

  Quad EIA–485 Line Receiver

The Motorola SN75175 is a monolithic quad differential line receiver with three–state outputs. It is designed specifically to meet the requirements of EIA–485, EIA–422A/23A Standards and CCITT recommendations.

The device is optimized for balanced multipoint bus transmission at rates up to 10 megabits per second. It also features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common mode input voltage range of –12 V to 12 V. The SN75175 is designed for optimum performance when used with the SN75172 or SN75174 quad differential line drivers.

? Meets EIA Standards EIA–422A and EIA–423A, EIA–485

? Meets CCITT Recommendations V.10, V.11, X.26, and X.27
? Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments
? 3–State Outputs
? Common–Mode Input Voltage Range . . . –12 V to 12 V
? Input Sensitivity . . . ±200 mV
? Input Hysteresis . . . 50 mV Typ
? High Input Impedance . . . 1 EIA–485 Unit Load
? Operates from Single 5.0 V Supply
? Lower Power Requirements
? Plug–In Replacement for MC3486

Product Description

 Actual image of the product

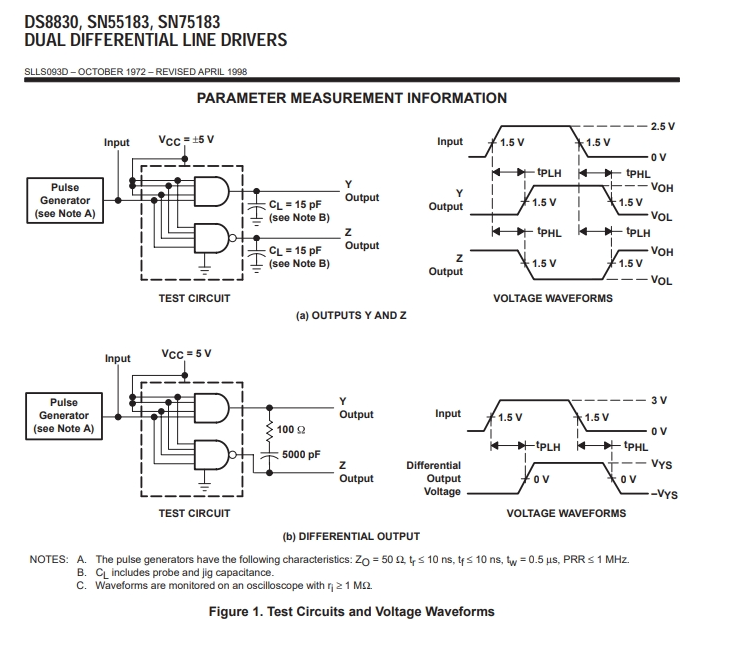

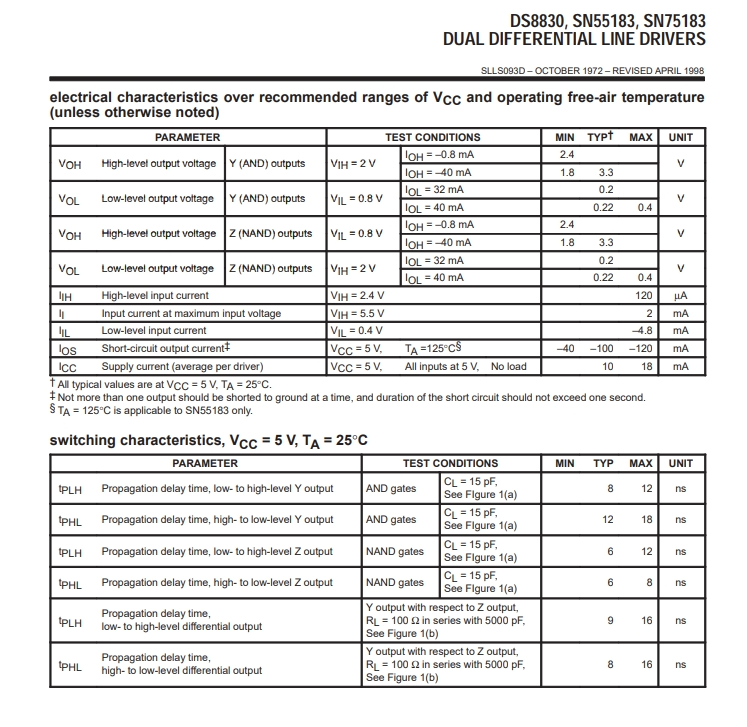

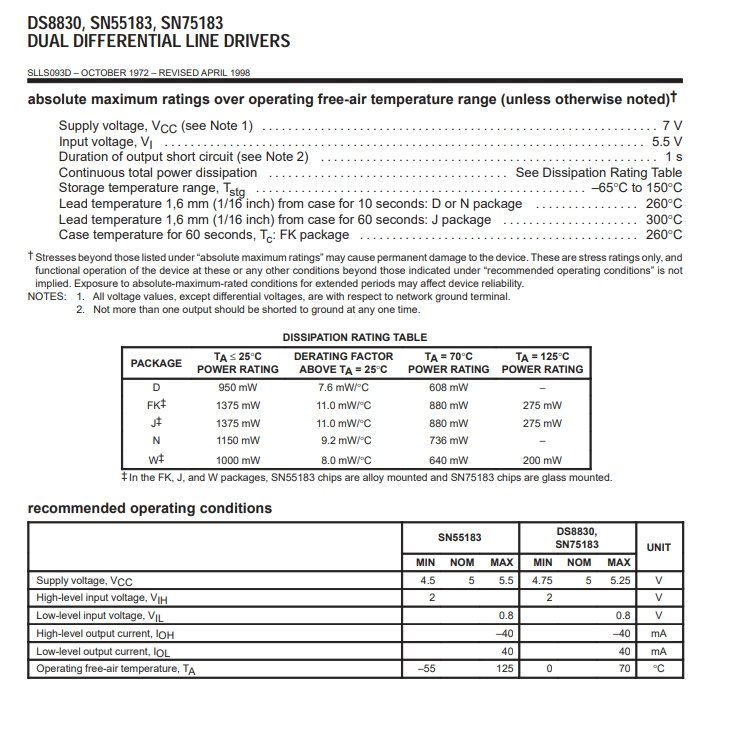

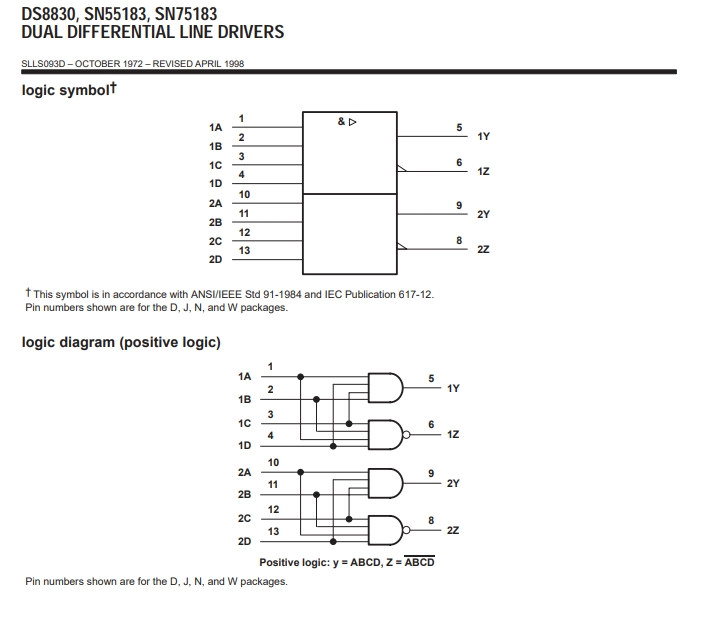

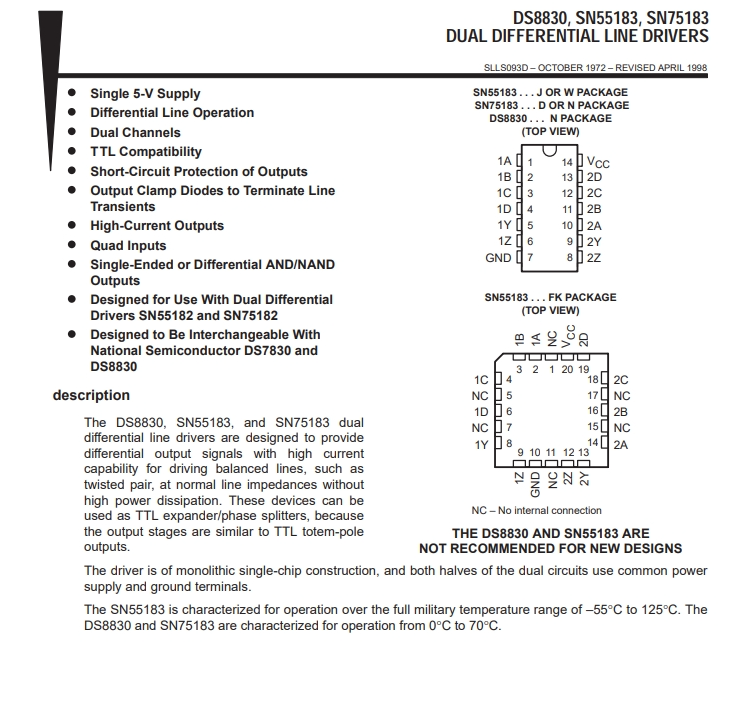

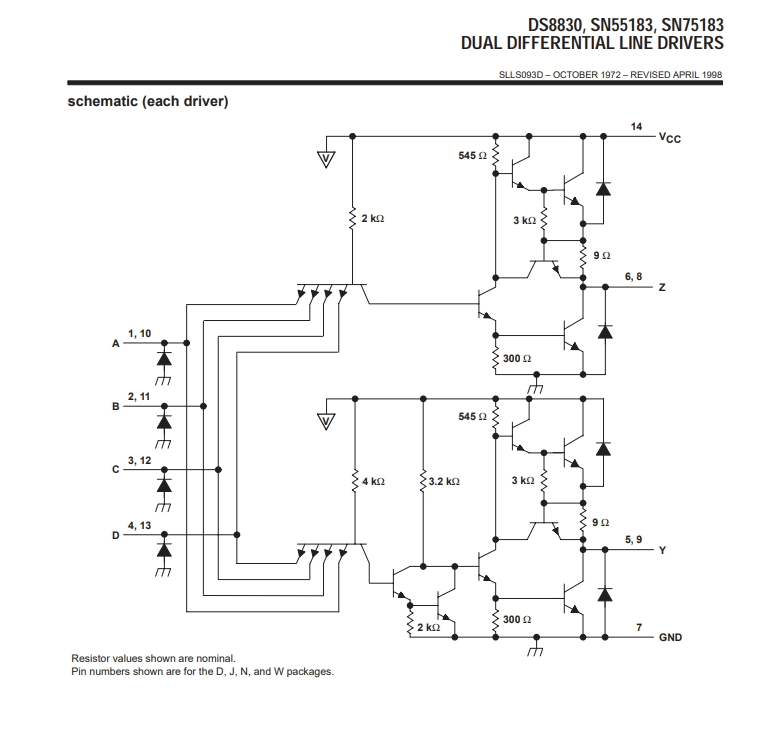

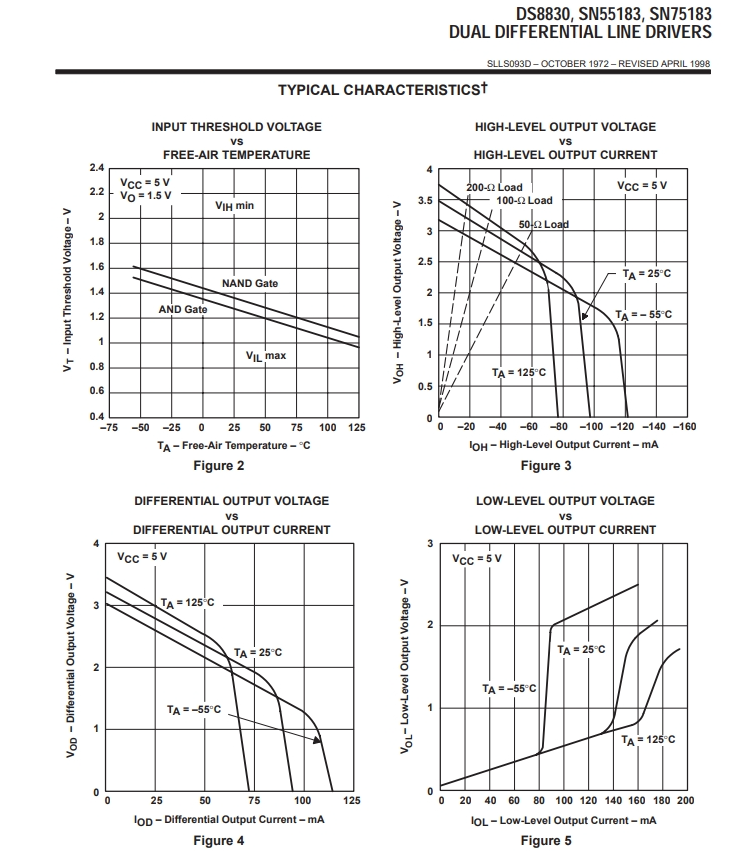

  Product datasheet

For more information, please download
