Product Details

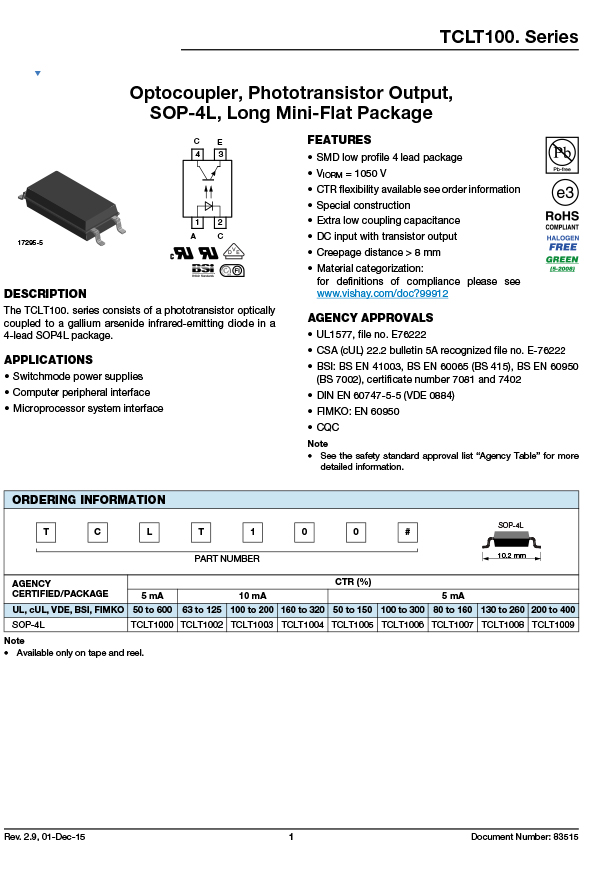

| Description The TCLT1003 is a Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It features CTR flexibility and an extra low coupling capacitance. Features Special construction DC input with transistor output Extra low coupling capacitance DC input with transistor output Application ? Switchmode power supplies ? Computer peripheral interface ? Microprocessor system interface |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -TCLT1003 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | 6μs, 5μs |
| Rise / Fall Time (Typ) | 3μs, 4.7μs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Base Product Number | TCLT1003 |

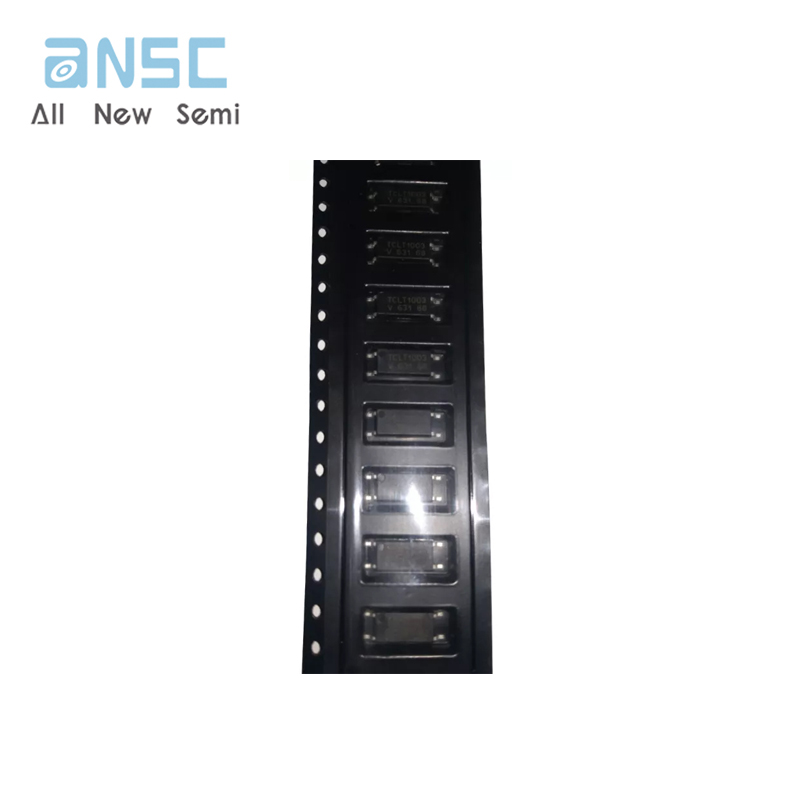

Product Photos

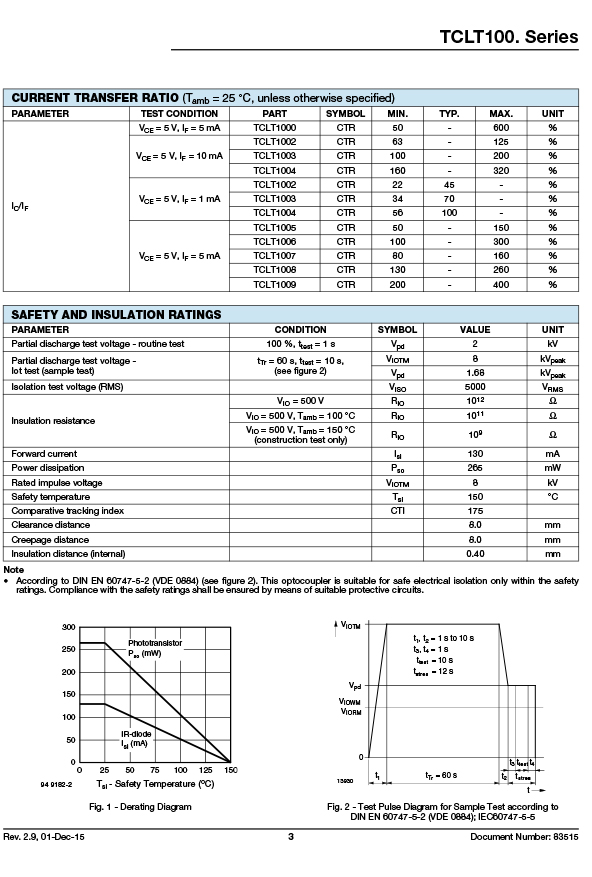

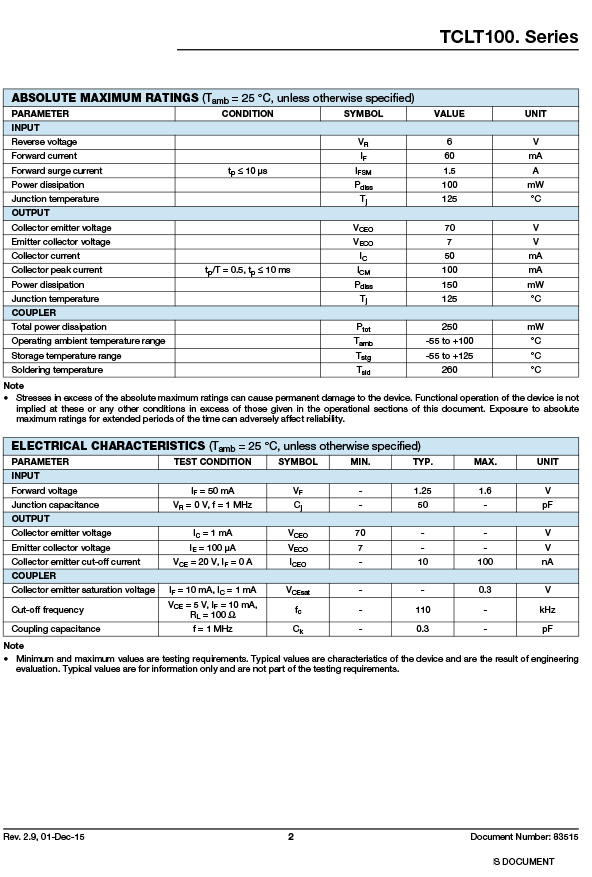

Product datasheet
