Product Details
Product Description
ANSC PART# | ANSC- SN54LS273J |
Part# | SN54LS273J |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | Texas Instruments |
| Series | 54LS |
| Packaging | Tube |
| Part Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 40 MHz |
| Max Propagation Delay @ V, Max CL | 27ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400碌A(chǔ), 4mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 27 mA |
| Operating Temperature | -55擄C ~ 125擄C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
Actual image of the product

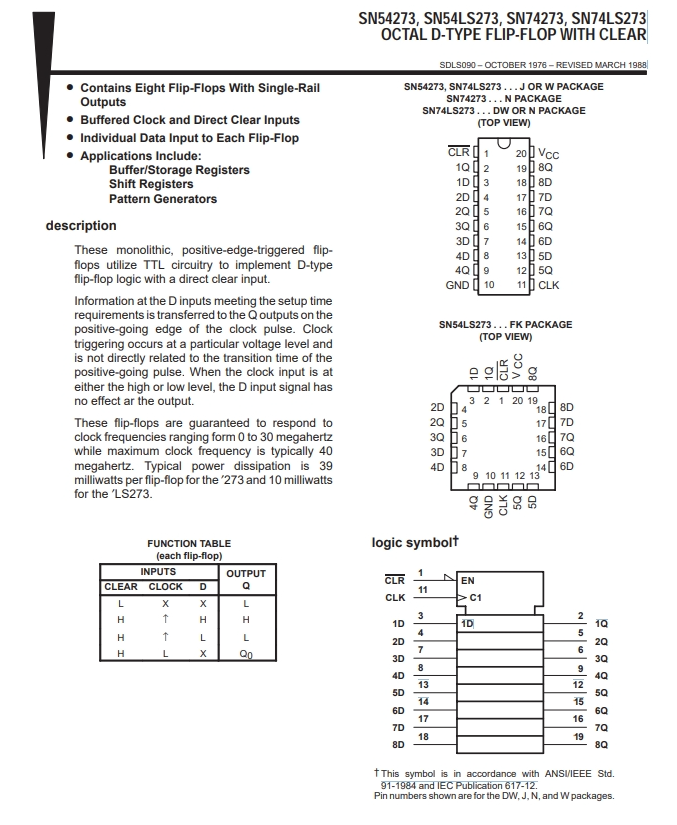

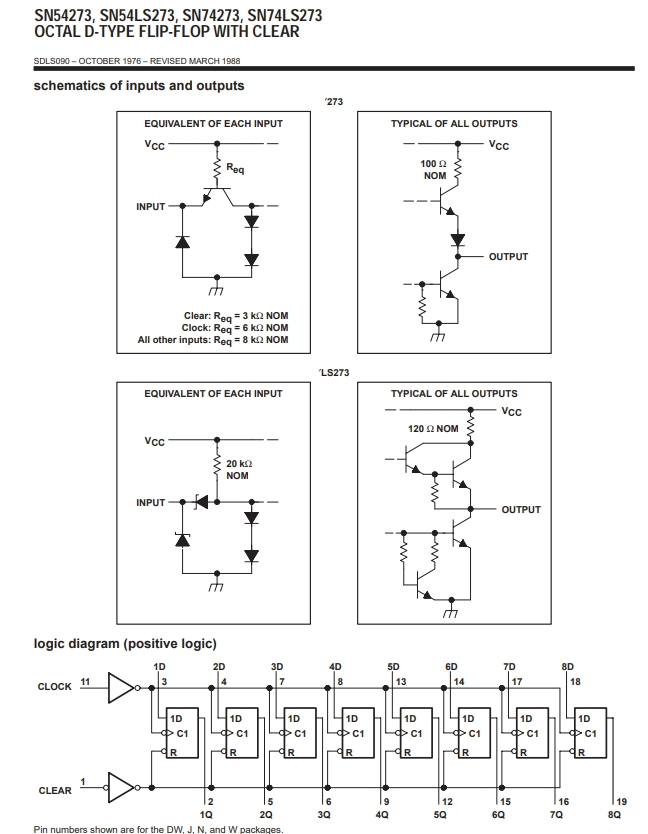

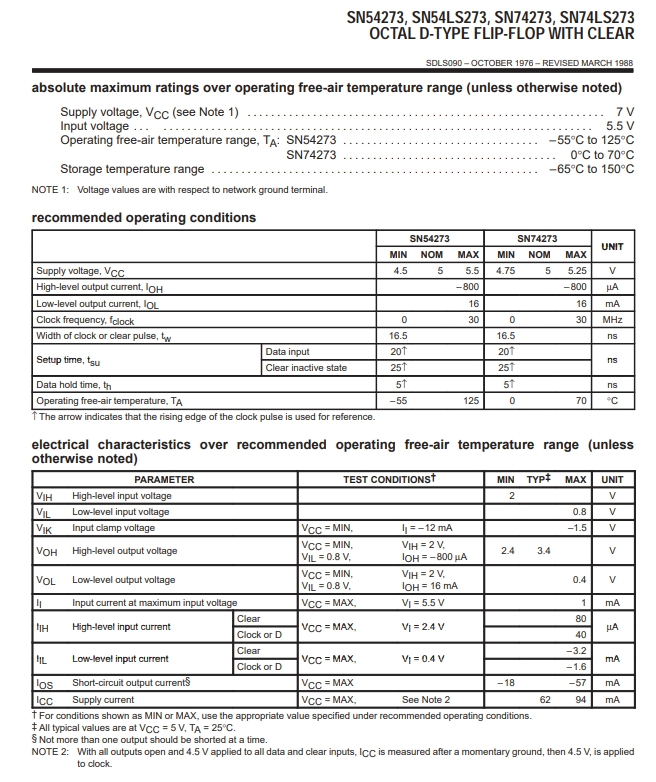

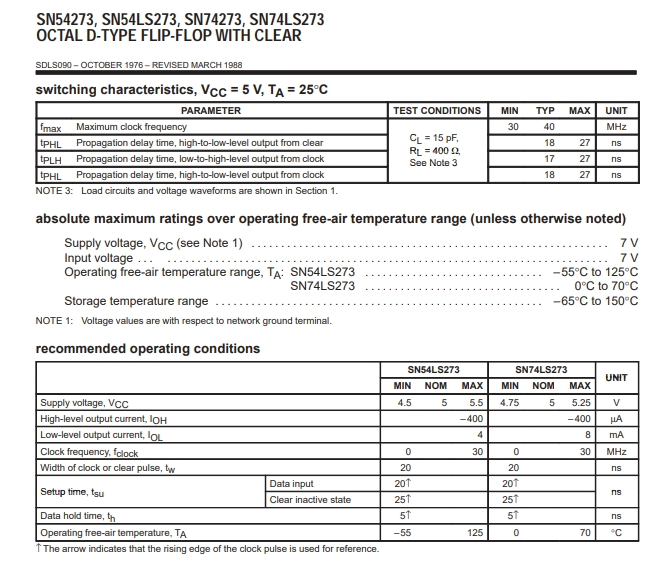

Product datasheet
For more information, please download
