SNJ54LS32J Overview
High reliability is ensured by the advanced packaging method Rail/Tube. There are several in the * series. Many applications include this logic device with a Through Hole mounting. For details about the functions of 14 pins, please refer to the datasheets. In this device, there are 1 outputs. Operation is based on 4 elements in total. Typical operating voltages for the chip are specified as being z volts when it is first manufactured. 4 gates are logical operations. In environments with temperatures above 125 °C, the device should be avoided. Test statistics indicate that the part would operate at -55 °C degrees Celsius. normally, users should not supply the device with voltage higher than 5.5 V. It is recommended to use 4.5 V as the lowest voltage for the part. TTL outputs from the part. It is capable of carrying out 4-bit operation.
SNJ54LS32J Features
4 Gates
SNJ54LS32J Applications
There are a lot of Texas Instruments
SNJ54LS32J Gates and Inverters applications.
Washing machine
Range hood
Refrigerator
VCR
Massager
Fan
Illumination
Cell phone
Laptop
Digital camera
Product Description
ANSC PART# | ANSC- SNJ54LS32J |
Part# | SNJ54LS32J |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Logic Gates |
| Logic Function: | OR |
| Number of Gates: | 4 Gate |
| Logic Family: | LS |
| Number of Input Lines: | 2 Input |
| Package / Case: | CDIP-16 |
| Number of Output Lines: | 1 Output |
| Low Level Output Current: | 4 mA |
| High Level Output Current: | - 400 uA |
| Propagation Delay Time: | 22 ns |
| Supply Voltage - Min: | 4.5 V |
| Supply Voltage - Max: | 5.5 V |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Function: | OR |
| Height: | 4.57 mm |
| Input Type: | TTL |
| Length: | 19.56 mm |
| Logic Type: | 2-INPUT NOR |
| Number of Bits: | 4 bit |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | - 55 C to + 125 C |
| Output Type: | TTL |
| Product: | Single-Function Gates |
| Product Type: | Logic Gates |
| Series: | SN54LS32 |
| Factory Pack Quantity: | 25 |
| Subcategory: | Logic ICs |
| Width: | 6.92 mm |
| Unit Weight: | 0.042329 oz |

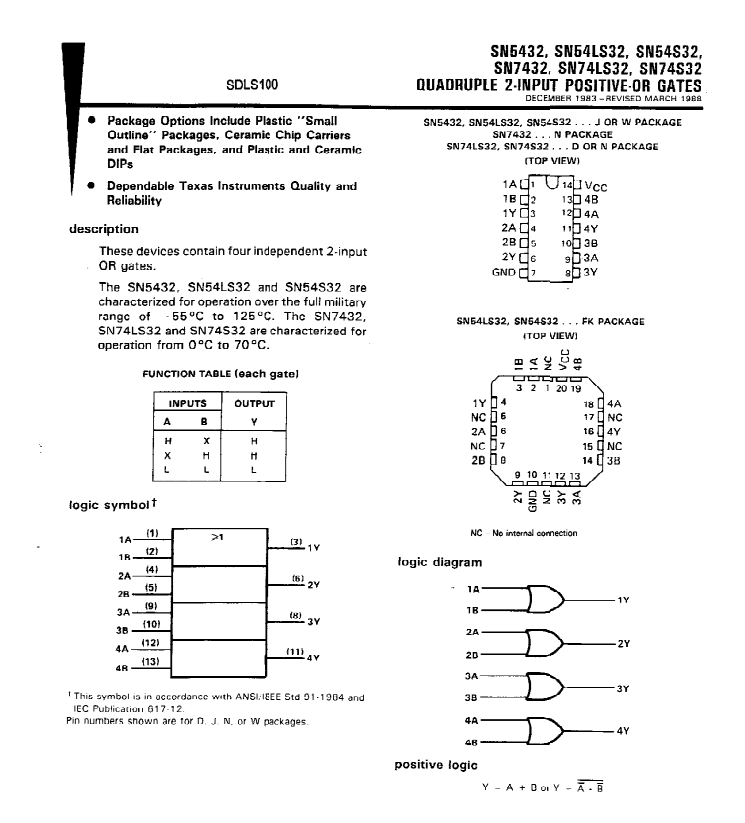

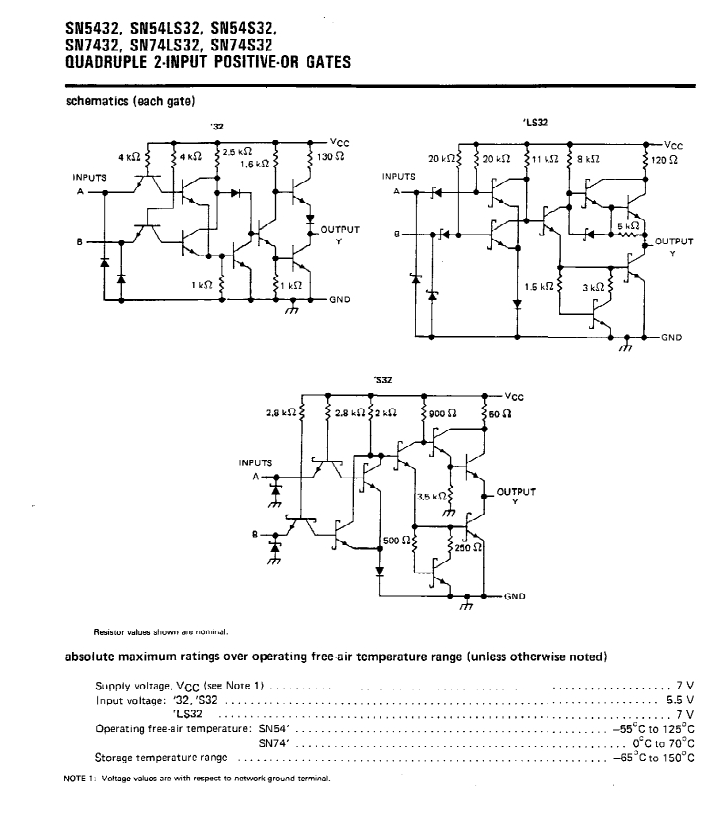

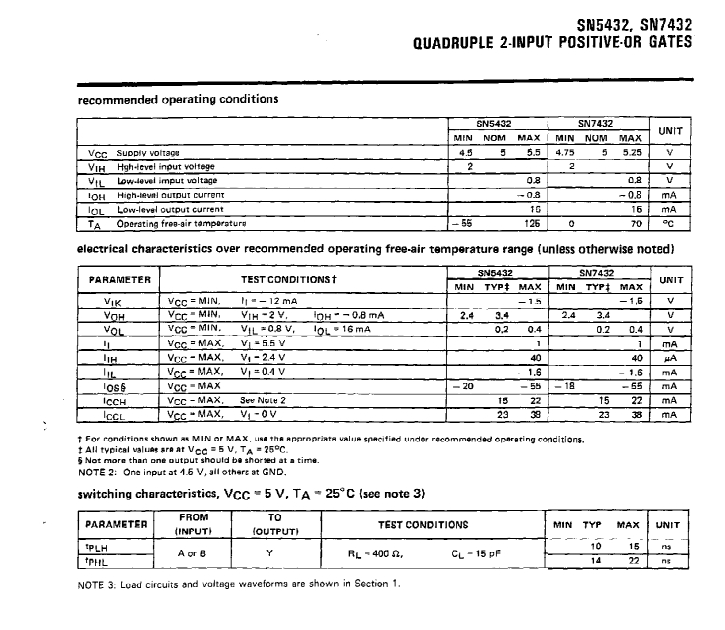

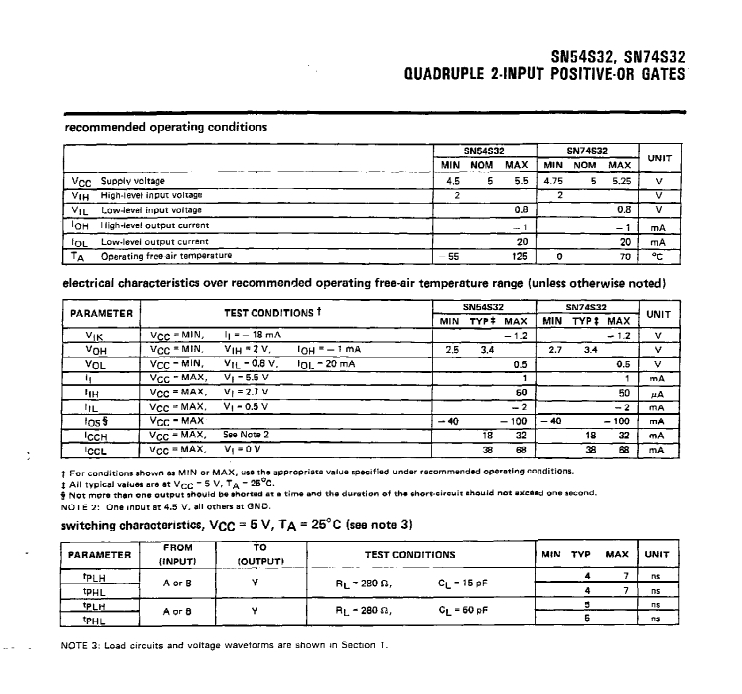

Product datasheet
