Product Details
| Description The CA1524 and CA3524 are silicon monolithic integrated circuits designed to provide all the control circuitry for use in a broad range of switching regulator circuits. ? Complete PWM Power Control Circuitry ? Separate Outputs for Single-Ended or Push-Pull Operation ? Line and Load Regulation. . . . . . . . . . . . . . . 0.2%(Typ) ? Internal Reference Supply with 1% (Max) Oscillator and Reference Voltage Variation Over Full Temperature Range ? Standby Current of Less Than 10mA ? Frequency of Operation Beyond 100kHz ? Variable-Output Dead Time of 0.5μs to 5μs ? Low VCE(sat) Over the Temperature Range ? Positive and Negative Regulated Supplies ? Dual-Output Regulators ? Flyback Converters ? DC-DC Transformer-Coupled Regulating Converters ? Single-Ended DC-DC Converters ? Variable Power Supplies |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - CA1524E |
| Ihs Manufacturer | INTERSIL CORP |
| Part Package Code | DIP |
| Package Description | PLASTIC, DIP-16 |
| Pin Count | 16 |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 40 V |
| Input Voltage-Min | 8 V |
| Input Voltage-Nom | 20 V |
| Length | 19.35 mm |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 0.1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.1 mm |
| Surface Mount | NO |
| Switcher Configuration | PUSH-PULL |
| Switching Frequency-Max | 300 kHz |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

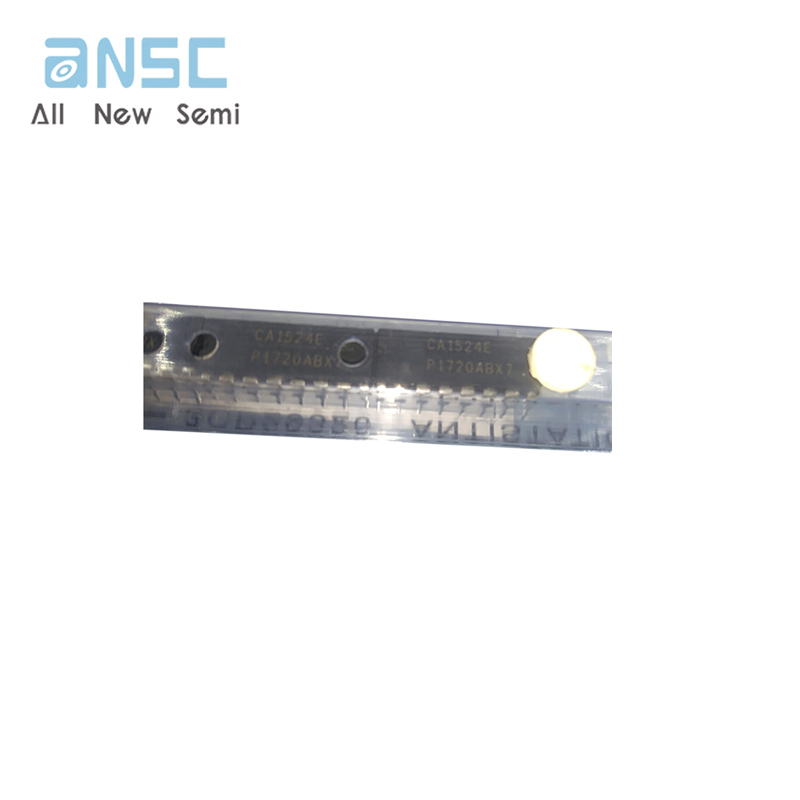

Product Photos

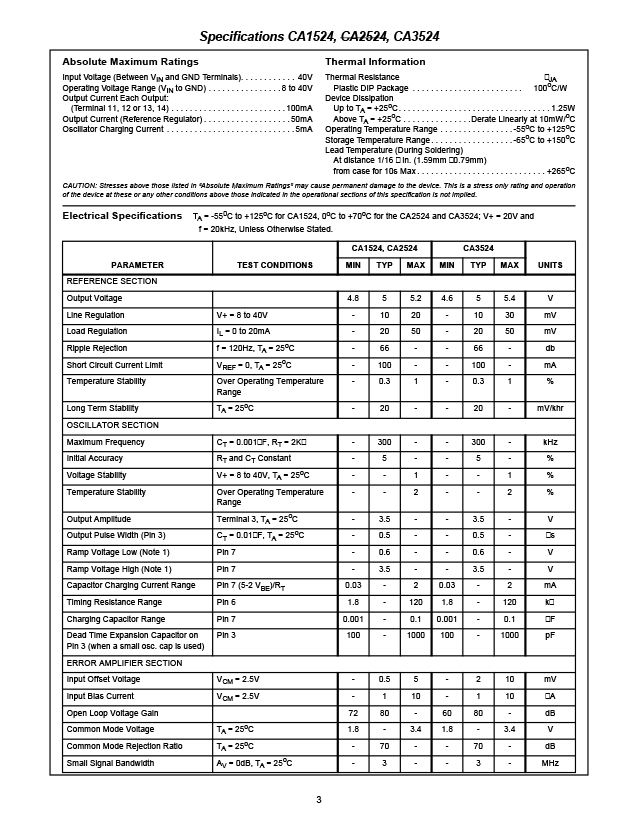

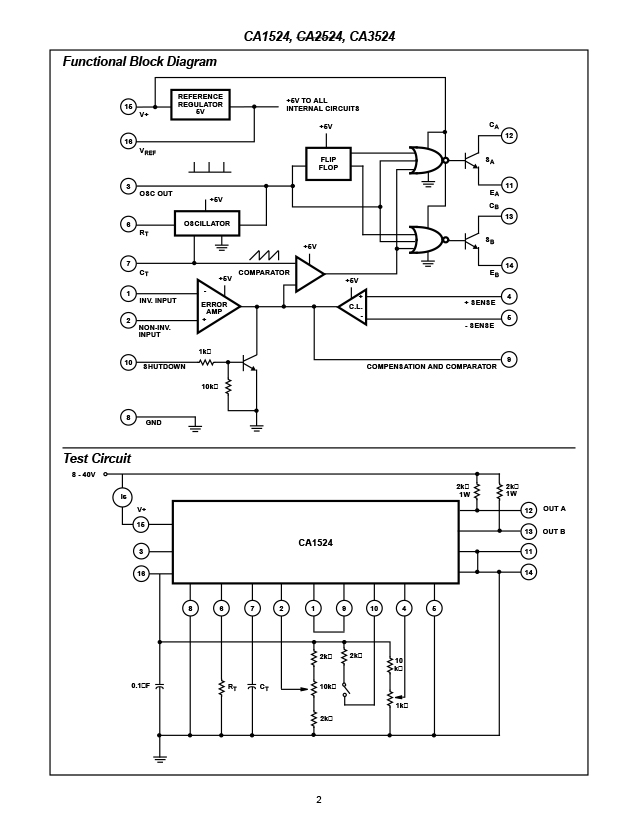

Product datasheet
For more information, please download
