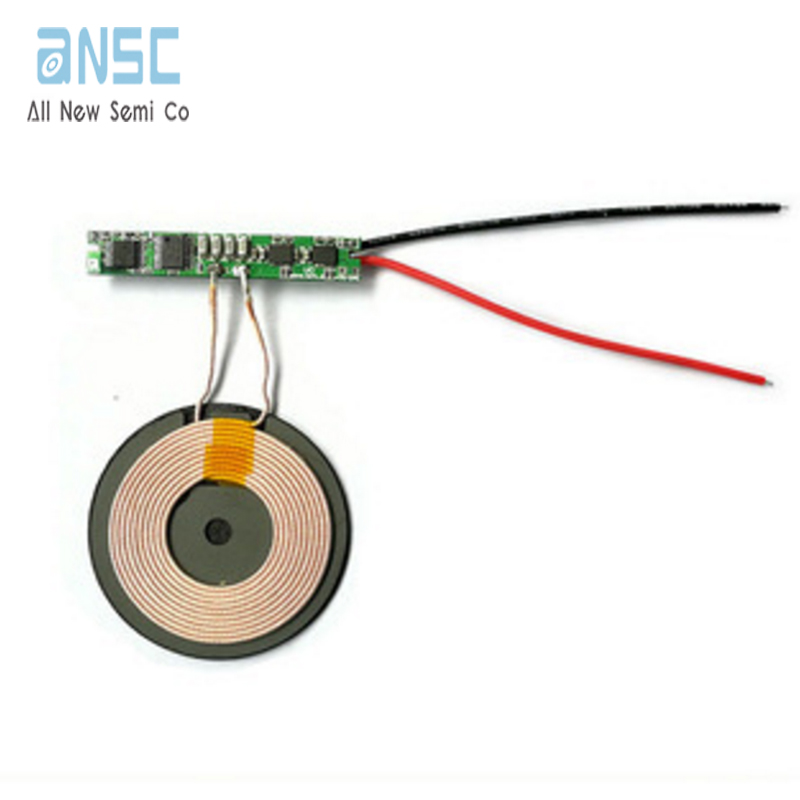

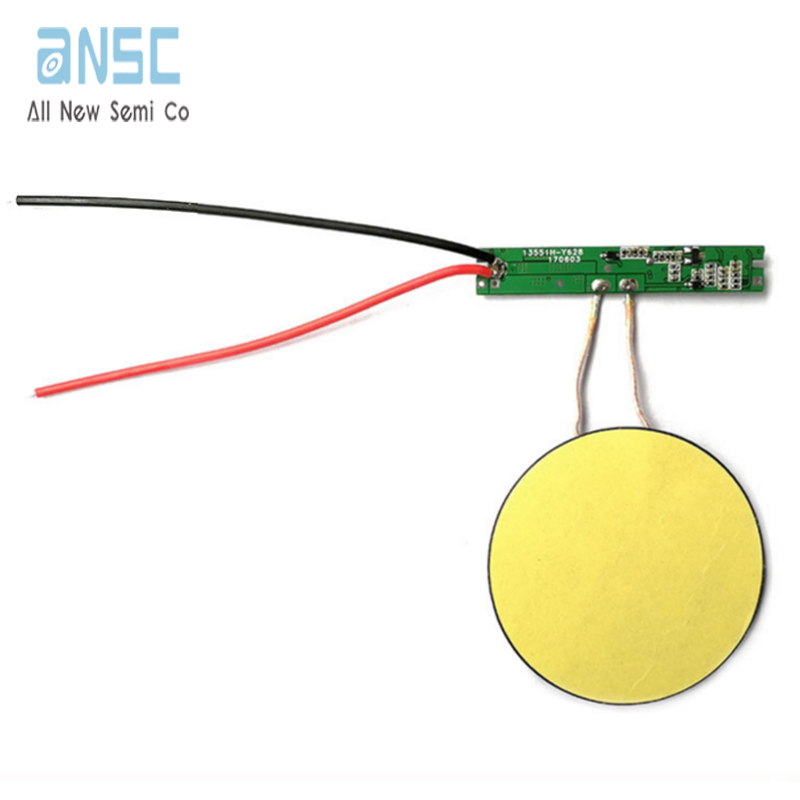

Customized Low working temperature and cheap wireless charger PCBA
Product Specification:
Use:Mobile Phone
Type:Electric
Place of Origin:Guangdong, China
Charging standard:QI 5W
Input:DC5V/1.5A
Output:DC 5V 1A
PCBA thickness:3.5 mm
Certificate:CE FCC ROHS
Coil size:50mm
Material:Circuit board
Warranty:12 Months
PCBA Dimension:52*8mm
Charging temperature:MAX 35℃
Product Feature
This mode PCBA has good compatibility with 5W wireless charging mobile phone and support Ti, IDT, PANASONIC, and others Qi standard receiver.
The PCBA design engineer use 2pcs of TI 97374 IC to drive wireless charging working .the wireless charging efficiency achieve to be 90% .
Power input 5V1.5A power control IC driver MOS transistors (Drive circuit),MOS push-pull resonant capacitance and inductance, issued 50V voltage 105-189K shock power,Communication module detects the received feedback information to the MCU,Feedback information processing modulation frequency is 500-1000Hz,At the same time electrical detection module will send back to the transmit power MCU,MCU based on feedback to adjust the transmit frequency,The circuit control within a certain range. Wherein the main operating frequency is 48MHz.LED have blue and green color, the power will turn every 0.5S bright look.Standby completely destroyed, charging blue lights up, full of green light.when an error occurs, double light flashing.
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
