Product Description
Wireless charger motherboard transmitter standard vehicle wireless charging
PCBA version of the spot solution development(Accept customization)

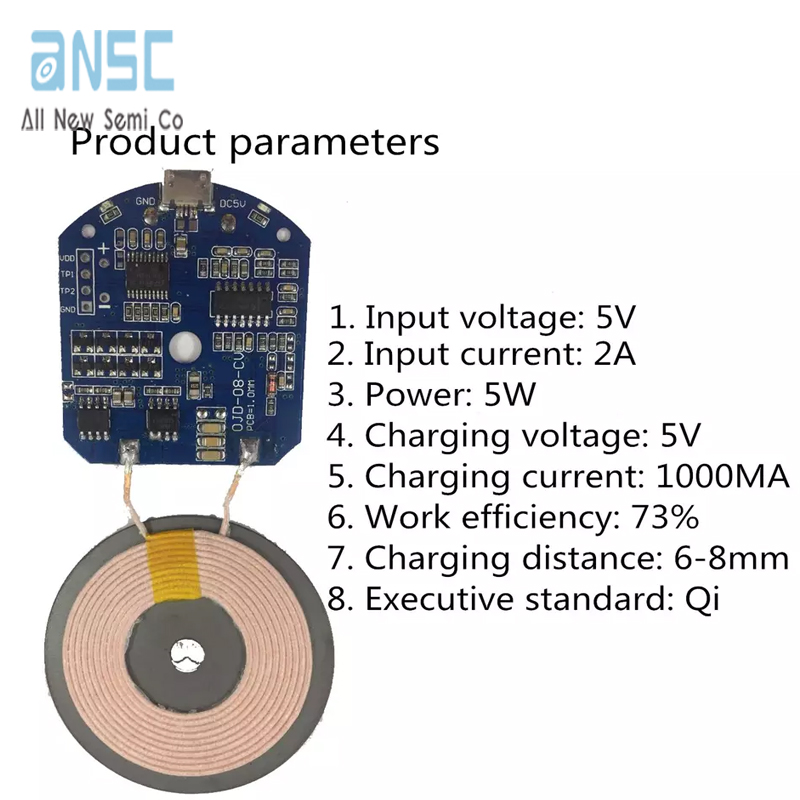

| 1. Input voltage: | DC4.3V ~ 5.5V/1.5 ~ 2A, if the voltage exceeds the range, alarm and stop charging |
| 2. Output voltage: | 5V±0.1V, |
| 3. Charging current: | 500mAh-1000mAh |
| 4. Charging power: | Up to 5W |
| 5. Conversion efficiency: | More than 73% (69% for domestic products) |
| 6. Transmission distance: | The maximum is 10 mm, and the recommended receiving and sending distance is 2 mm ~ 4 mm |
| 7. Standby power consumption: | The average power consumption is less than 30MW |
| 8. Over temperature protection: | When the temperature of charging is higher than 53 擄C, it will stop charging for 1 minute automatically, and then charge again after the temperature drops (imported IC c0g resonant capacitor) |
| 9. Over current protection: | When the output current is greater than 1.8A, the charging will be stopped automatically to prevent damage to the charger |
| 10. Standard: | wireless charging standard |
| 11. Whether foreign body detection is supported: | support |
| 12. Indicator function: | When charging, five blue lights are on together, and the standby light is on red light |
| 13. Temperature protection | (over temperature, over voltage, over current) high efficiency (fast charging speed, low temperature during charging) |

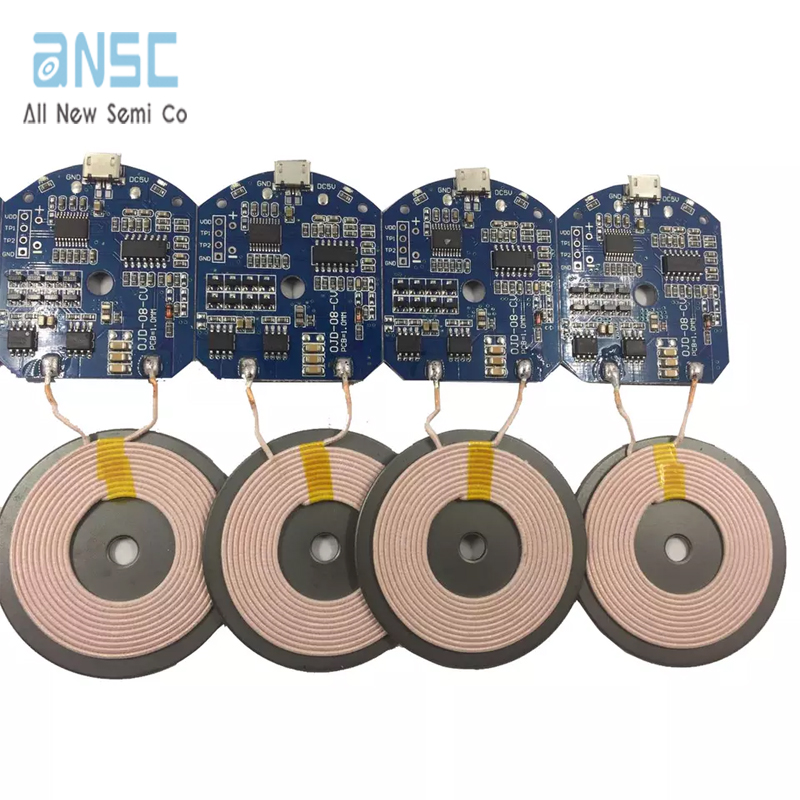

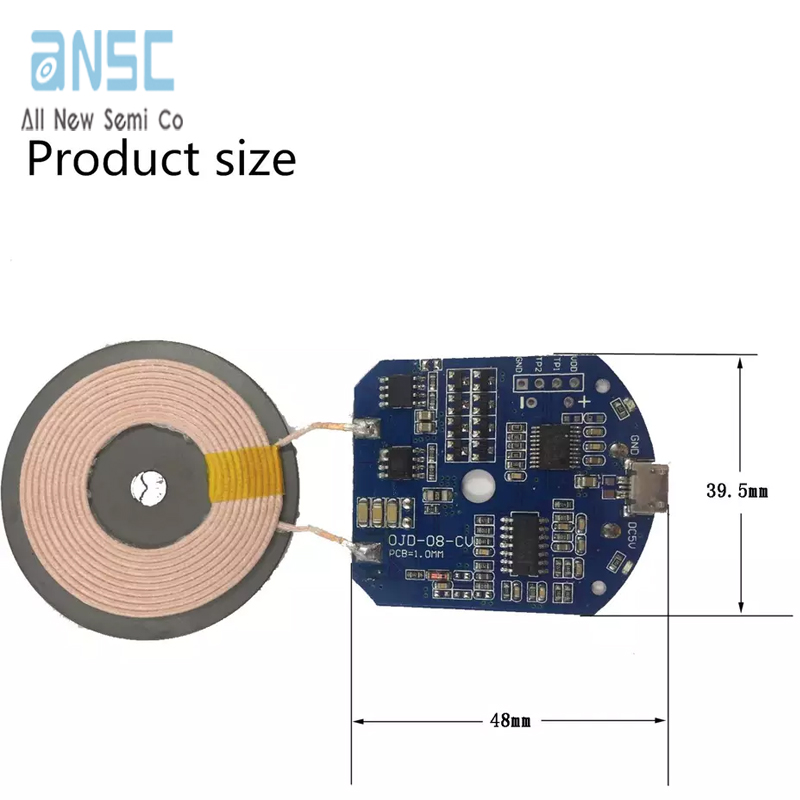

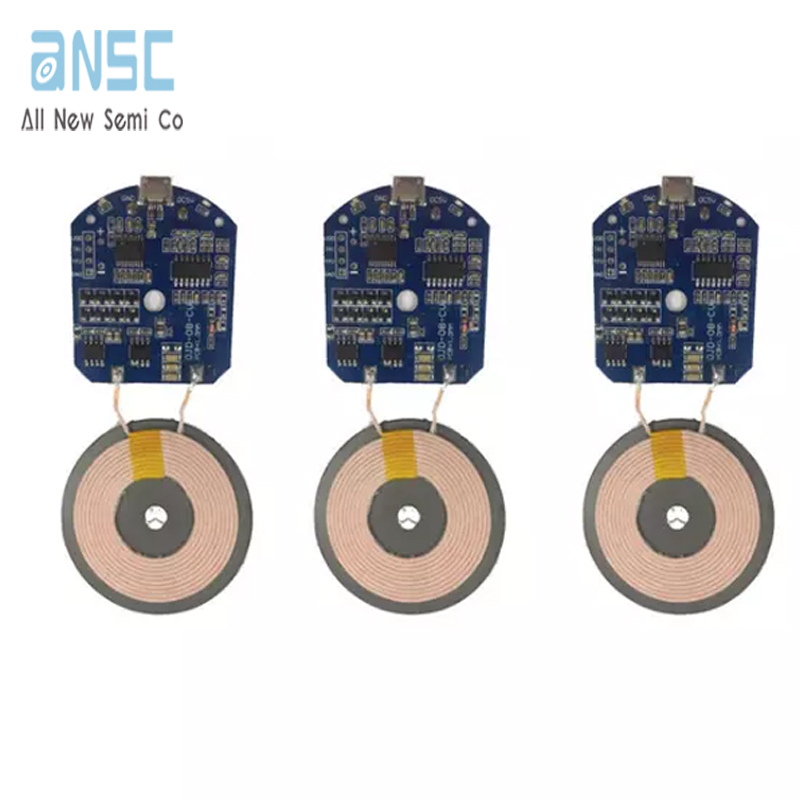

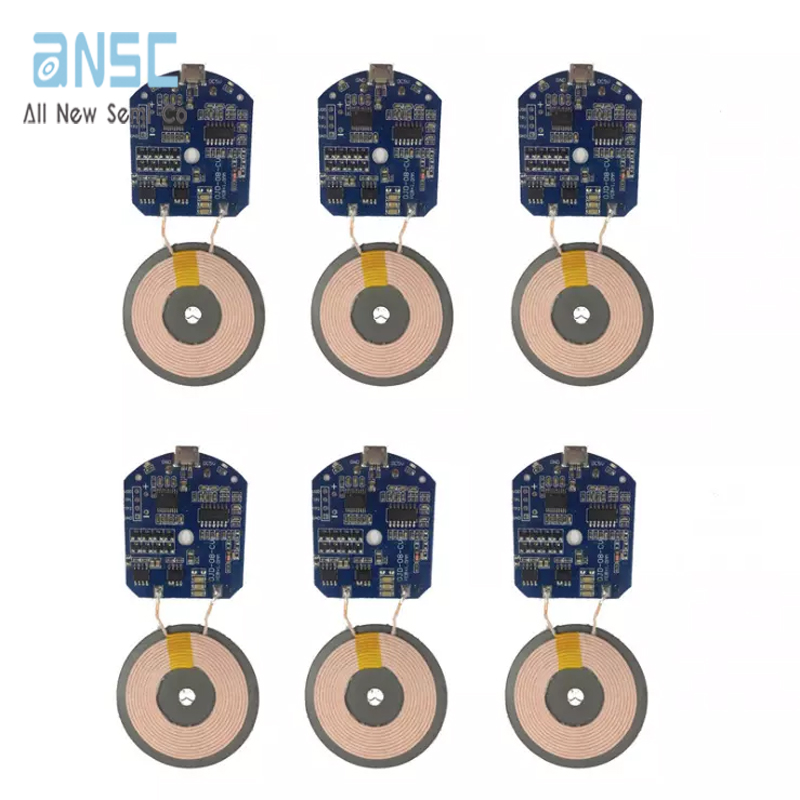

Actual image of the product
