Product Description
| 5V10A charging USB power module DC9V-36V input 8-port USB high current DC-DC charging module(Accept customization) Product Description Input voltage：DC 9~36V Output voltage：5V Total output current：10A MAX Total output power：50W MAX Maximum efficiency ：90% Average working life：50000hours PCBA size：81.2*54.7mm Product functions and features: 8-way USB port output, can supply power at the same time, save the number of USB chargers Terminal wiring or 9v-36v computer / router / set top box and other power adapter input can meet the needs of different users 9v-36v wide voltage input design, with strong adaptability The module uses industrial grade electronic components, with long service life and working hours up to 50000 hours Led working indicator Wiring mode: 1. The terminal can be easily used without iron 2. The universal power socket can be used after connecting with the power adapter such as computer / router / set-top box Application fields: This module can be used in DIY power supply, 9v-36V to 5V, and connected with USB cable to supply power to mobile phone, power bank, iPad related electronic equipment, and can also be used for one to eight Port USB charging head. matters needing attention: I / O positive and negative poles cannot be reversed. Reverse connection may burn the equipment Since it is a step-down module, in order to ensure the normal operation of the module, please keep the input voltage at 9V-36V |

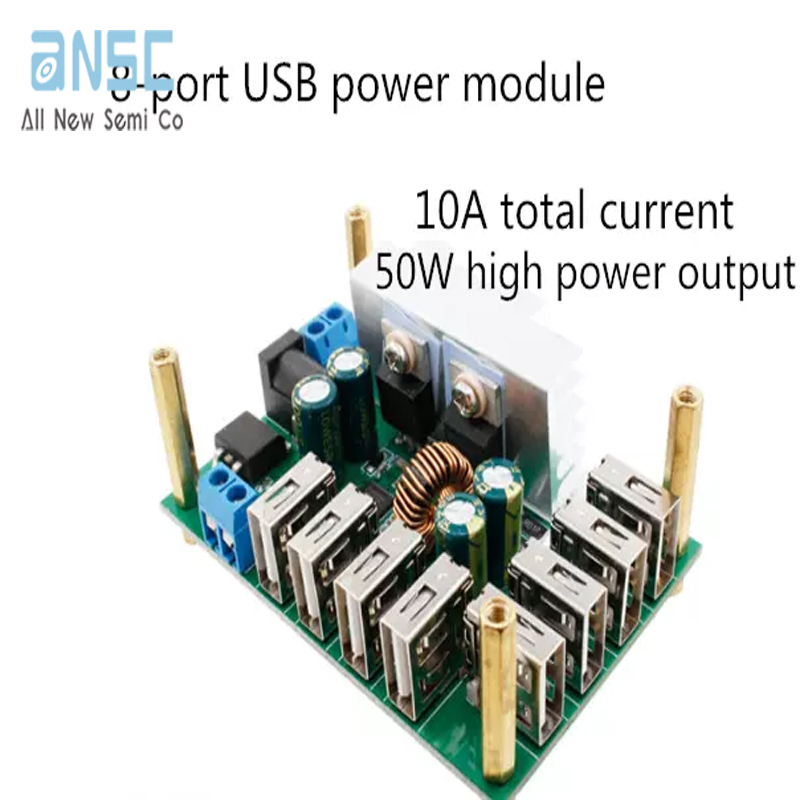

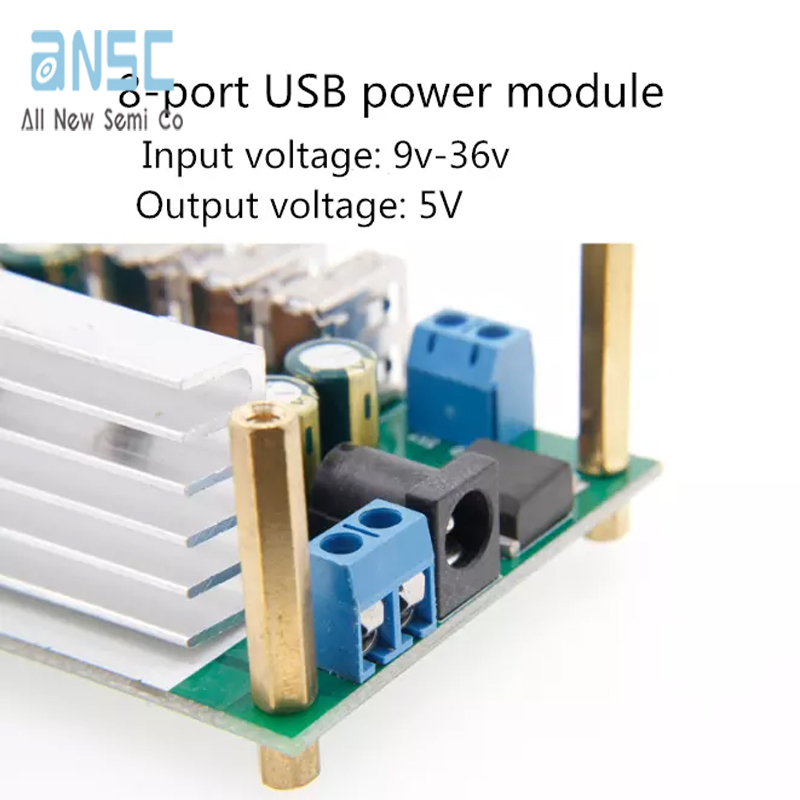

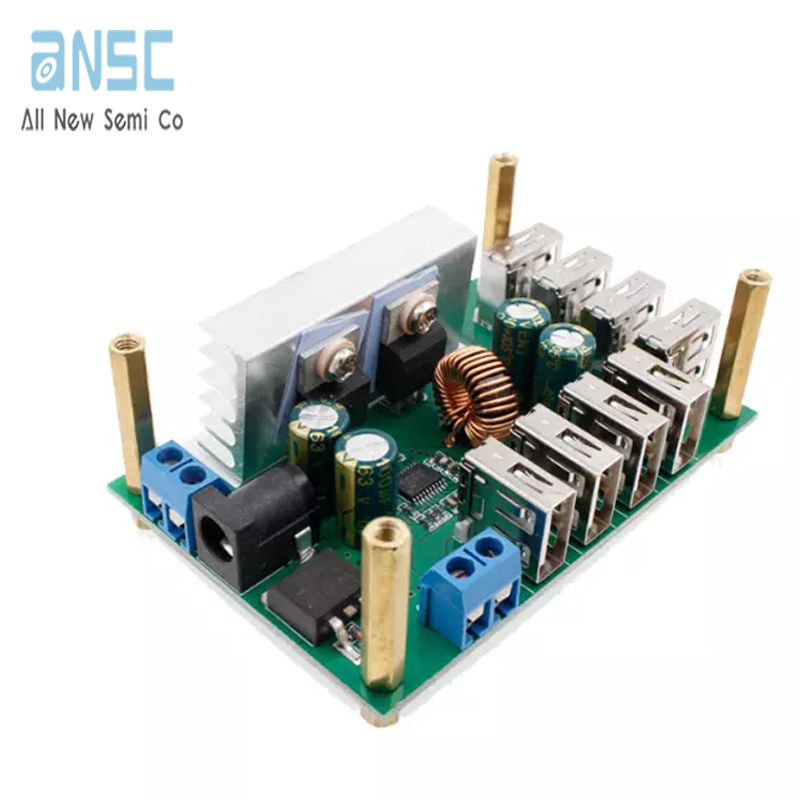

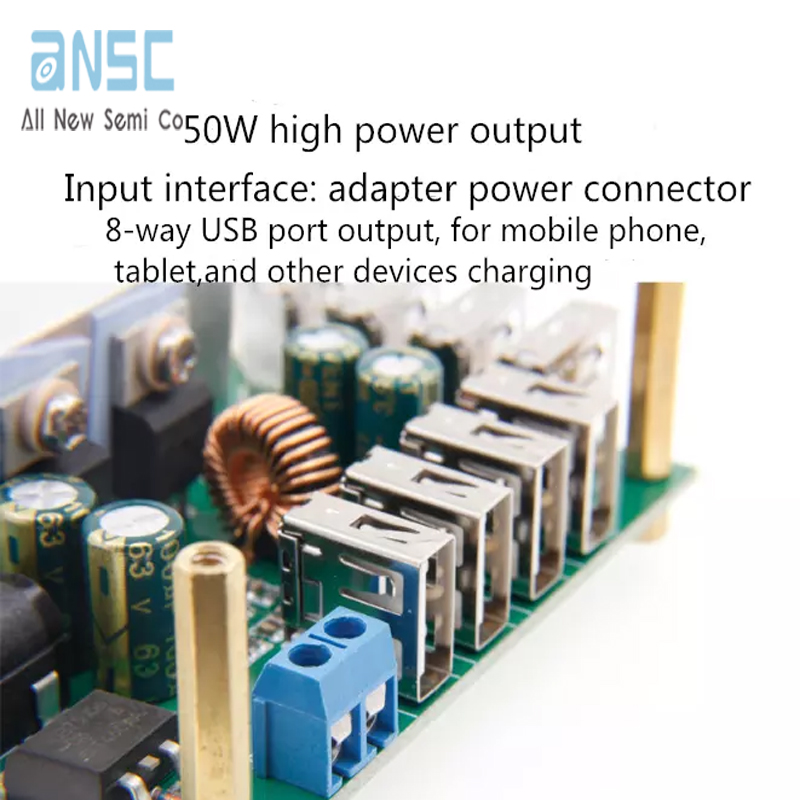

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
Exhibition
Advantages
FAQ
