DC-36A DC-36A output voltage limiting module(Accept customization)
Product Description
Input voltage:DC9V-36V
Output voltage:5V
Total output current:8A MAX
Total output power:40W MAX
Maximum efficiency:90%
Average working life:50000hours
PCBA size:68*70*15.9mm

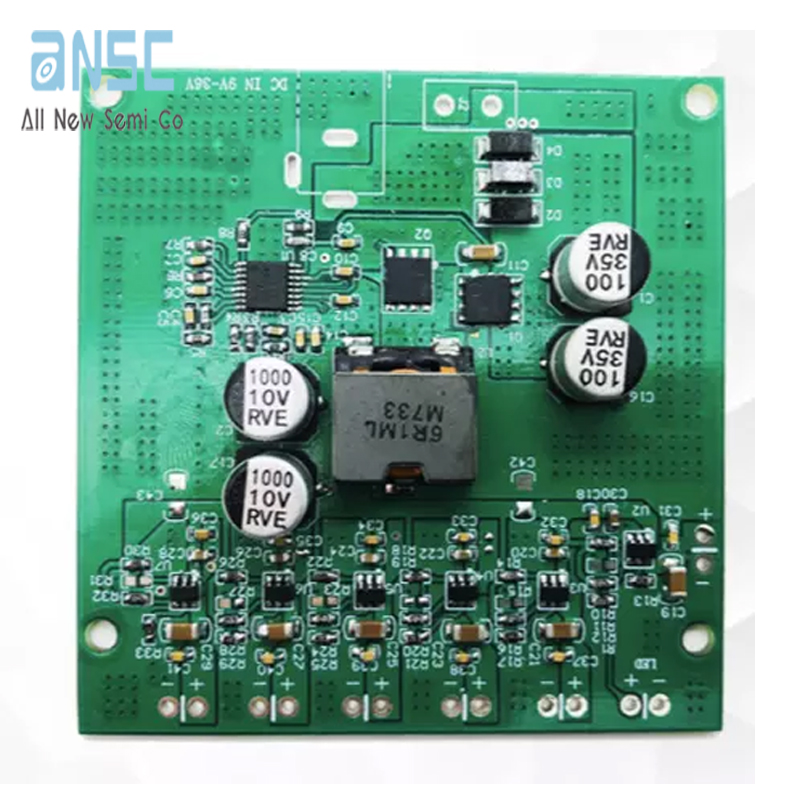

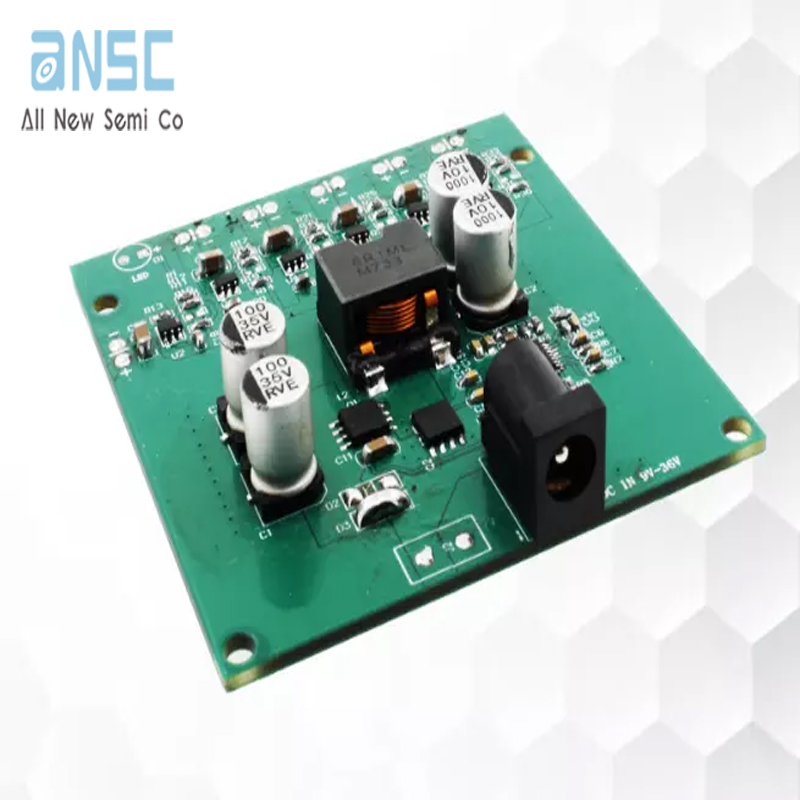

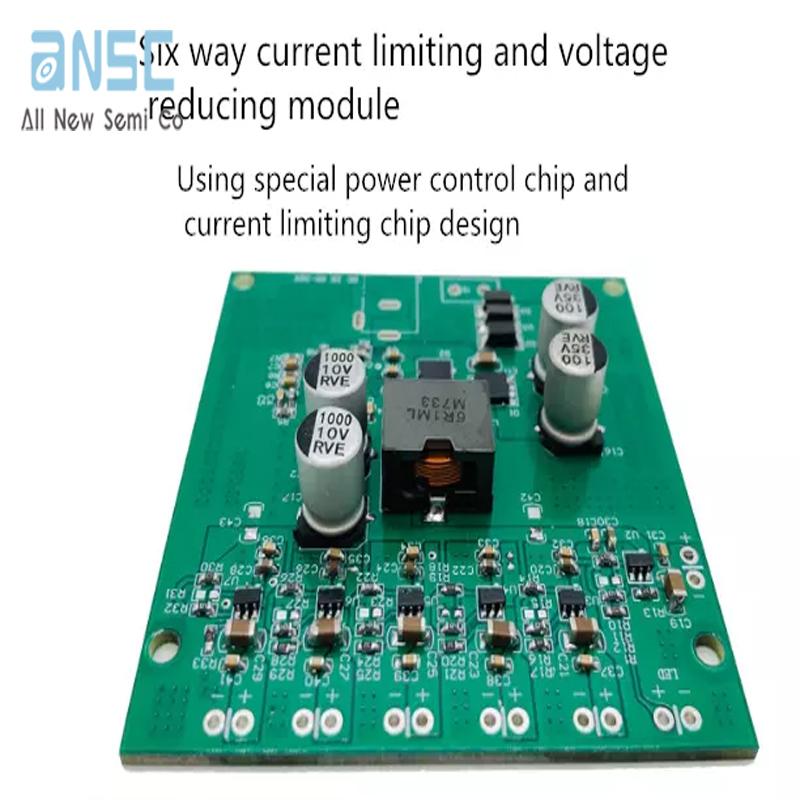

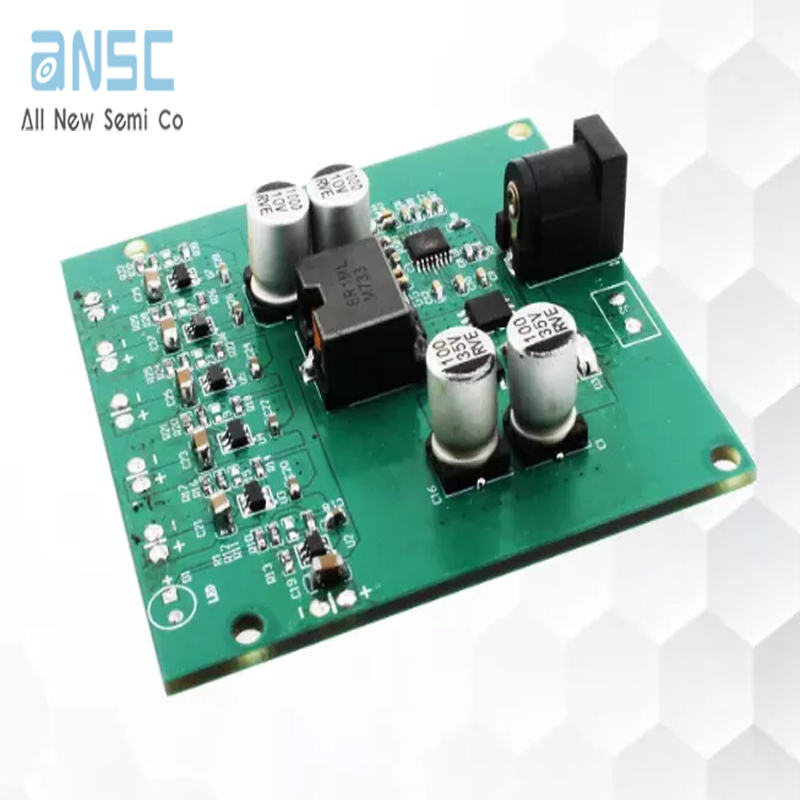

Product Description: This module has six separate output ports, which can output six channels at the same time. In order to protect the safety of the circuit, each output port is equipped with current limiting protection (adjustable current limit). As long as the output port current exceeds the current limit, the port will automatically power off. This design greatly reduces the possibility of product damage due to excessive current. This module has the characteristics of small size, high reliability and high cost performance. It can be used for charging mobile phone, PDA and other related mobile devices.
Product functions and features: six current limiting ports output, each port has current limiting function, which can protect the load safety
Terminal wiring or 9v-36v computer / router / set top box and other power adapter input can meet the needs of different users
9v-36v wide voltage input design, with strong adaptability
The module uses industrial grade electronic components, with long service life and working hours up to 50000 hours
Led working indicator
Factory direct supply, quality assurance
How to use: connect the module to the power supply according to the picture above (check whether the wiring is correct). After the module is powered on, the LED working indicator lights up. We only need a universal USB cable to connect with the module to supply power to the device.
Application field: This module is used in DIY power supply, 9v-36v to 5V, power supply for mobile phone, power bank, iPad related electronic equipment, etc., and can also be used for a six port charging head.
Note: input / output positive and negative poles cannot be reversed. Reverse connection may burn the equipment
Since it is a step-down module, in order to ensure the normal operation of the module, please keep the input voltage at 9v-36v
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
