Product Description
5W LED single touch the first mock exam 4 color temperature dimmer lamp 5W
wireless charging two in one module [PCBA](Accept customization)
Product Description
Input:5V2.5A
Output:LED desk lamp power 5W
Wireless charging power 5W
performance parameter
a. LED desk lamp
Input voltage:5V
Maximum power:5W
48 pieces of 4014 LED
Central illumination :400LUX
Luminous flux: 5000LM
Color temperature:2800K,4500K,5600K,6500K
Life:50000
b. 5W wireless charging
Input voltage:5V
Wireless charging output:5W
Protection function: Over current protection, over-voltage protection, FOD metal foreign matter protection
Transmission distance: ≤8mm
Charging efficiency:≥76%
[Instructions for use]
1. Click the button for the first time, the lamp is turned on, and the color temperature is 2800k
2. Click the button for the second time, the lamp will be turned on, and the color temperature will be 4500k
3. Click the button for the third time, the lamp will turn on, and the color temperature will be 5600k
4. Click the button for the fourth time, the lamp will turn on, and the color temperature will be 6500k
5. Click the button for the fifth time, and the lamp will turn off
6. Under the selected color temperature, long press the key, the LED brightness will increase, and release the button when it reaches the appropriate brightness
7. Press and hold the key again, the LED brightness will decrease, and release the button when it reaches the appropriate brightness

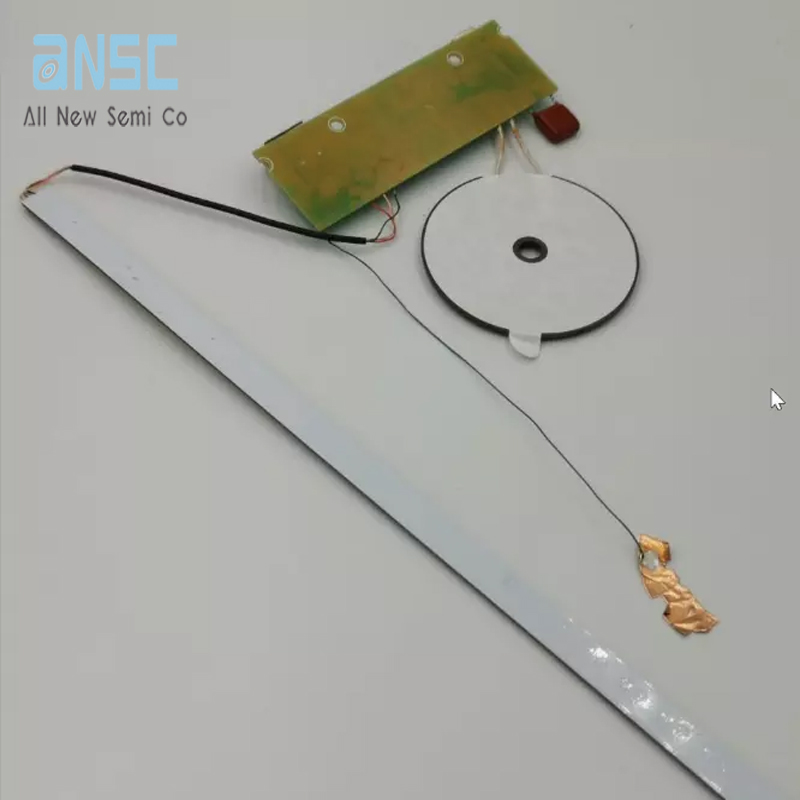

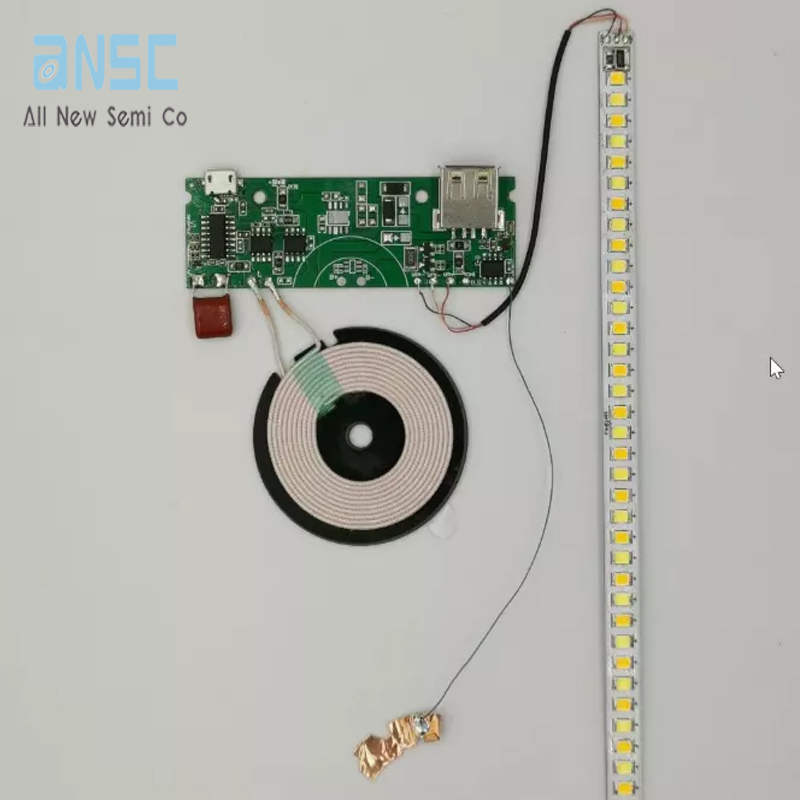

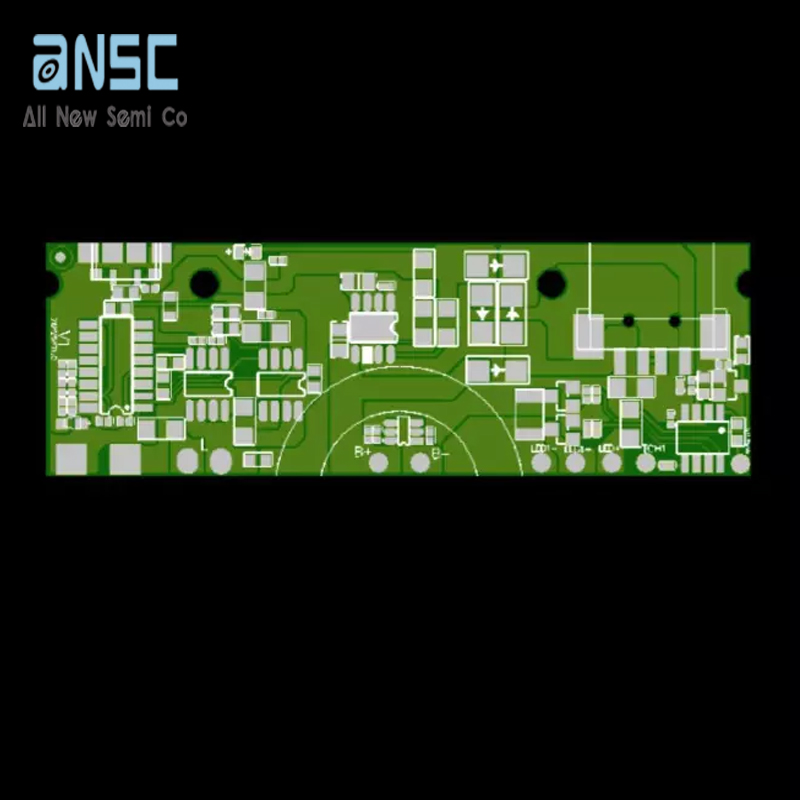

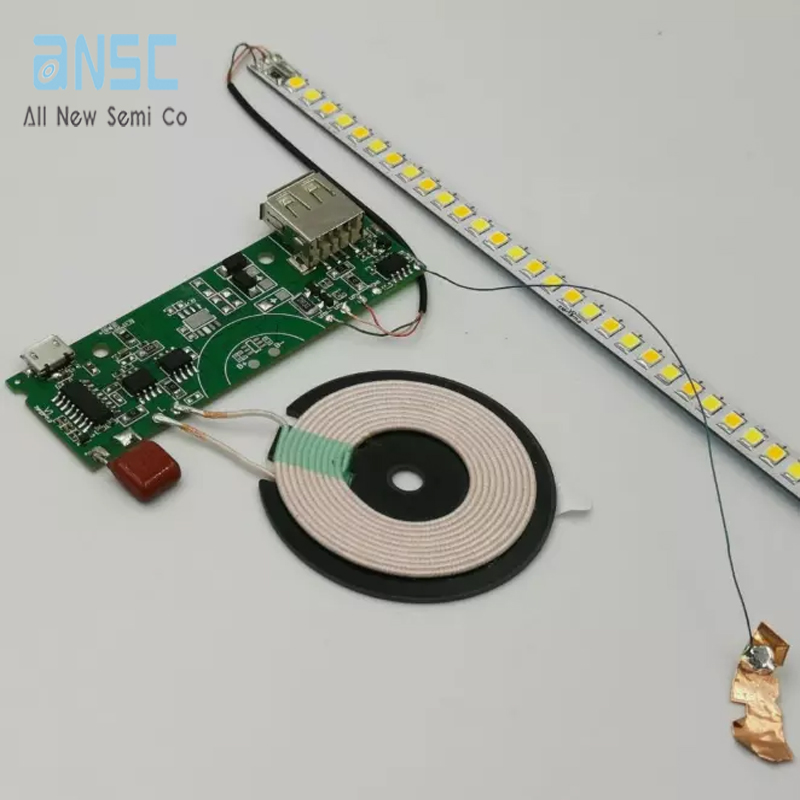

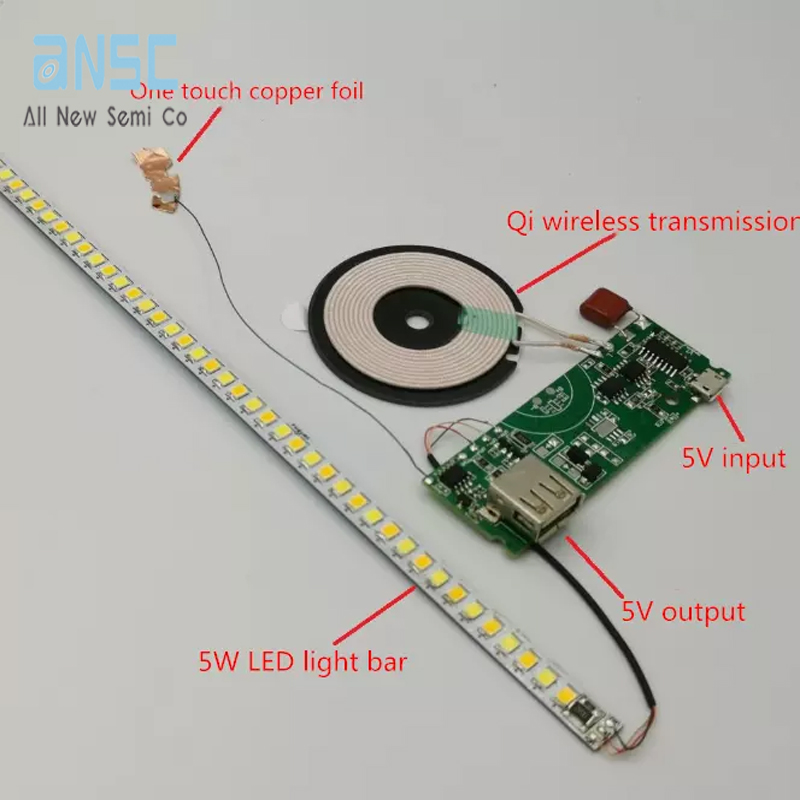

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
