Product Description
wireless charging purse purse purse module dual coil positive and negative charging transmitter with battery two in one PCBA(Accept customization)
Product Description
Function and number:
Product model:Handbag, leather bag, purse, double coil positive and negative wireless charge and emission battery integrated PCBA, single board design
Main functions:Charging the built-in 6000mAh battery via microusb,
Charging mobile phone through 5W Qi transmission
Double coil design, the front and back of the handbag can charge the mobile phone,
With large USB output, it can charge the mobile phone cable
Standard Version:WPC-1.2.4
Product application:Qi compliant wireless charger
Charging type:One to one charging in corresponding area
Charging voltage:DC5V
Charging current:2000mA MAX
Transmitting power:5W
Working frequency: 100-205KHz
Power conversion:More than 75%
Charging mode:Induction mode
Battery capacity:6000mAh
Power indication:4 LEDs
Wireless charging indication:1 LED
Starting mode:Label touch button long press start

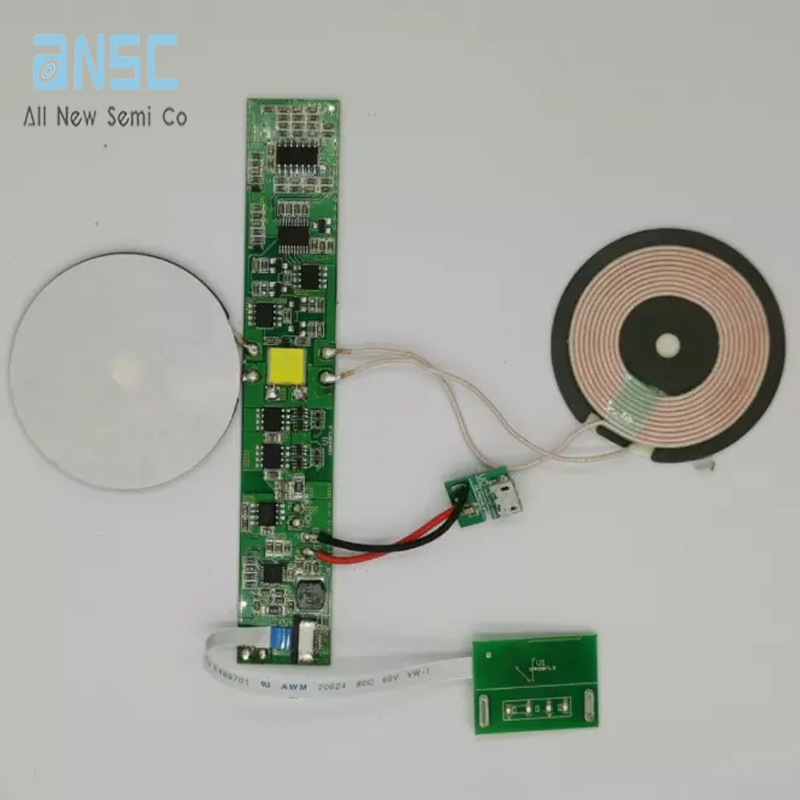

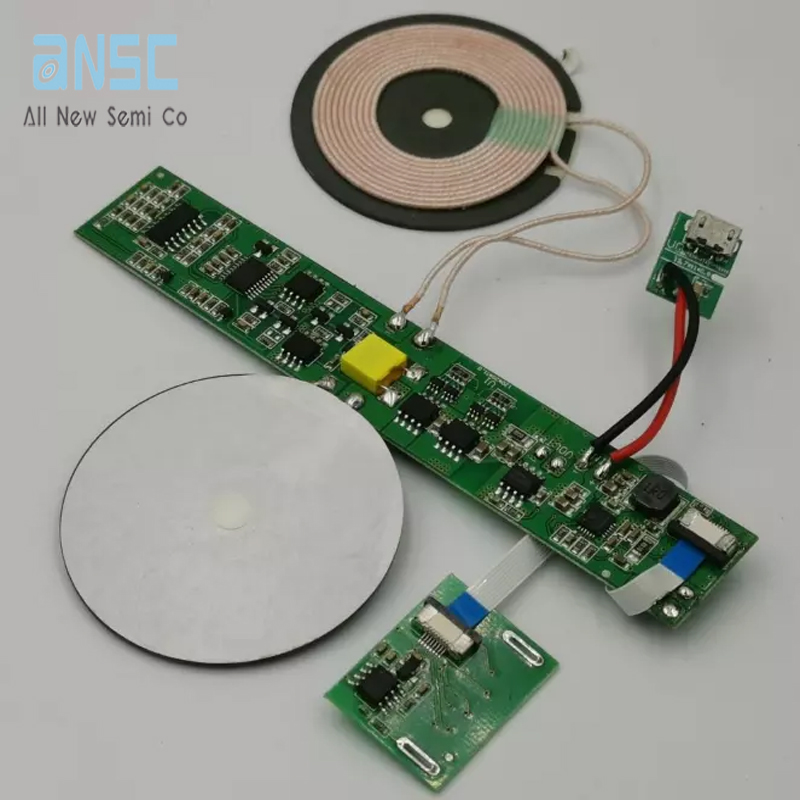

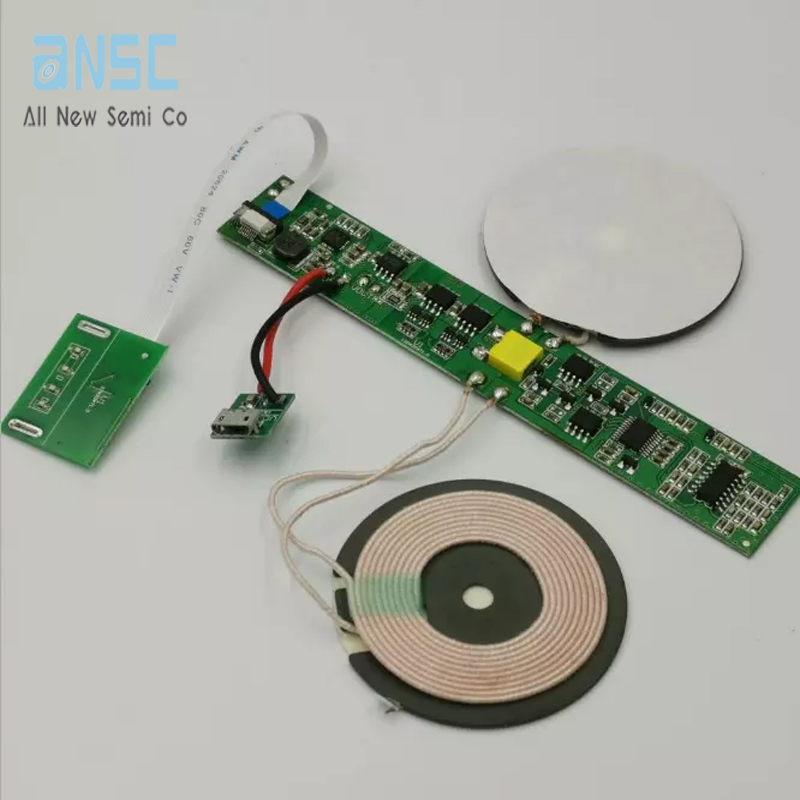

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
