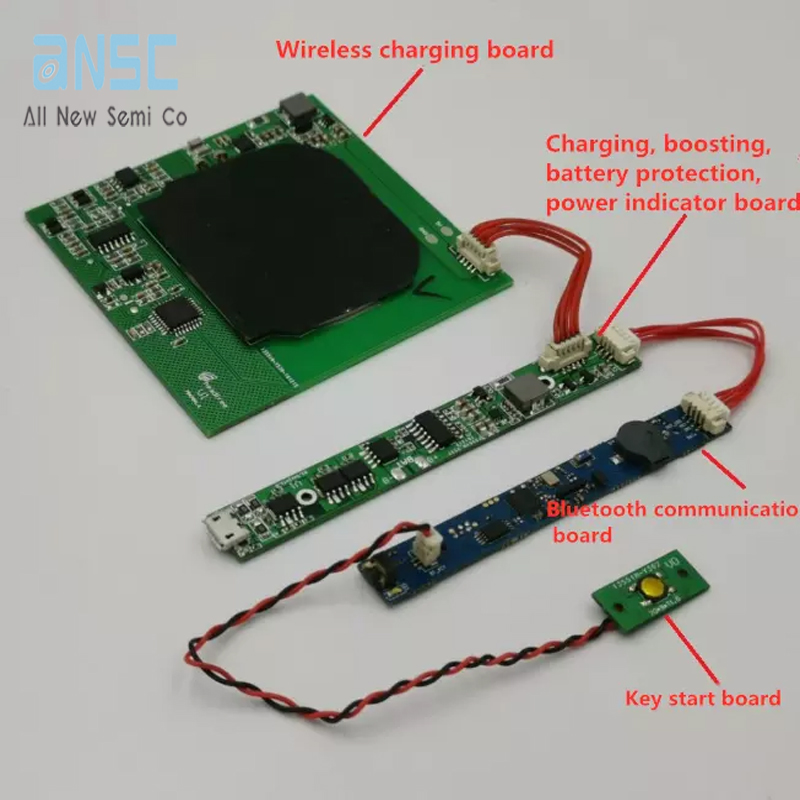

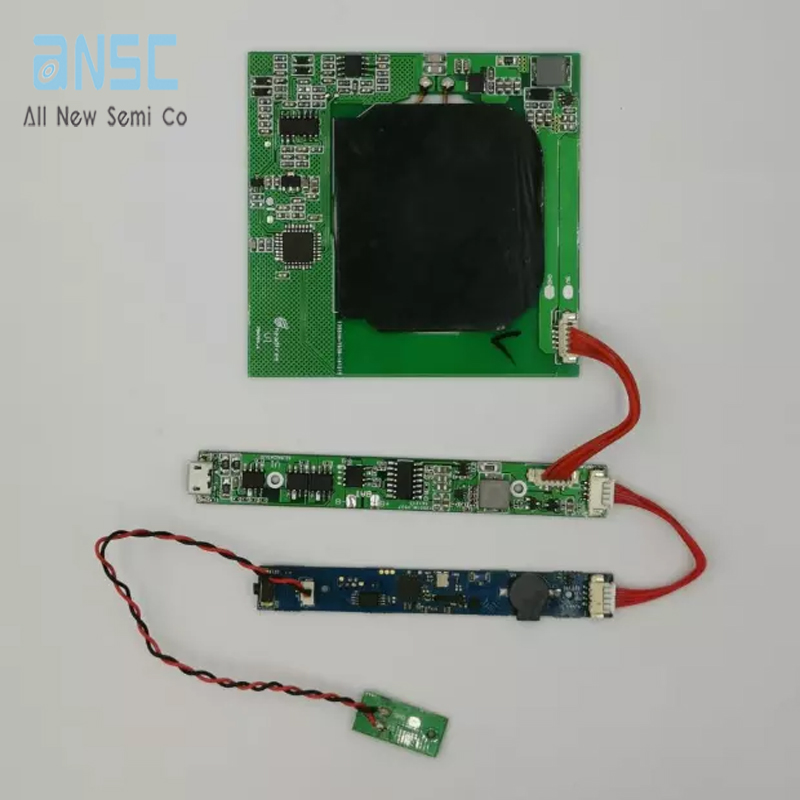

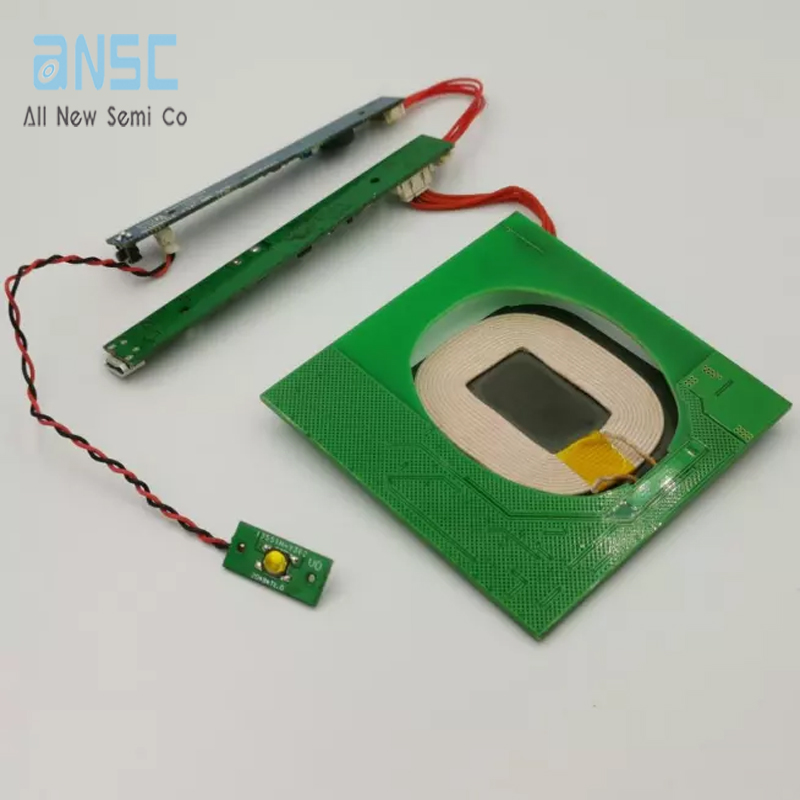

Qi wireless charging purse purse purse module transmitter with battery two in one wireless charging mobile power PCBA(Accept customization)
Product Description
Function and number:
Product model: Handbag, leather bag, purse, wireless transmitting battery integrated PCBA
Main functions: Charge the built-in 6000mAh battery through microusb, charge the mobile phone through 5W Qi transmission, communicate with mobile app through board, operate the charging state in real time and monitor the battery power
Standard Version: WPC-1.2.4
Product application: Qi compliant wireless charger
Charging type: One to one charging in corresponding area
Charging voltage: DC5V
Charging current: 2000mA MAX
Transmitting power: 5W
Working frequency: 100-205KHz
Power conversion: More than 75%
Charging mode: Induction mode
Battery capacity: 6000mAh
Power indication: 4 LEDs
Wireless charging indication: 1 LED
Starting mode: Press the key to start
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
