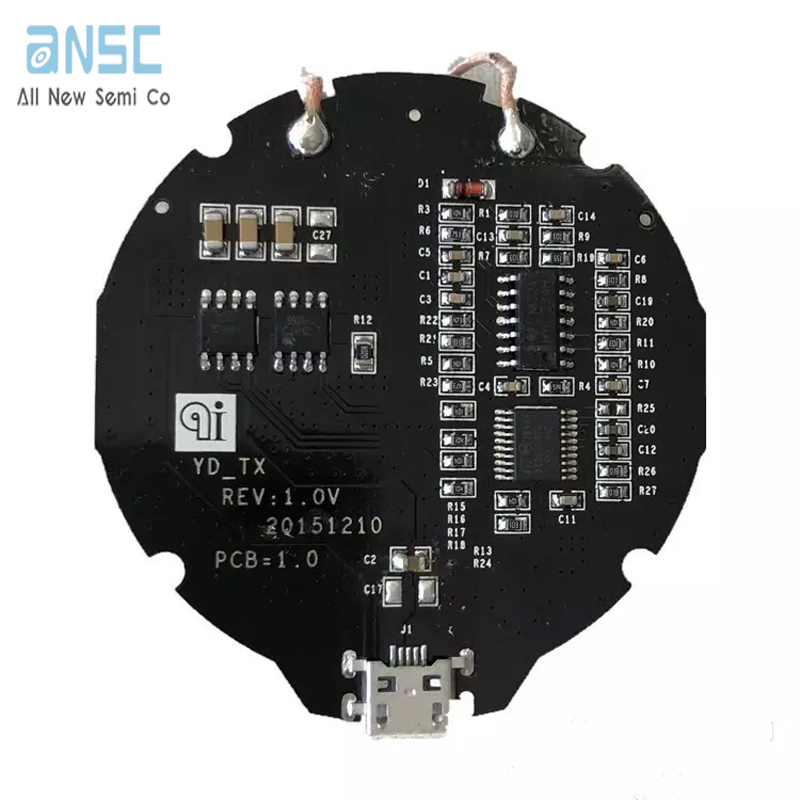

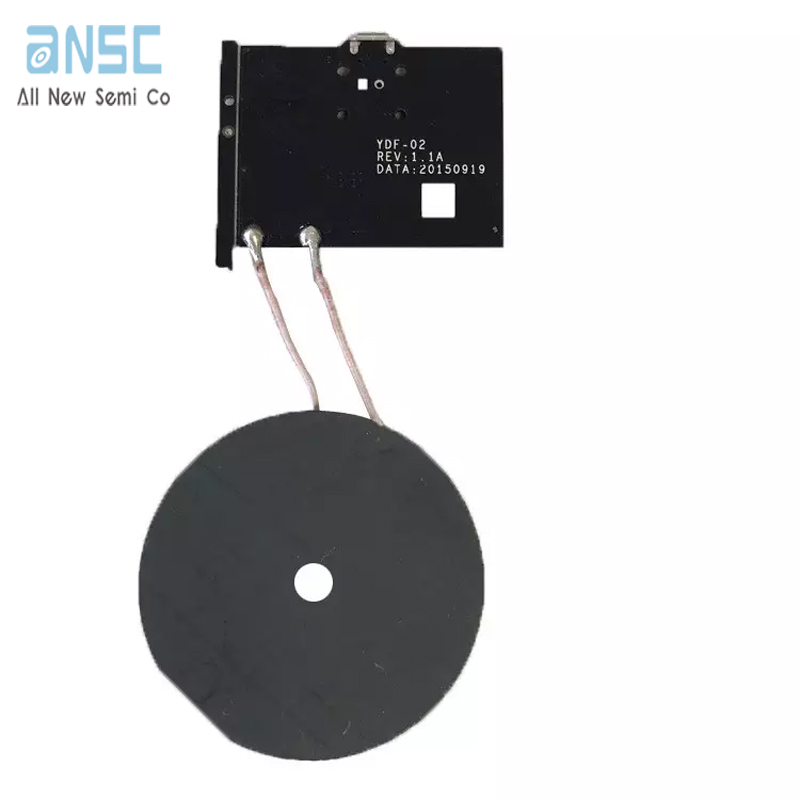

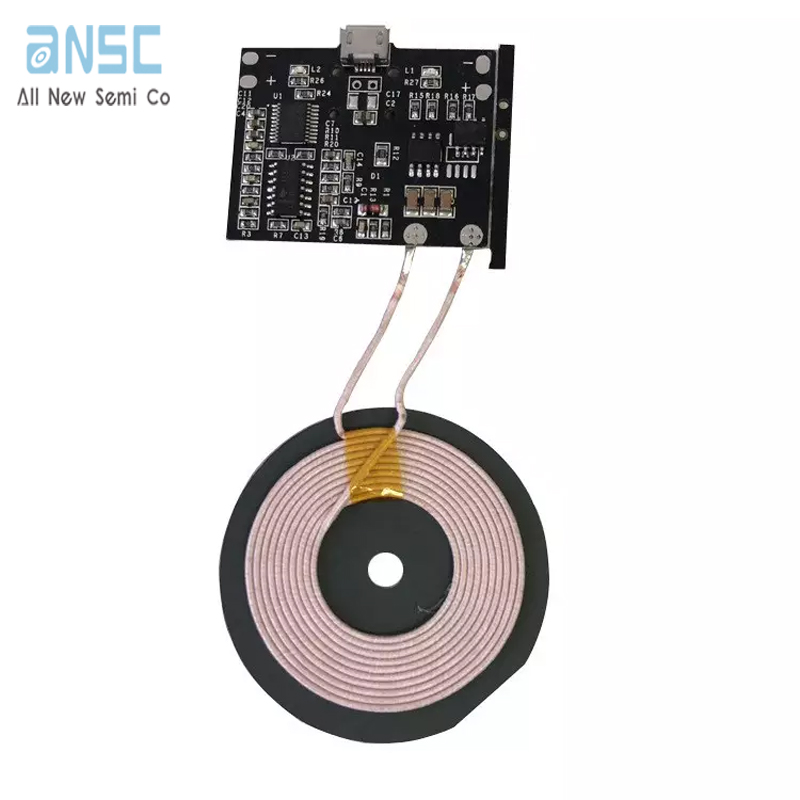

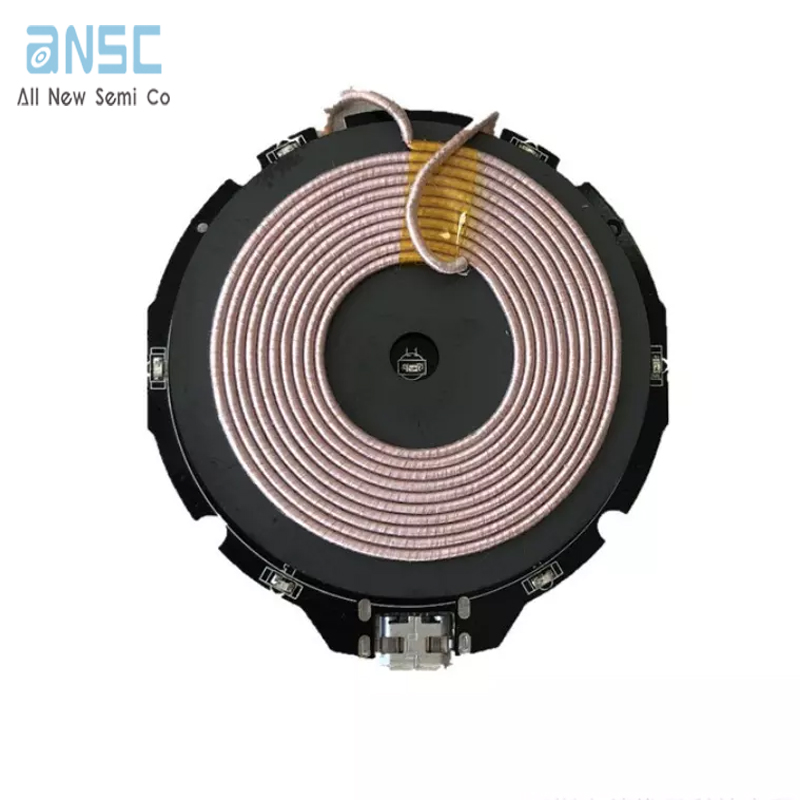

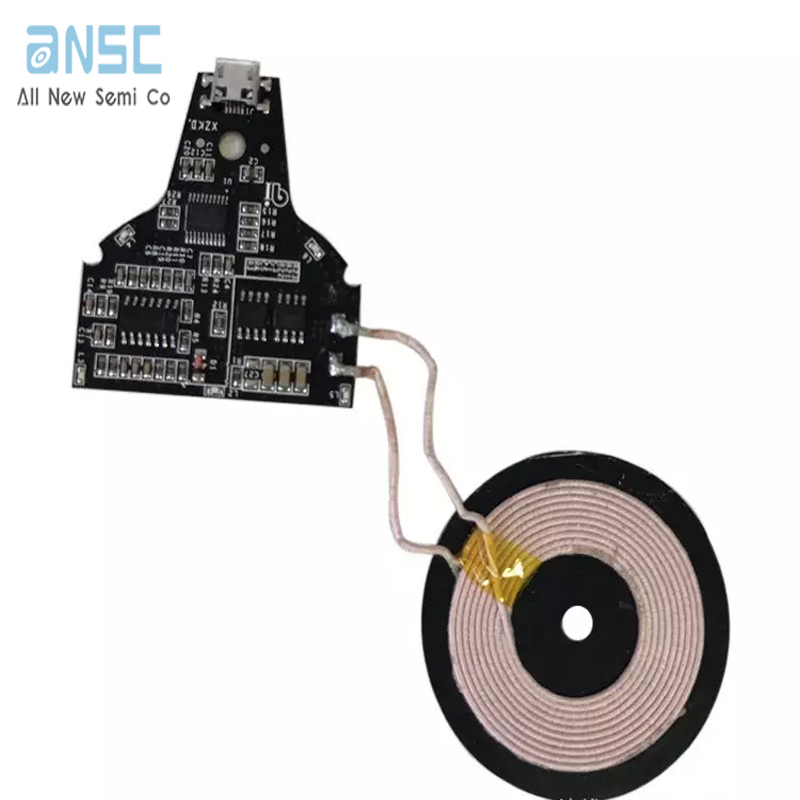

Development of wireless charging scheme for K9 wireless charging PCBA wireless charger board
(Accept customization)
Product Description
Q5 / K9 / 02A product parameters:5W single coil
Scheme:ST
Interface:Micro
Light indication:LED
Launch distance:5-10mm
Charging current:1000mA
Wireless charging and output:5V-1A
Boost efficiency:93%
Working frequency:110-205KHZ
Wireless charging conversion efficiency:75%
Compatible with Qi standard:WPC1.1
Protection measures:Over current, over temperature and short circuit protection
Plate width size:[02A]
Frame size:64*32*1mm
Coil size:50*50*1
[Q3]
Frame size:57*55*1mm
Coil size:50*50*1MM

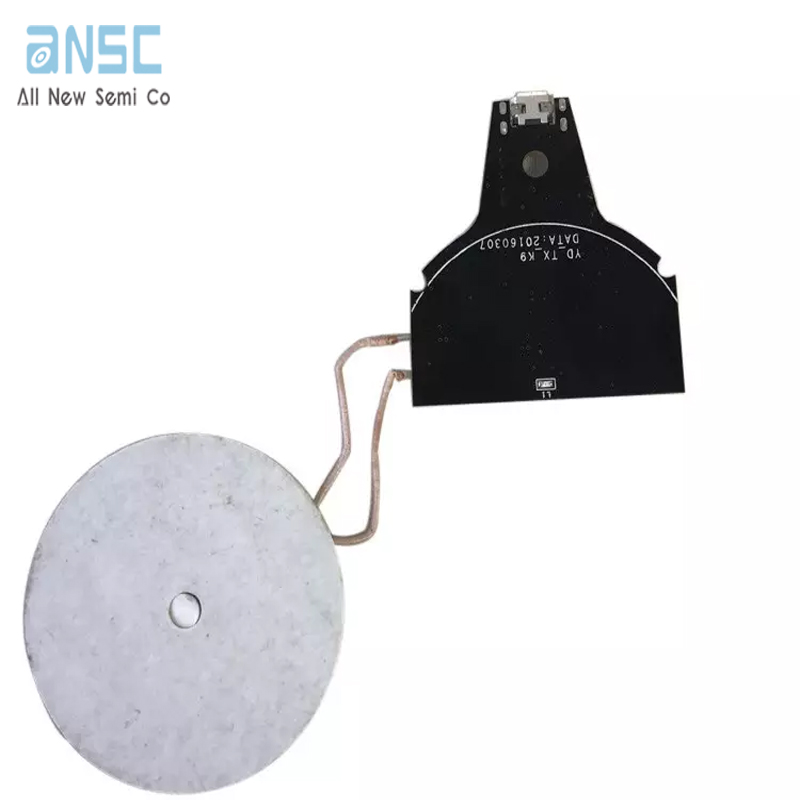

[K9]
Frame size:64*32*1mm
Coil size50*50*1MM
colour:Q5 [st scheme], 02A [st scheme], K9 [st scheme]
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
