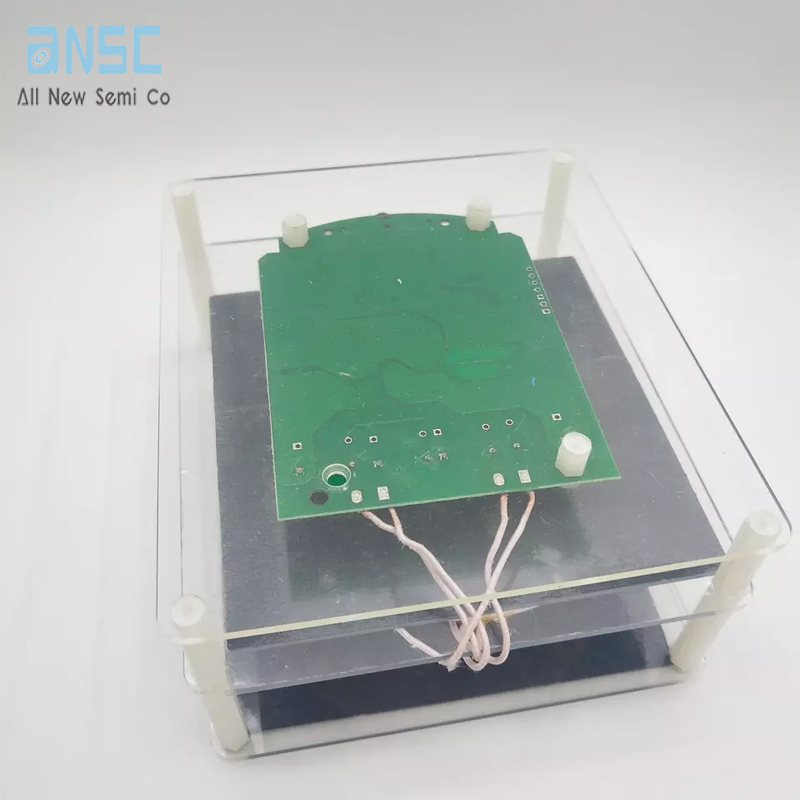

Fast charging solution for wholesale QI wireless charging module
Transmitting PCBA module at a distance of 30mm for various types of tables
Product Specification
| Single coil 10W is compatible with Qi-BPP4 standard design requirements and compatible with all QI wireless receiving products; it can provide up to 10W transmission capacity and provide fast wireless charging for Samsung machines. With over-current protection (OCP), under-voltage protection (UVP), foreign object detection (FOD), no-load protection and other functions; |
| Charging efficiency ≥70% max |
| With LED indicator. |
Product Feature
| Input voltage: DC19V / 1A |
| Wireless output voltage / current (max): slow charge 5V / 1000MA (max) fast charge DC9V / 1100mA (max) |
| Standby current: < 200mA |
| Wireless distance: 25mm ~ 35mm (max) (Do not place the device to be charged below 25mm) |
| Conversion efficiency: ≥70% max |
| Temperature protection: 70 ± 5 ° C |
| Protection function: over current protection, over heat protection, short circuit protection |
| Indication function: LED |
| Compatibility; compatible with QI wireless receiving products |
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
