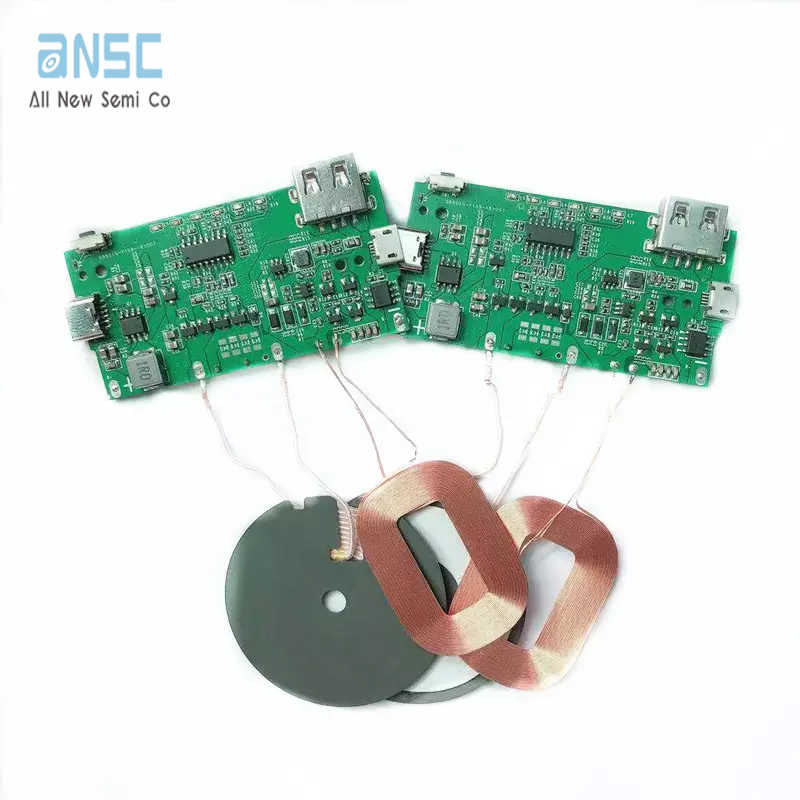

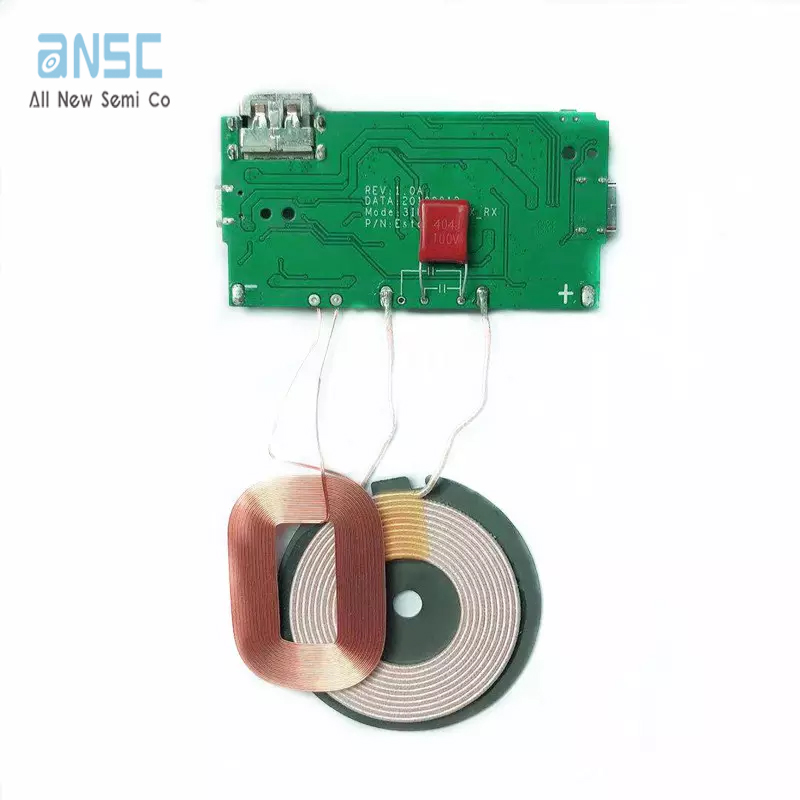

Custom / OEM / ODM mobile power wireless charging module pcba recoil technology supports simultaneous reception and transmission
Product Specification
| Passing QI certification, simultaneously charging and discharging the wireless charging module: |
| 1. Input voltage: DC9V1.5 ~ 2A, if the voltage exceeds this range, it will alarm and stop charging. |
| 2. Output voltage: 9V ± 0.1V, |
| 3. Charging current: 1200mAh |
| 4. Charging power: can reach 10W |
| 5. Conversion efficiency: greater than 73% |
| 6. Transmission distance: 10mm, recommended sending and receiving distance 2mm ~ 4mm |
| 7. Standby power consumption: average power consumption is less than 50mW |
| 8. Over-temperature protection: When the temperature is higher than 60 ° when charging, it will automatically stop charging for 1 minute, and then recharge after the temperature drops. |
| 9. Overcurrent protection: When the output current is greater than 2A during charging, it will automatically stop charging to prevent damage to the charger. |
| 10. Executive standard: Qi wireless charging standard |
| 11. Product certification: CE / FCC, compatible with QI certification standards |
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
