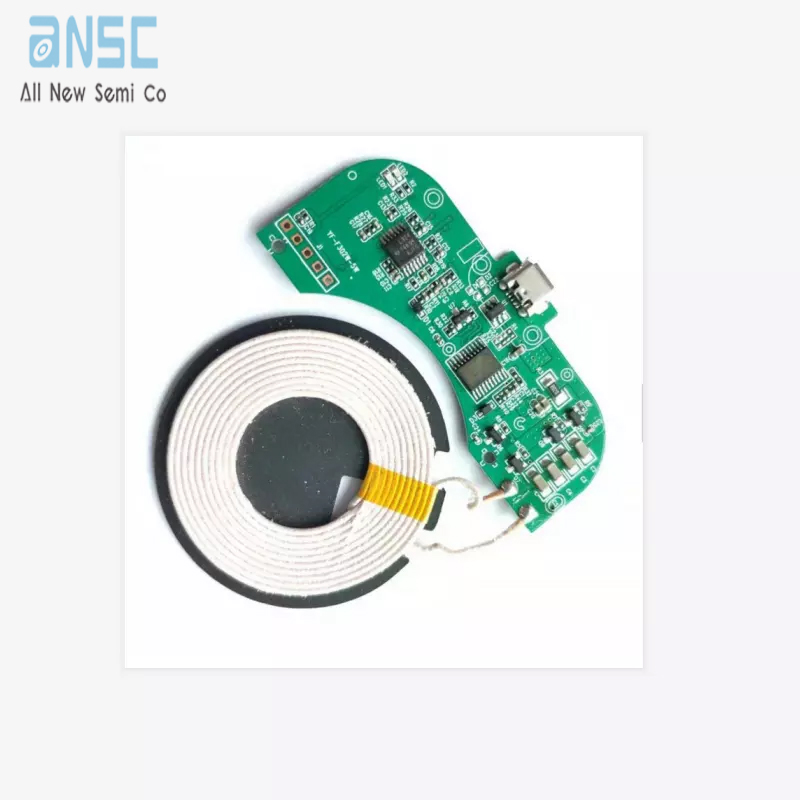

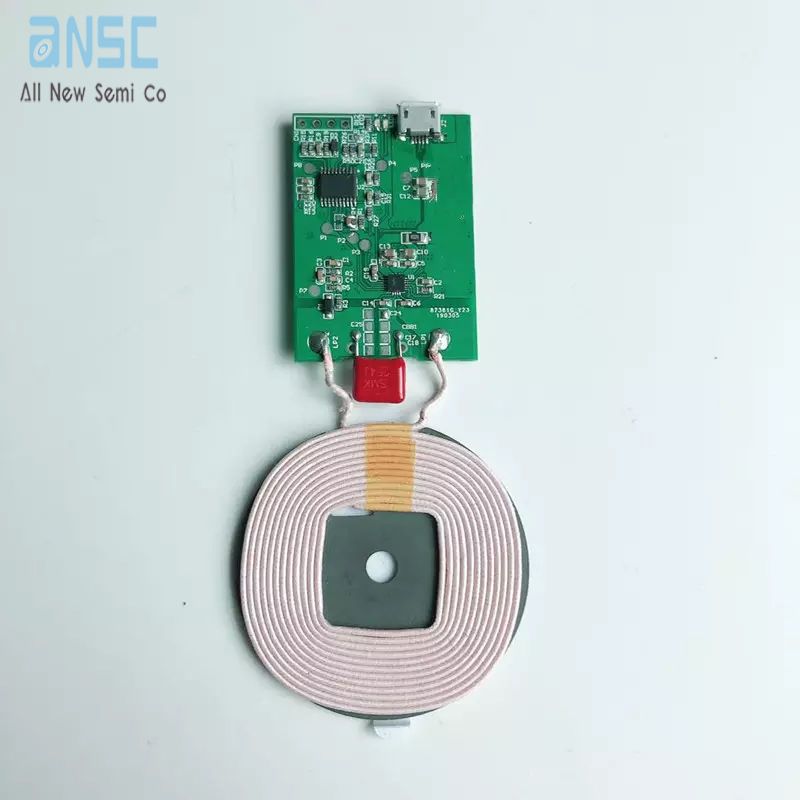

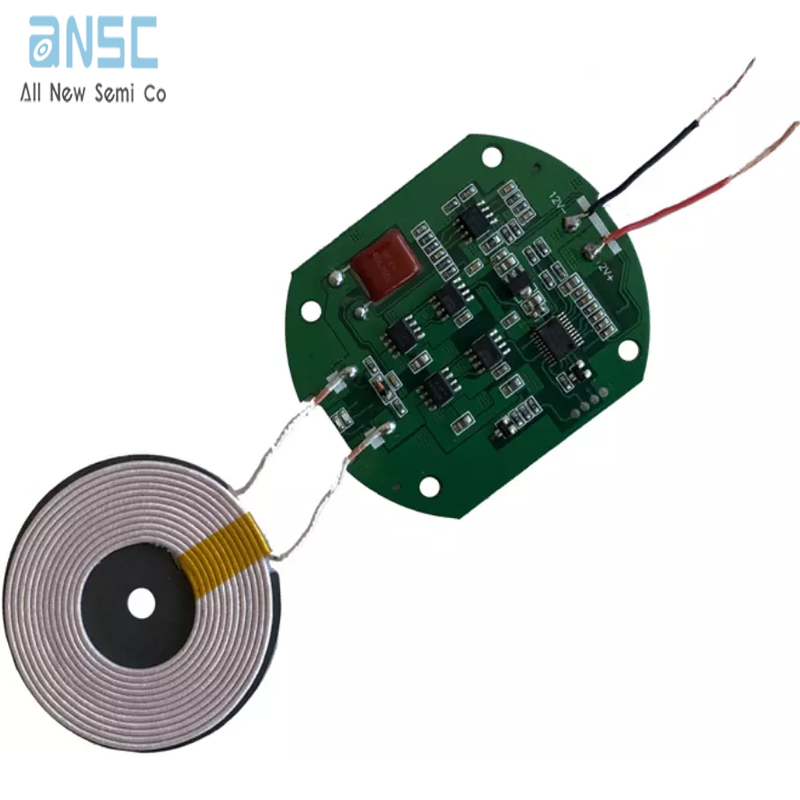

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad
Product Specification
| 1. Input voltage: DC9V1.5-2A, if the voltage exceeds this range, it will alarm and stop charging. |
| 2. Output voltage: 9V ± 0.1V |
| 3. Charging current: 1100mAh |
| 4. Charging power: up to 10W compatible with Apple 7.5W |
| 5. Conversion efficiency: greater than 73% foreign object detection with FOD |
| 6. Transmission distance: up to 10mm, the recommended sending and receiving distance is 2mm-4mm |
| 7. Standby power consumption: average power consumption is less than 50mW |
| 8. Over-temperature protection: When the temperature is higher than 60 ° when charging, it will automatically stop charging for 1 minute, and then recharge after the temperature drops. Normal 10W fast charging temperature is 40 degrees |
| 9, over-current protection: when the output current is greater than 2A when charging, automatically stop charging to prevent damage to charging |
| 10. Executive standard: Qi wireless charging standard |
| 11. Product certification: CE / FCC, compatible with QI certification standards |
| 12, MICRO interface |
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
