Product Description
5w wireless transmitting 5W wireless receiving mobile power USB
output triple wireless transmitting and receiving PCBA(Accept customization)
| 2.2 rated parameters | |||||
| Test conditions: ambient temperature 25 ° C. | |||||
| Test conditions | Rating | Inimum value | Maximum | Company | |
| Power consumption in standby mode | VCC = 5V, no load | Zero point seven four | Zero point five | One | mW |
| Working frequency | Adjust load and distance | / | One hundred and five | Two hundred and five | KHz |
| Transmission efficiency | VCC = 5V, bq51013xevm test | Seventy | Fifty | Seventy-six | % |
| Working voltage | 5W output | Five | Four point five | Five point five | V |
| Wireless output power | Fast mode | Five | Four point five | Five | W |
| USB output power | Constant voltage 4.75V | Ten point five | Ten | Twelve | W |
| Working distance | Bq51013xevm test | Six | One | Eight | mm |
| 3. Mechanical specifications | |
| 3.1 basic parameters | |
| PCB board size | 69*34*1.0mm |
| Component thickness on PCB | 3.9mm |
| Coil length | 15mm |
| Disk size | 49.5*49.5*1mm |
| Function and number: | |
| Product model: | Wireless transmission without interface protection cover, receiving PCBA with battery |
| Main functions: | |
| Standard Version: | WPC-1.2.4 |
| Product application: | compliant wireless charger |
| Charging type: | One to one charging in corresponding area |
| DC5V1A | |
| 6-8mm | |
| Charging current: | 1000mA |
| Transmitting power: | 5W |
| Working frequency: | 100-205KHz |
| Power conversion: | More than 75% |
| Charging mode: | Induction mode |
| Battery capacity: | 8000mAh |
| Power indication: | 1-4 LEDs |
| USB input: | 5V/2A |
| MICRUSB: | 5V/2A IN |
| Press the key to start the wireless charging |

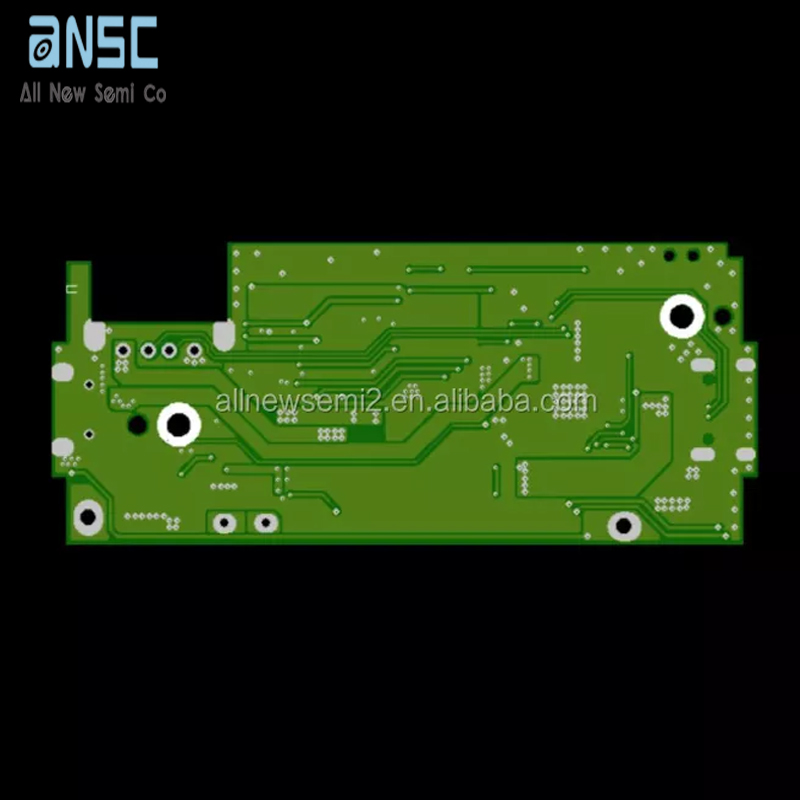

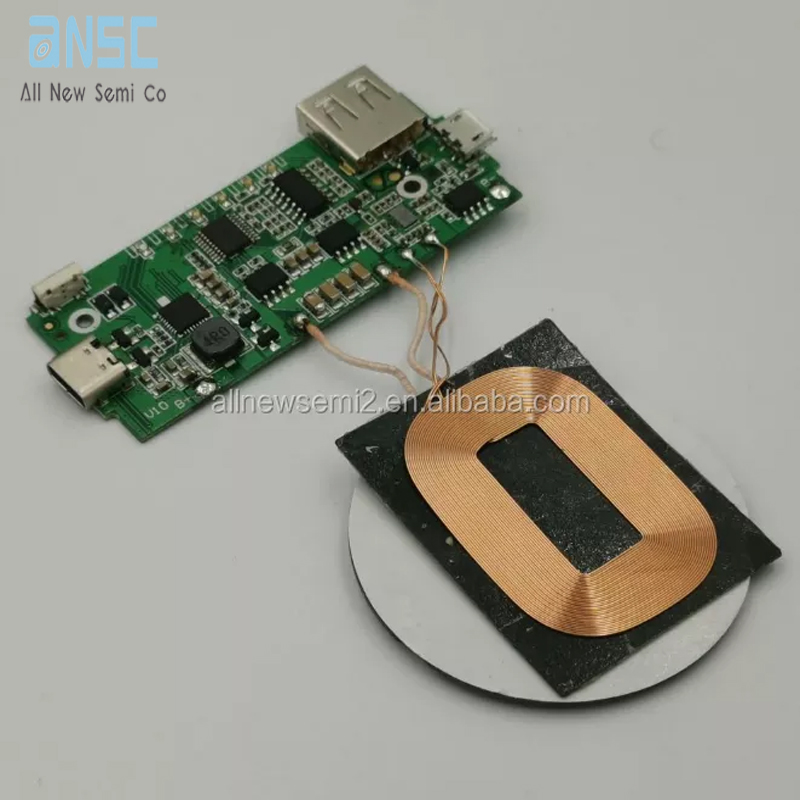

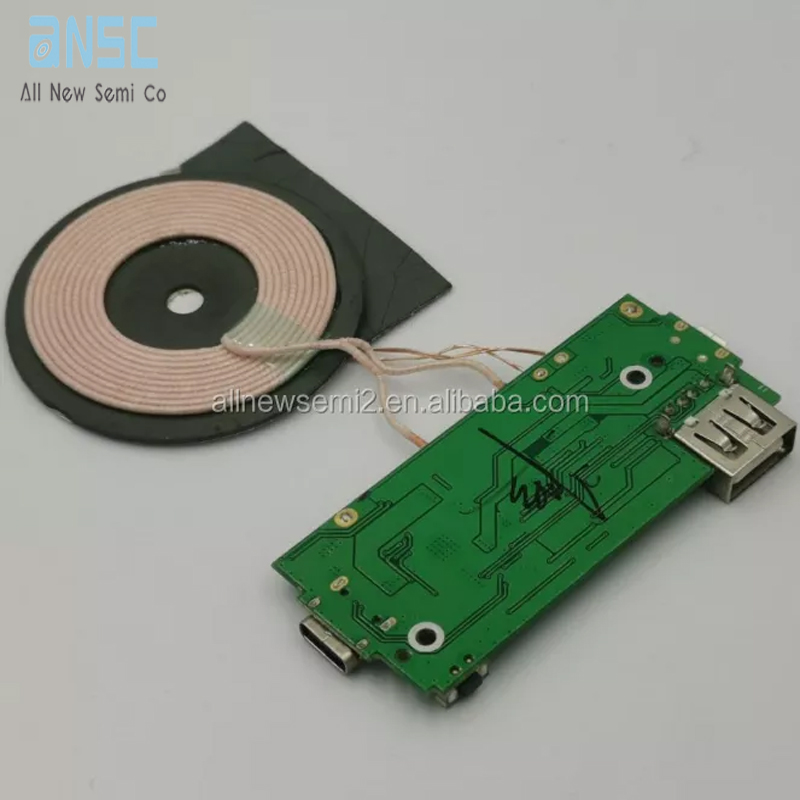

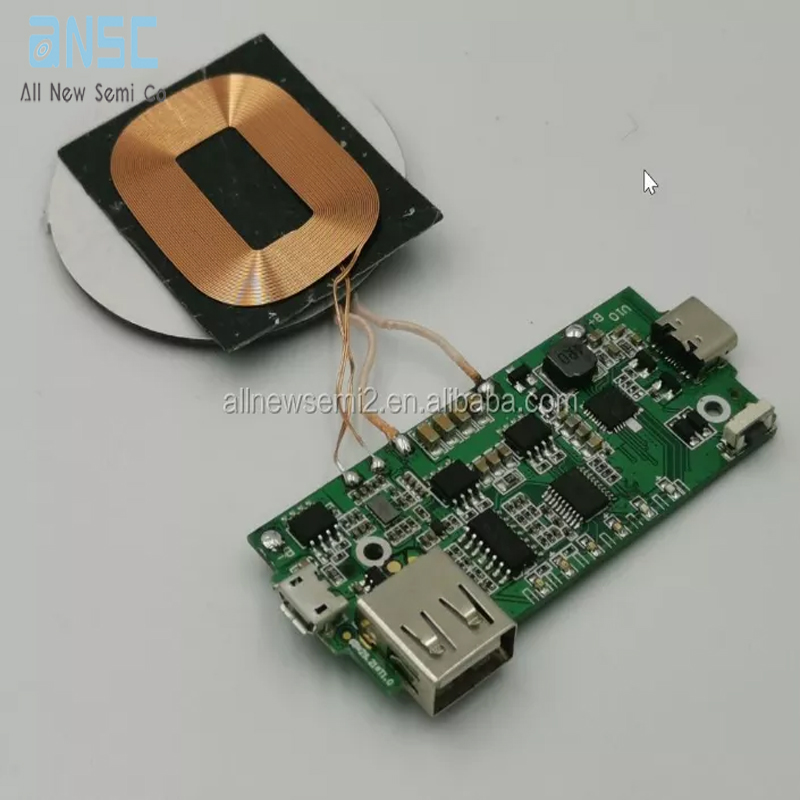

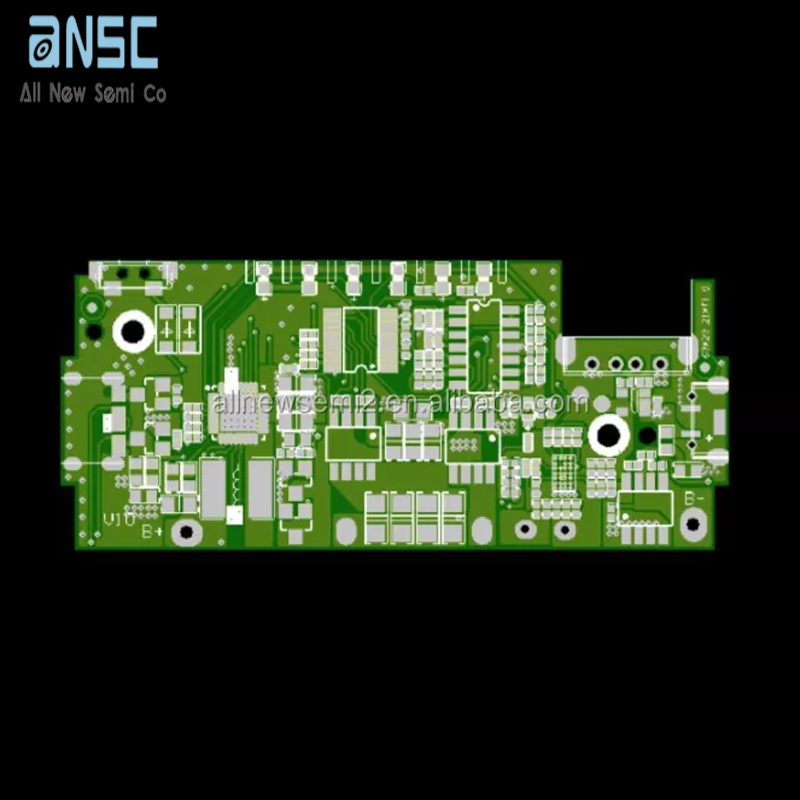

Actual image of the product
