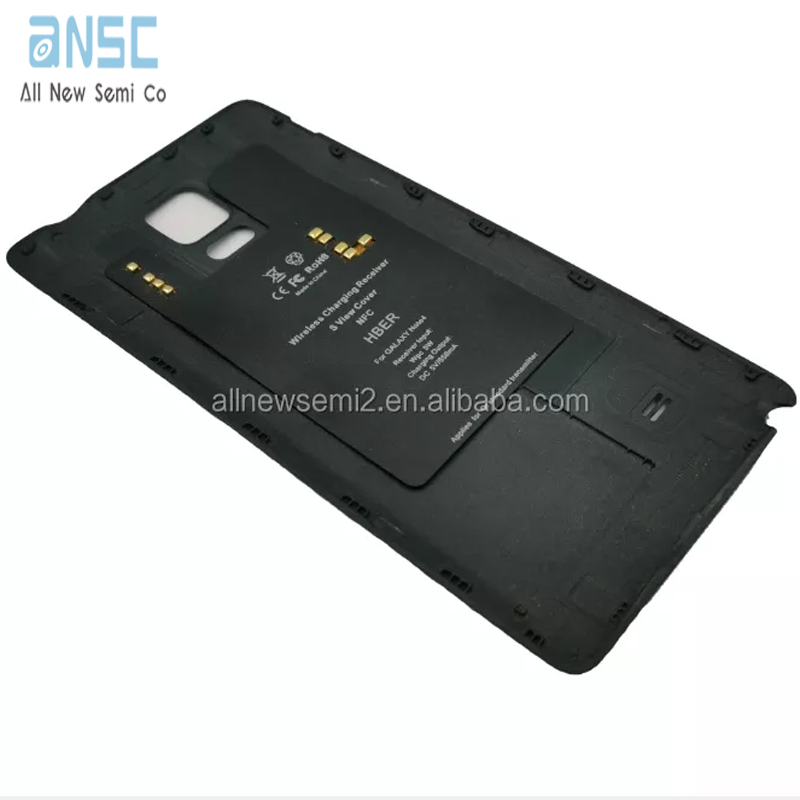

Qi wireless charger note4 wireless receiver back cover receiving sticker with built-in NFC function receiving chip(Accept customization)
Product Description
Main functions and parameters
Main functions: Wireless charging receiver
Standard Version: WPC-1.2.4
Product application: All wireless charging equipment in line with Qi standard
Charging type: One to one charging in corresponding area
Receiving voltage: DC5V2A
Receiving distance: 2-8mm
Charging current: 850mA
Transmitting power: 5W
Working frequency: 100-205KHz
Power conversion: More than 75%
Charging mode: Induction mode

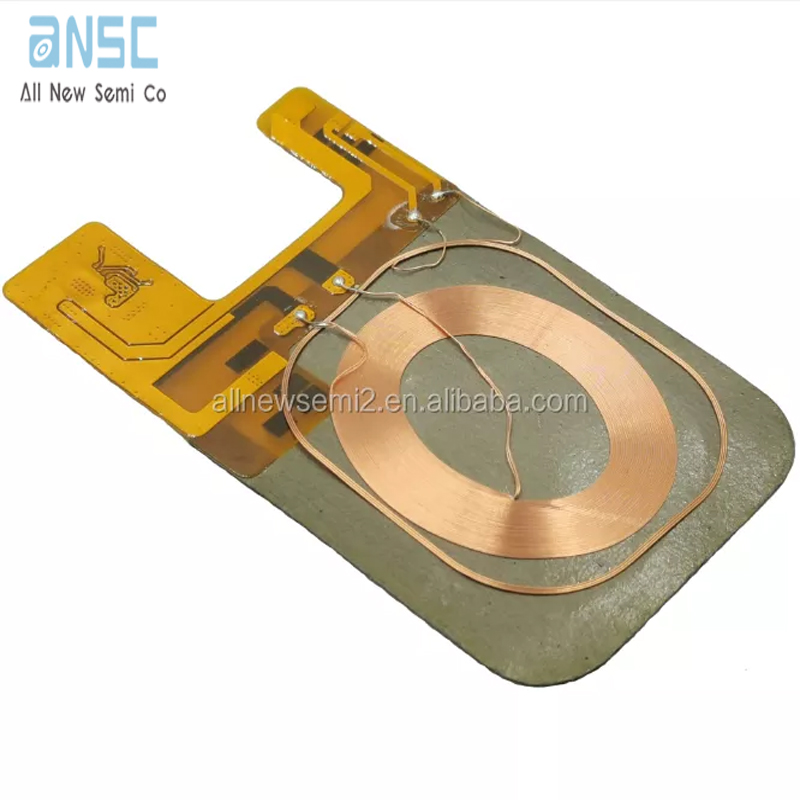

Built in NFC coil, supporting NFC function of mobile phone
Warm tips: this receiver needs to be equipped with standard Qi / 1.01.1 wireless transmitter
The mobile phone wireless charging receiver is light and convenient to carry. The material adopts silica gel self-adhesive to solve the passive charging of traditional data charging and keep away from winding
This is a customized product, please contact us for price and more details.
