Product Details
■Features
1. High reliability type (PC900VQ)
2. Normal OFF operation, open collector: 5 000Vrms)
3. TTL and LSTTL compatible output
4. Operating supply voltage VCC: 3 to 15V
5. High isolation voltage between input and output (Viso: 5 000Vrms)
6. Recognized by UL, file No. E64380
■Applications
1. Isolation between logic circuits
2. Logic level shifters
3. Line receivers
4. Replacements for relays and pulse transformers
5. Noise reduction
6. Recognized by UL, file No. E64380
Product Description
| Type# | Description |
| ANSC PART# | PC900V |
| Ihs Manufacturer | SHARP CORP |
| Package Description | DIP-6 |
| Additional Feature | WITH SIGNAL PROCESSING CIRCUIT, UL RECOGNIZED, OPEN COLLECTOR |
| Configuration | COMPLEX |
| Forward Current-Max | 0.05 A |
| Hysteresis Ratio-Nom | 0.7 |
| Isolation Voltage-Max | 5000 V |
| Number of Elements | 1 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-25 °C |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER |
| Supply Voltage-Min | 3 V |
| Terminal Finish | Tin/Lead (Sn/Pb) |
Product Photos

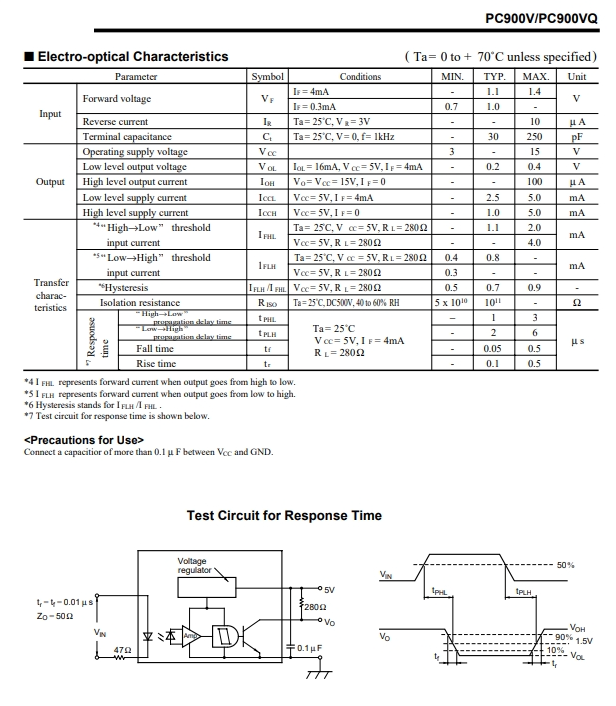

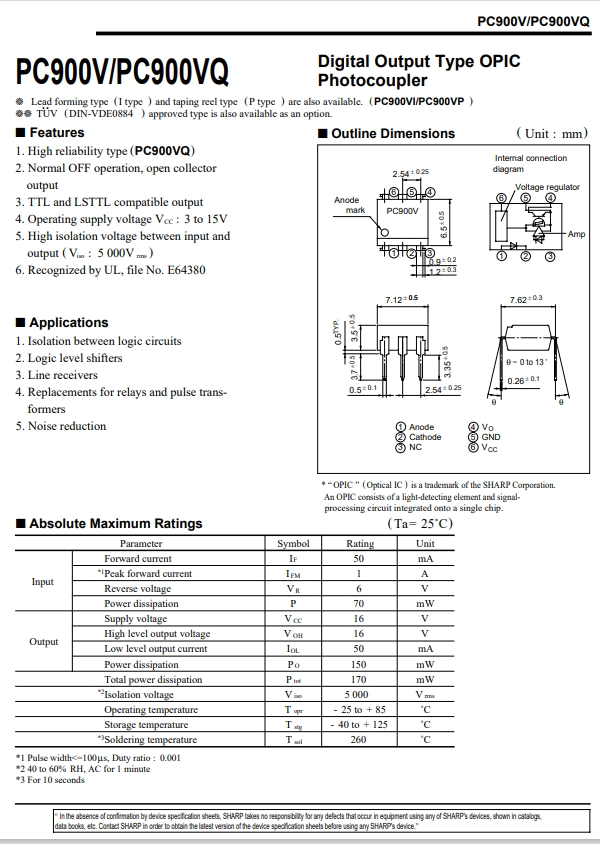

Product datasheet
For more information, please download
