Product Description
Design of PCBA scheme development circuit board for bus fan
PRODUCI PARAMETERS
Applicable products: cooling fan
Suitable motor: 54 silicon steel sheet outer rotor motor
Power supply voltage: 24 V
Output power: max48w
Output current:Motor speed < 4000rpm
Motor control mode: single phase square wave
The number of pole pairs of the adaptive motor is 4 slots and 4 poles
Product performance: EMC test, over-current protection, over-voltage protection
model:XT56-24
Mechanical rigidity:rigidity
Number of layers:two-sided
base material:copper
Insulating material:Organic resin
Insulation thickness:Conventional board
Flame retardant properties:VO board
Processing technology:Electrolytic foil
Reinforcing material:Glass fiber cloth base
Insulating resin:Epoxy resin (EP)
Product nature:New products
Is cross border export exclusive for supply:no:Specifications:Cooling fan plate of bus fan

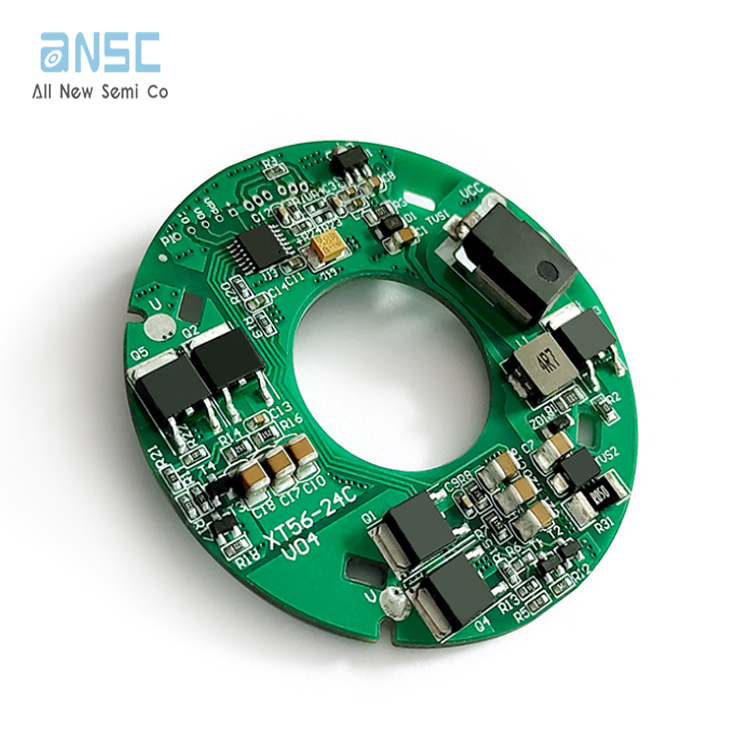

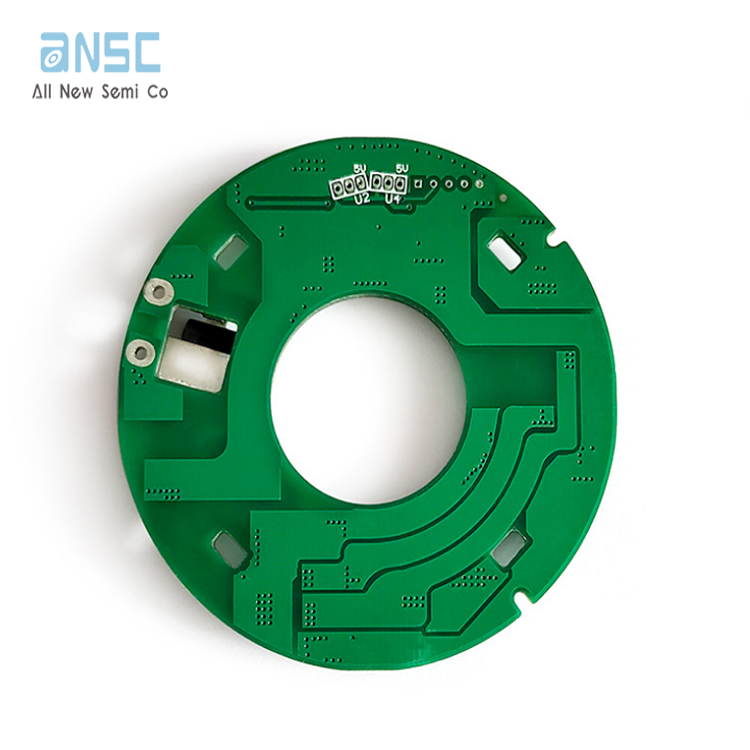

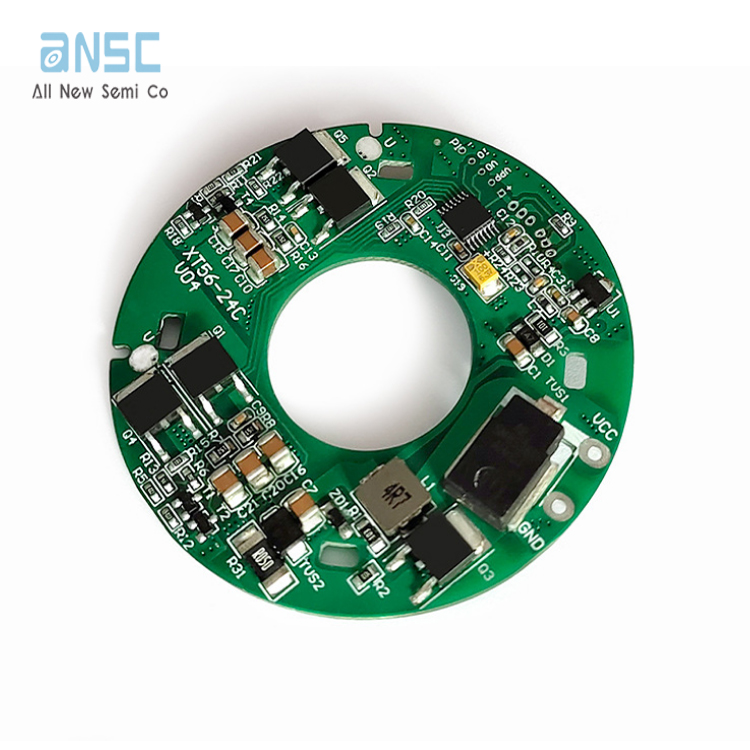

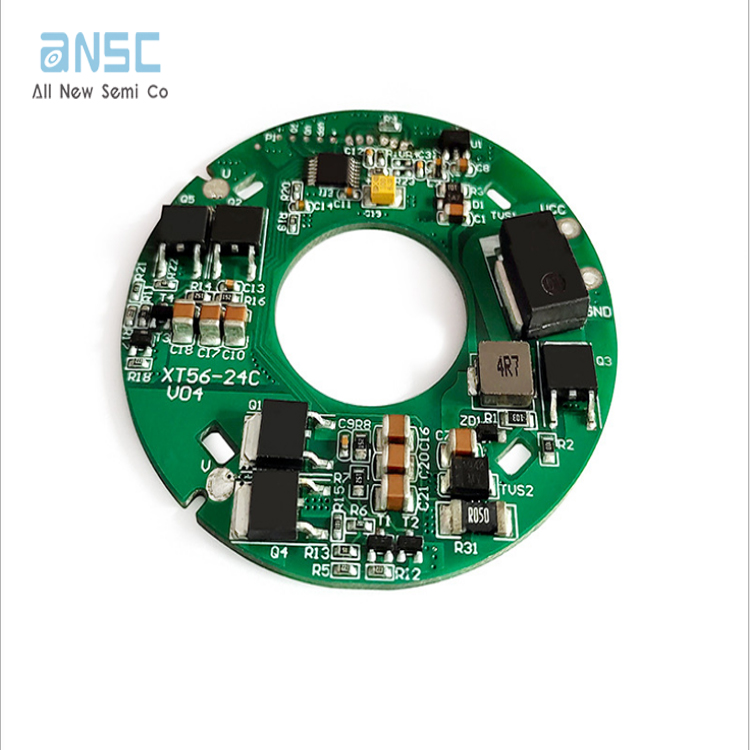

Actual image of the product
Advantages:
FAQ
