Product Details
description
The SN54ACT16244 and 74ACT16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The devices provide true outputs and symmetrical OE (active-low) output-enable inputs.
The 74ACT16244 is packaged in TI’s shrink small-outline package, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.
The SN54ACT16244 is characterized for operation over the full military temperature range of –55°C to 125°C.
The 74ACT16244 is characterized for operation from –40°C to 85°C.
● Members of the Texas Instruments Widebus? Family
● Inputs Are TTL-Voltage Compatible
● 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
● Flow-Through Architecture Optimizes PCB Layout
● Distributed VCC and GND Pin
Configurations Minimize High-Speed
Switching Noise
● EPIC? (Enhanced-Performance Implanted CMOS) 1-μm Process
● 500-mA Typical Latch-Up Immunity at 125°C
● Package Options Include Plastic Shrink
Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages, and 380-mil
Fine-Pitch Ceramic Flat (WD) Packages
Using 25-mil Center-to-Center Pin Spacings
Product Description
ANSC PART# | ANSC- SNJ54LS08J |
Part# | SNJ54LS08J |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Logic Gates and Inverters |
Mfr | Texas Instruments |
Series | 54LS |
Packaging | Tube |
Part Status | Active |
Logic Type | AND Gate |
Number of Circuits | 4 |
Number of Inputs | 2 |
Features | - |
Voltage - Supply | 4.5V ~ 5.5V |
Current - Quiescent (Max) | 8.8 mA |
Current - Output High, Low | 400μA, 4mA |
Input Logic Level - Low | 0.7V |
Input Logic Level - High | 2V |
Max Propagation Delay @ V, Max CL | 20ns @ 5V, 15pF |
Operating Temperature | -55°C ~ 125°C |
Mounting Type | Through Hole |
Supplier Device Package | 14-CDIP |
Package / Case | 14-CDIP (0.300", 7.62mm) |

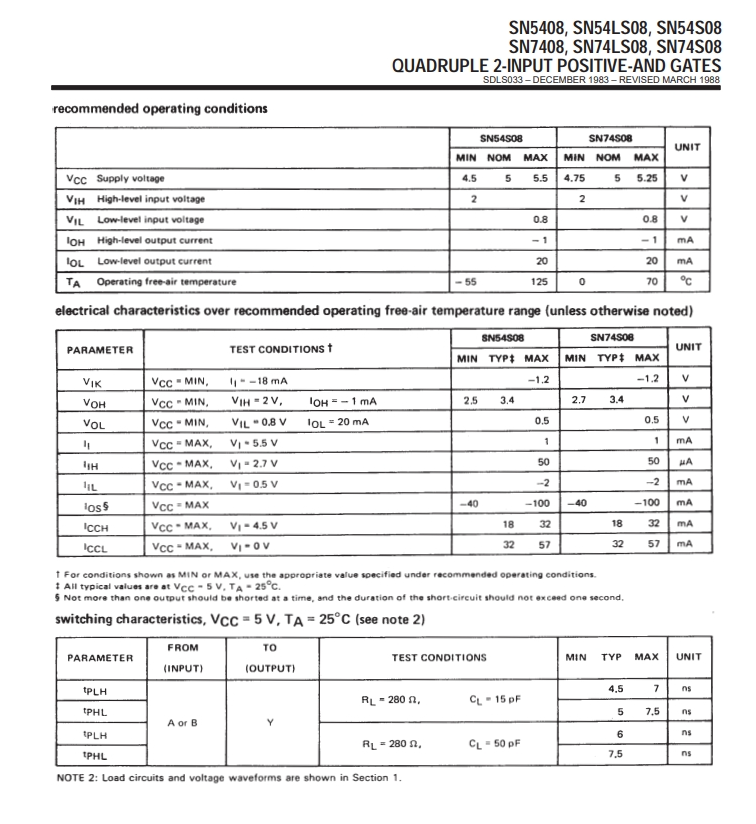

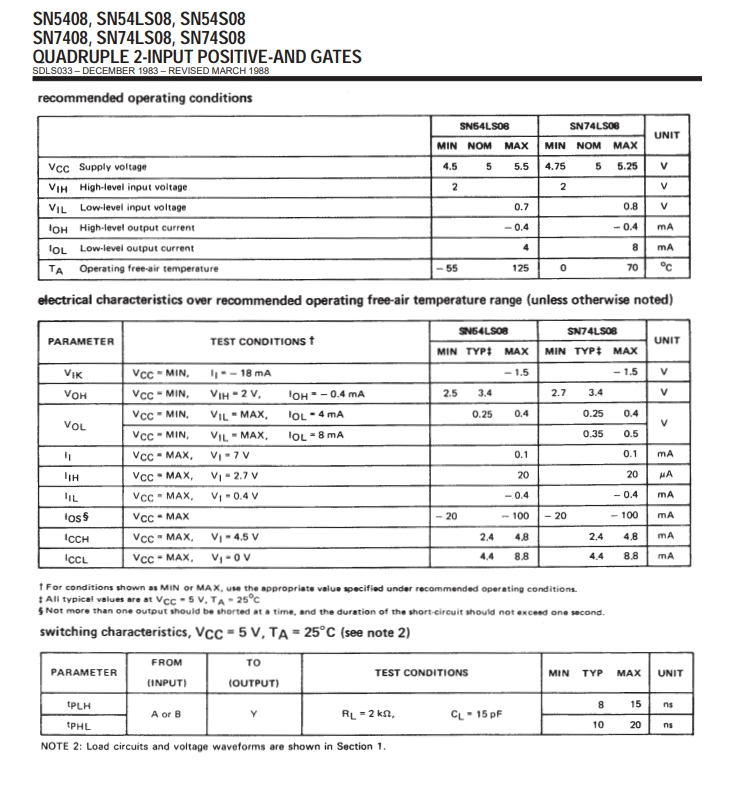

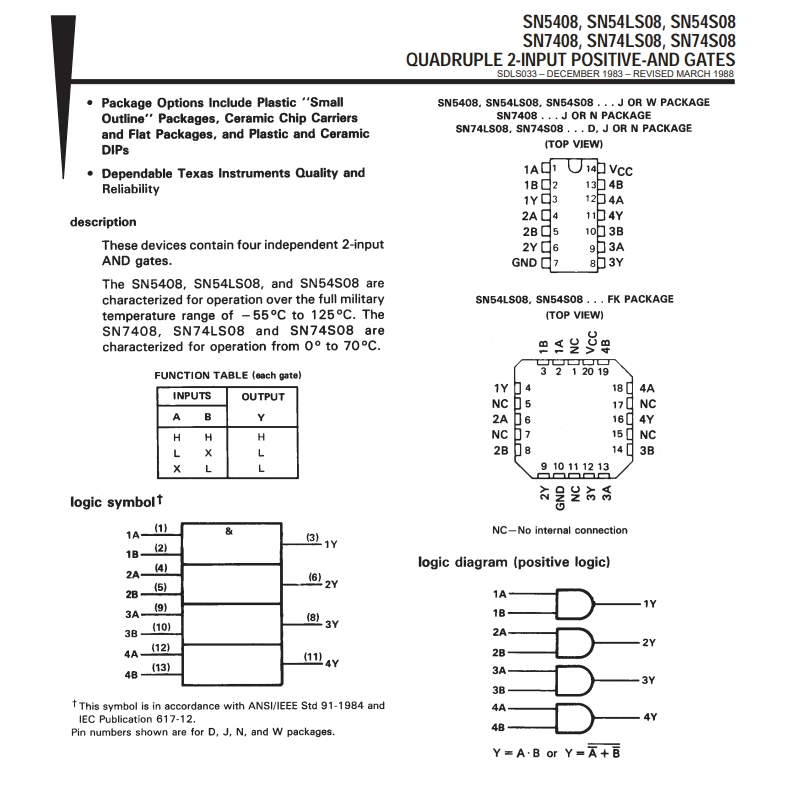

Product datasheet
For more information, please download
