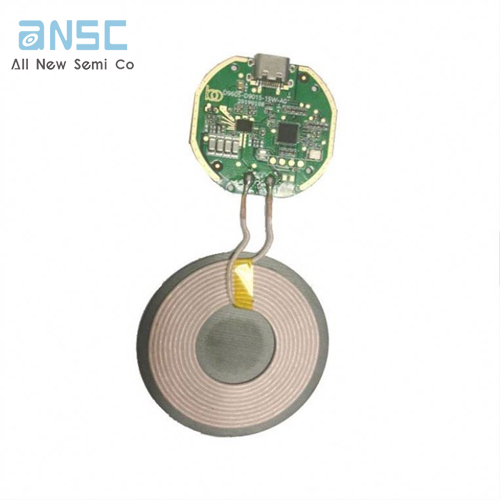

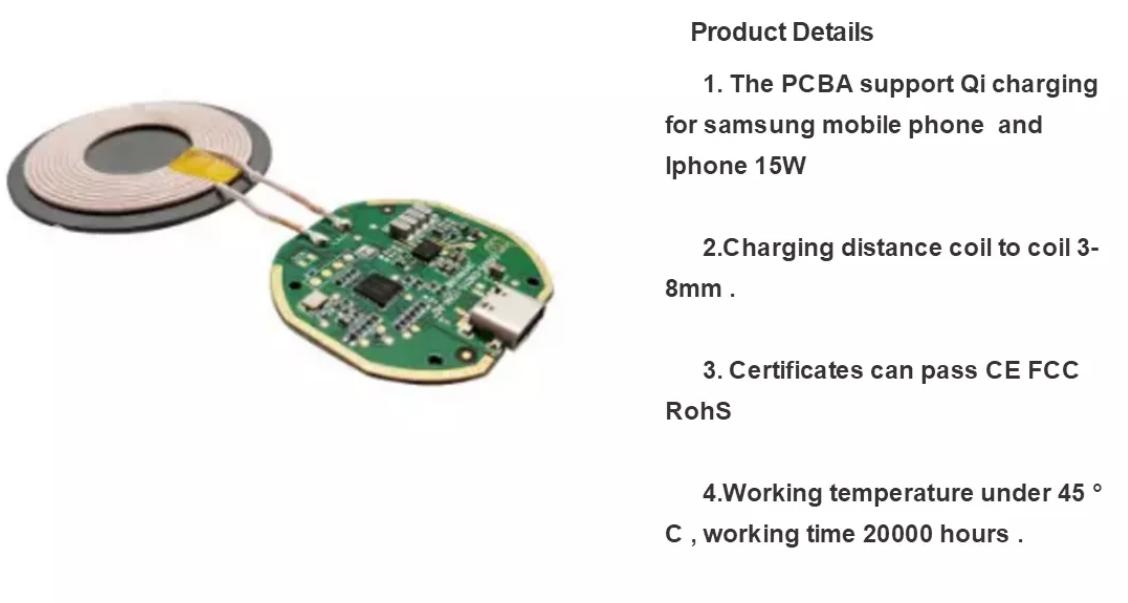

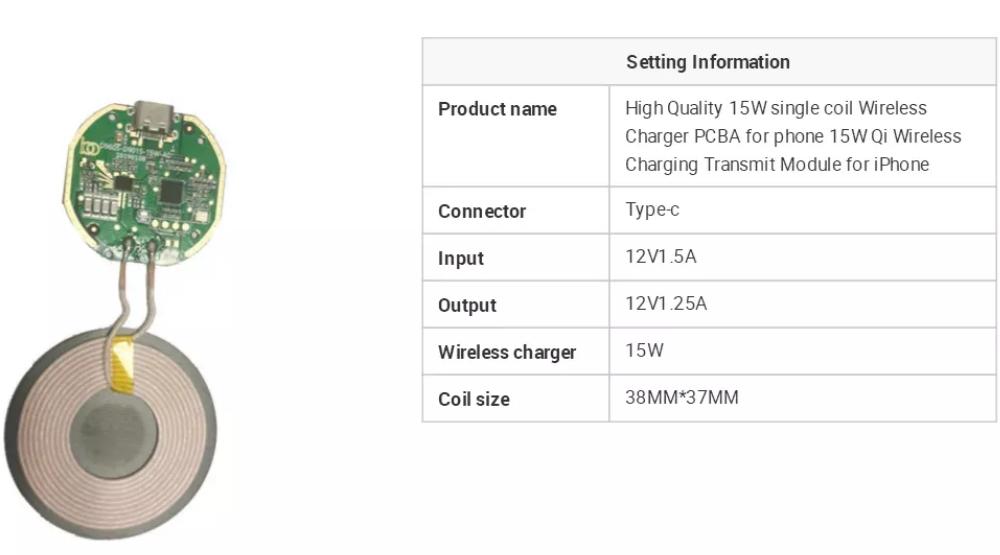

| OEM ODM customized High Quality 15W single coil Wireless Charger PCBA for phone 15W Qi Wireless Charging Transmit Module for iPhone |
| Product Specification |
| Use:Mobile Phone, Mobile Phone |
| Type:Electric, Electric |
| Place of Origin:Guangdong, China, Shenzhen, China (Mainland) |
| Port:1 x USB, 1 x USB |

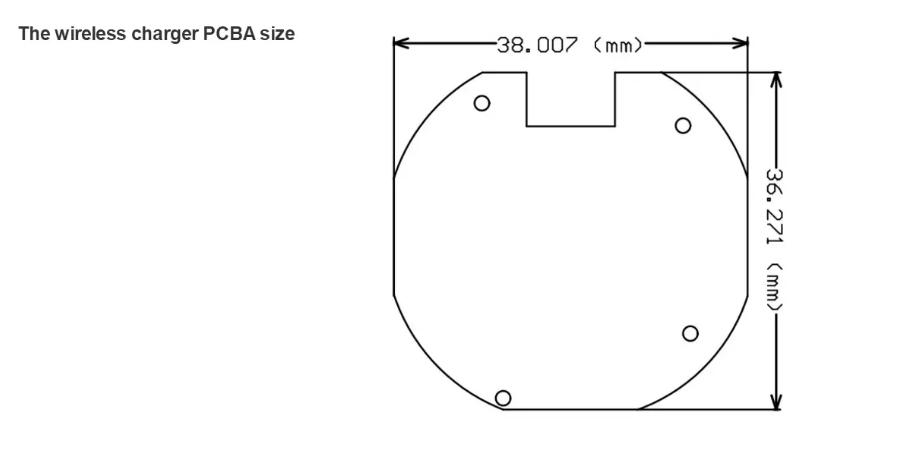

| Coil size:can be customized |

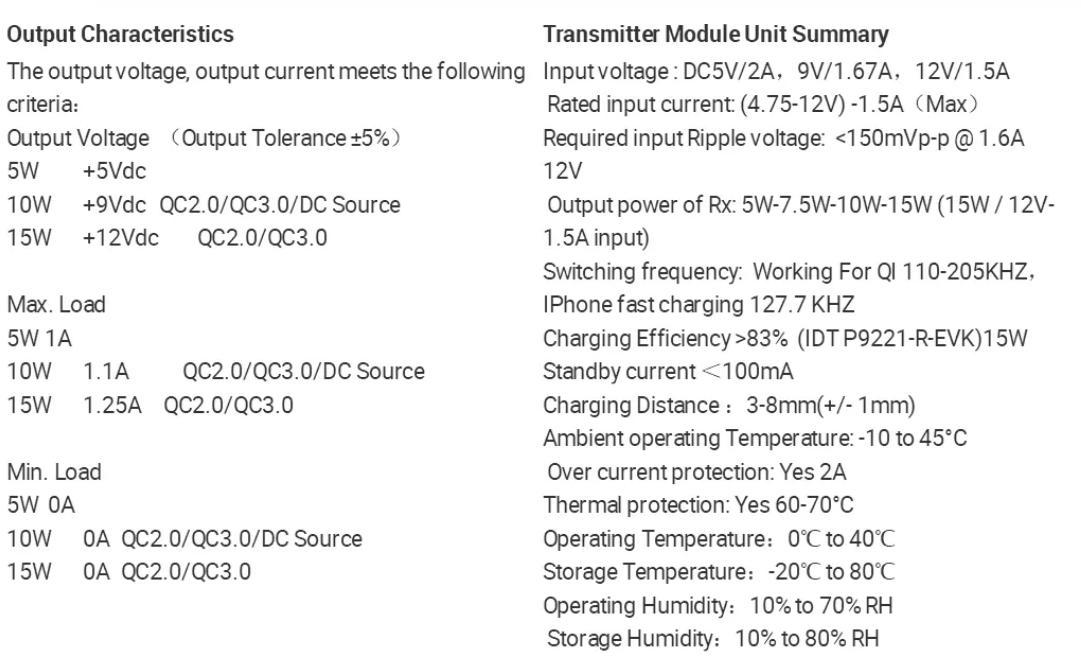

| Input power:12V/1.5A |
| Output:12V-1.25A |
| Transmitting distance:5-8mm |
|
| Product Feature |

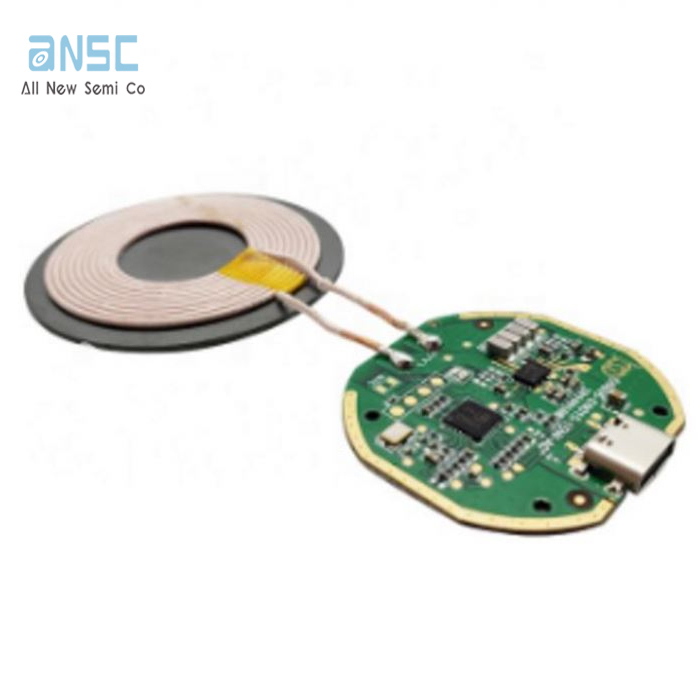

| This document specifies the technical specification of the HG-15W-TXD9015 transmitter module. 15W-TXD9015 transmitter module consists of the 50mm MPA2 coil (see later description) with an integrated electronics. This module compatible WPC1.2.4 QI middle power power charging standard . |
| The 15W-TXD9015 transmitter module offers a Coil-to-coil charging distance up to 3-8mm(+/- 1mm). |
| The 15W-TXD9015 transmitter module accepts QC3.0 Qualcomm quick-charge Adapters which provides 12V1.6A input on demand and support the receiver power output Max 15W . |
| Thermal management system is designed to stop power transfer when the sense temperature is exceeding safety threshold (65℃)while auto-resume mechanism would rescan the device when the temperature cool down to safety level. |
