Product Details
|

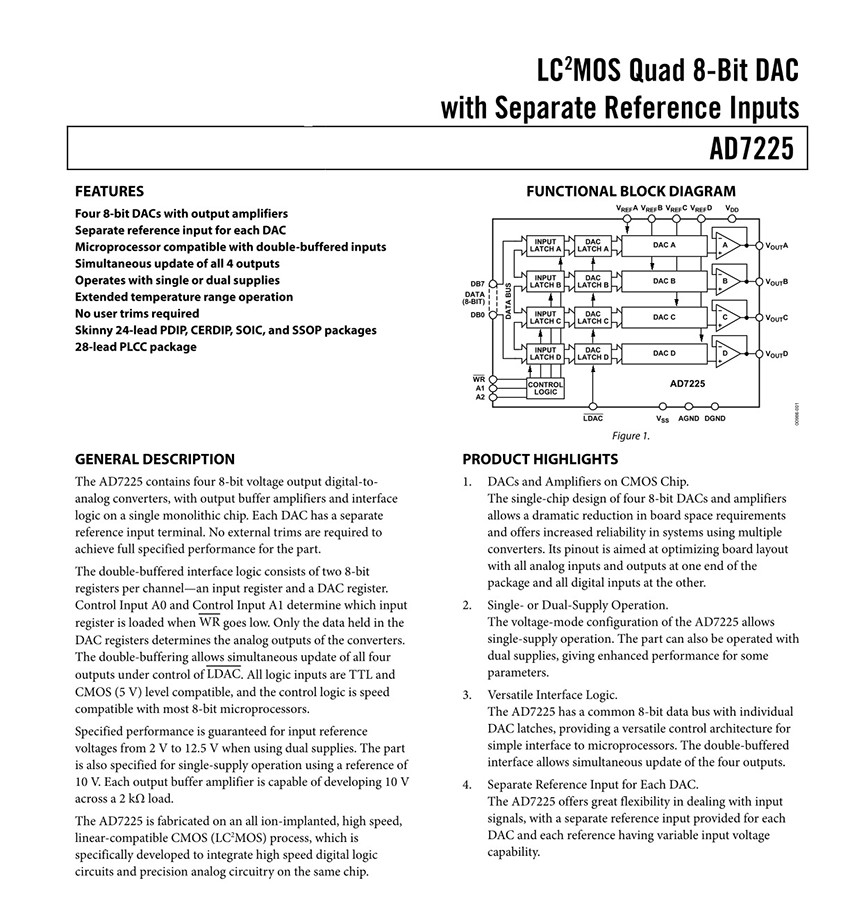

GENERAL DESCRIPTION The AD7225 contains four 8-bit voltage output digital-to-analog converters, with output buffer amplifiers and interface logic on a single monolithic chip. Each D/A converter has a separate reference input terminal. No external trims are required to achieve full specified performance for the part. FEATURES Four 8-Bit DACs with Output Amplifiers Separate Reference Input for Each DAC mP Compatible with Double-Buffered Inputs Simultaneous Update of All Four Outputs Operates with Single or Dual Supplies Extended Temperature Range Operation No User Trims Required Skinny 24-Pin DIP, SOIC and 28-Terminal Surface Mount Packages |
Product Description
| Type | Description |

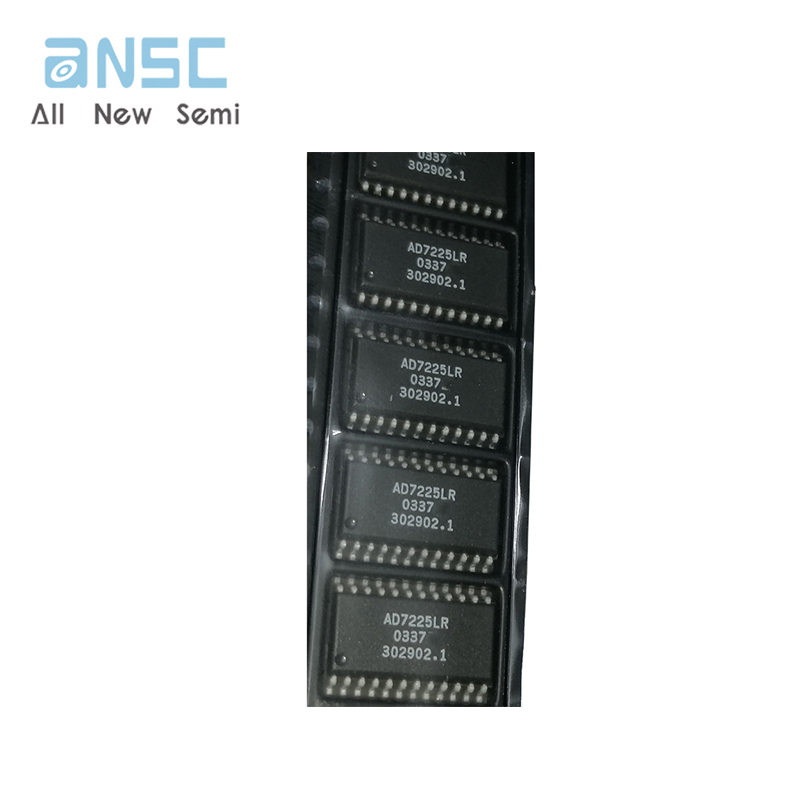

| ANSC PART# | ANSC - AD7225LR |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 4μs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) |
±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | AD7225 |
