Product Details
|
2 Watt SMD Single & Dual Output Unregulated Converters Description Compared to standard 2 Watt packages, space savings of 80% respectively 77% are achieved by these RTS & RTD 2 Watts SMD-Miniature DC/DC Converters. They have been specifically designed for applications where board space is at a premium,since these 2 Watt converters have only a slightly larger foot print than conventional 1 Watt converters. Features ●1kVDC Isolation ●Internal SMD Construction ●UL94V-0 Package Material ●Toroidal Magnetics ●Efficiency to 85% |
Product Description
| Type | Description |
| ANSC PART# | ANSC- RTS-2405 |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | ECONOLINE RTS (2W) |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature |
-40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) |

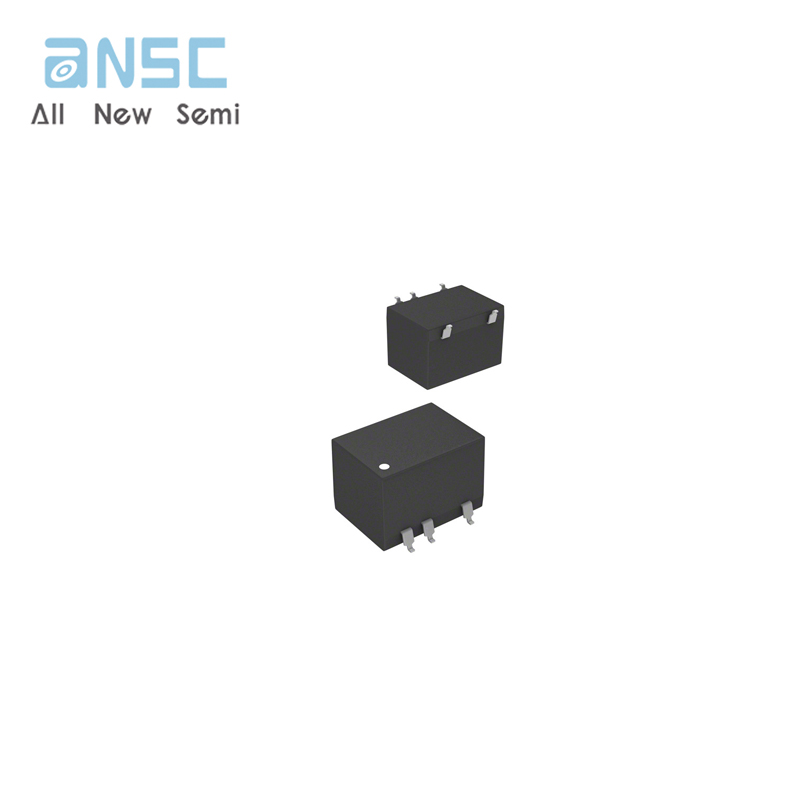

Actual image of the product
