Product Description
The ADUM1402ARWZ is a high-performance, unidirectional digital isolator from Analog Devices Inc.
This isolator is designed to provide reliable and efficient signal isolation in a variety of applications.
With its compact 16-SOIC package and surface mount design, it is ideal for use in space-constrained
systems.
Product Features
Unidirectional digital isolator with a data rate of 1Mbps
High common mode transient immunity of 25kV/μs
Isolation voltage of 2500Vrms
Operating temperature range of -40°C to 105°C
Nominal supply current of 11mA
Output current of 22mA
Propagation delay of 100ns
Pulse width distortion of 40ns
Rise and fall times of 2.5ns and 3ns, respectively
Product Applications
Industrial automation and control systems
Medical devices and equipment
Automotive systems and components
Aerospace and defense applications
Industrial sensors and transducers
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADUM1402ARWZ |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Original |
| Series | iCoupler? |
| Packaging | Tube |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 |
3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/μs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADUM1401 |

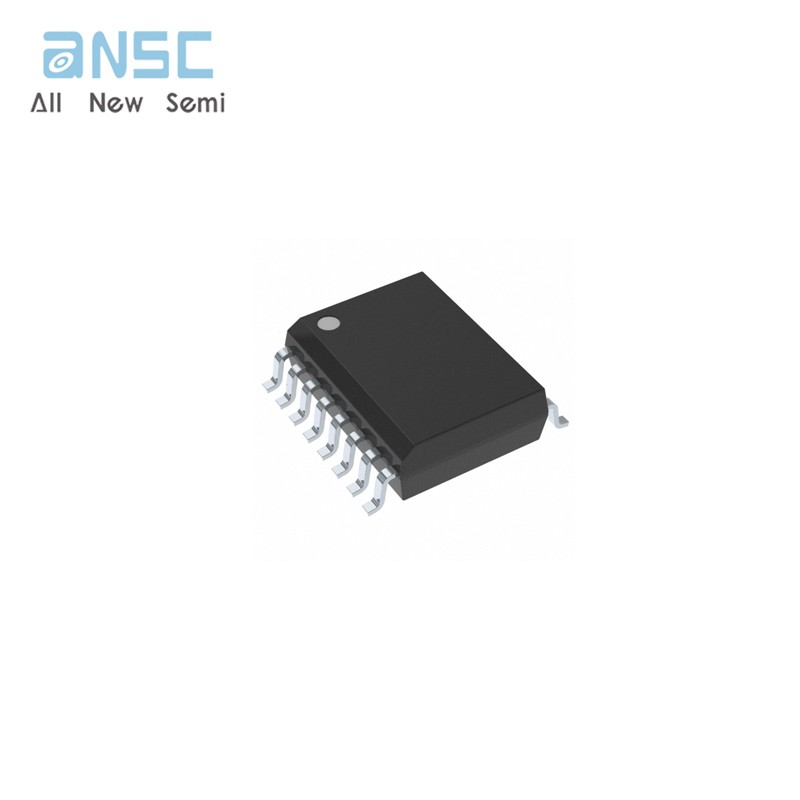

Product Photos
