Product Description
| Type# | Description |
| ANSC PART# | ANSC- MAX14523AATA+ |
| PART# | MAX14523AATA+ |
| Ihs Manufacturer | Original |
| Part Package Code | DFN |
| Package Description | HVSON, SOLCC8,.12,25 |
| Pin Count | 8 |
| Analog IC - Other Type | ANALOG CIRCUIT |
| Length | 3 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVSON |
| Package Equivalence Code | SOLCC8,.12,25 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.8 mm |
| Supply Current-Max (Isup) | 0.3 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 1.7 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3 mm |

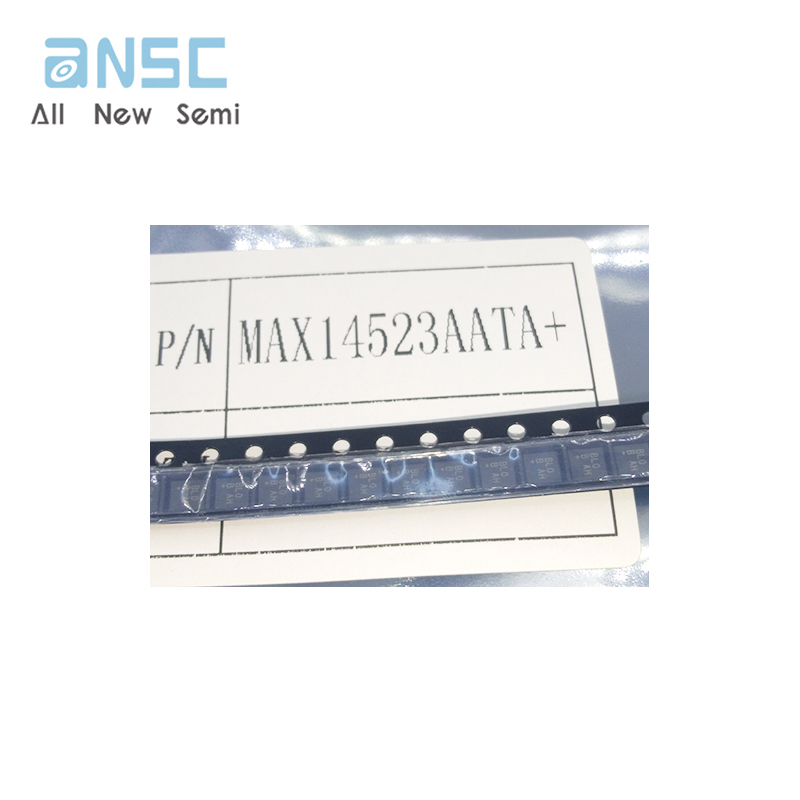

Product Photos

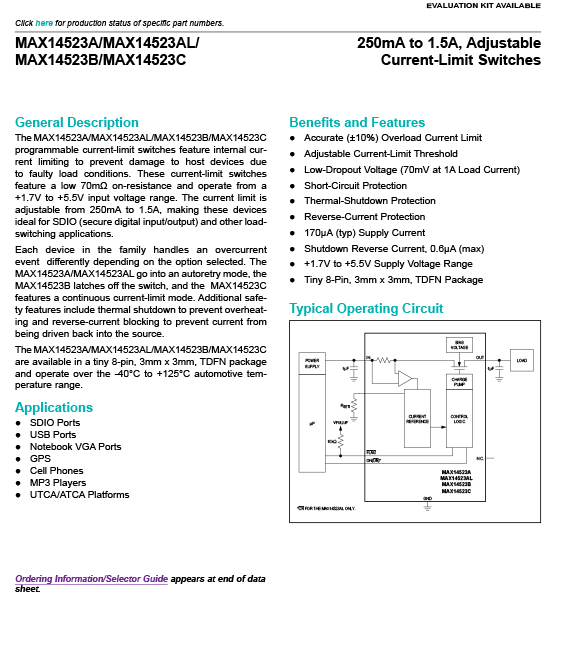

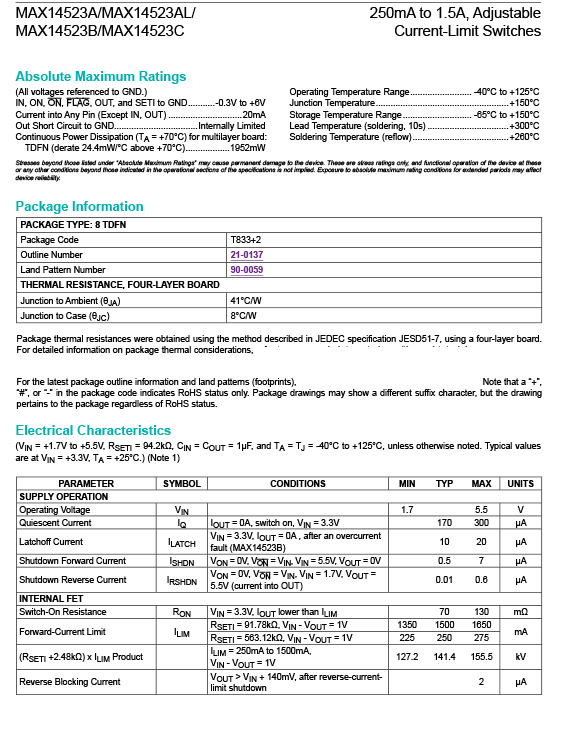

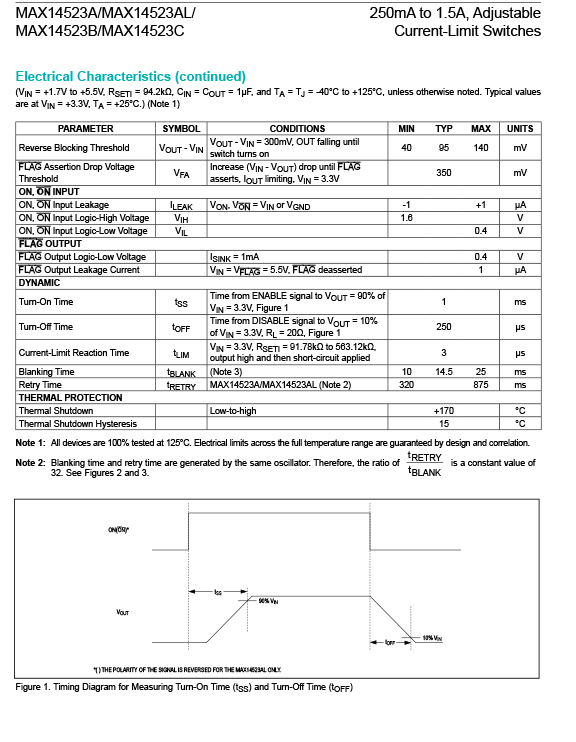

Product datasheet
