Product Details
|

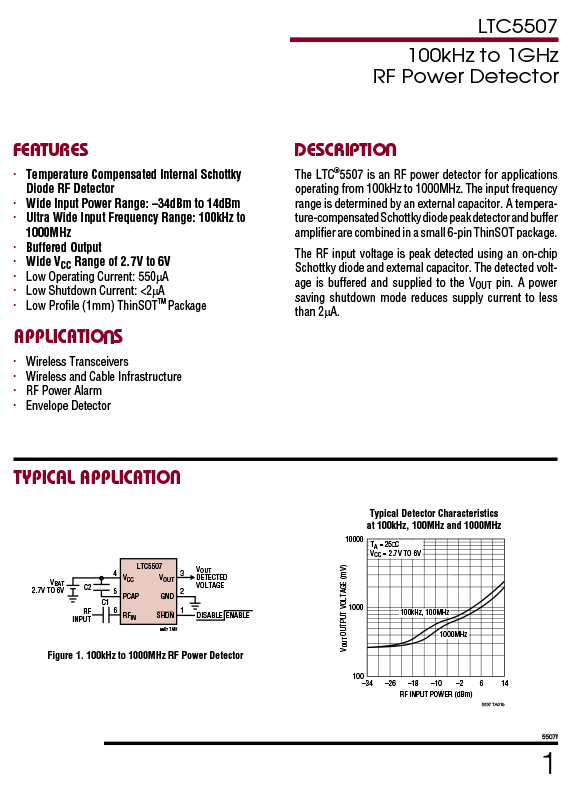

DESCRIPTION The LTC?5507 is an RF power detector for applications operating from 100kHz to 1000MHz. The input frequency range is determined by an external capacitor. A temperature-compensated Schottky diode peak detector and buffer amplifier are combined in a small 6-pin ThinSOT package. The RF input voltage is peak detected using an on-chip Schottky diode and external capacitor. The detected voltage is buffered and supplied to the VOUT pin. A power saving shutdown mode reduces supply current to less than 2μA. FEATURES ■ Temperature Compensated Internal Schottky Diode RF Detector ■ Wide Input Power Range: –34dBm to 14dBm ■ Ultra Wide Input Frequency Range: 100kHz to 1000MHz ■ Buffered Output ■ Wide VCC Range of 2.7V to 6V ■ Low Operating Current: 550μA ■ Low Shutdown Current: <2μA ■ Low Profile (1mm) ThinSOTTM Package APPLICATIONS ■ Wireless Transceivers ■ Wireless and Cable Infrastructure ■ RF Power Alarm ■ Envelope Detector |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LTC5507ES6 |
| Part# | LTC5507ES6 |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SOT-23 |

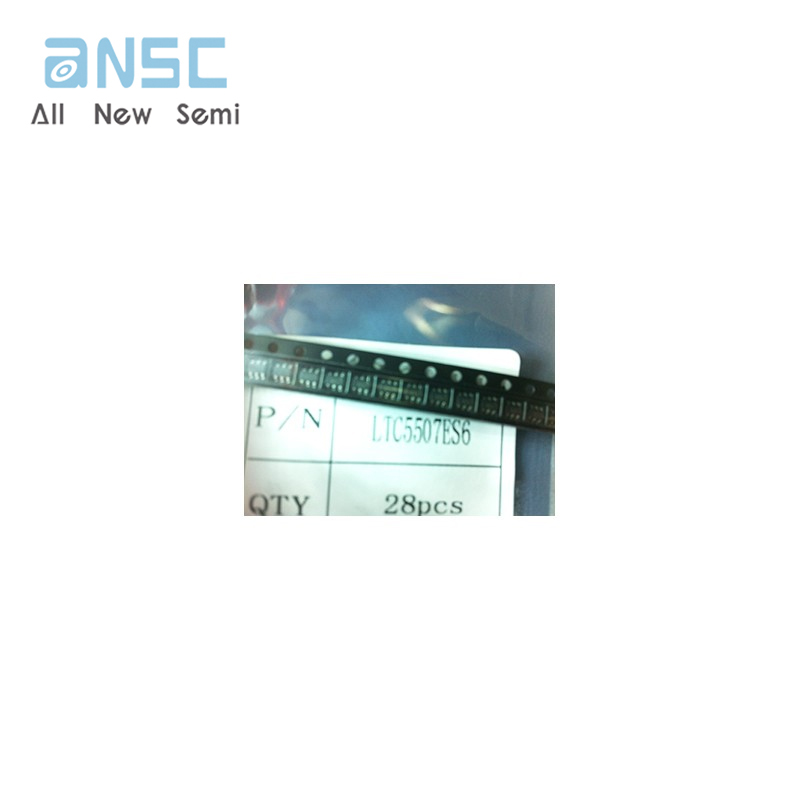

Product Photos

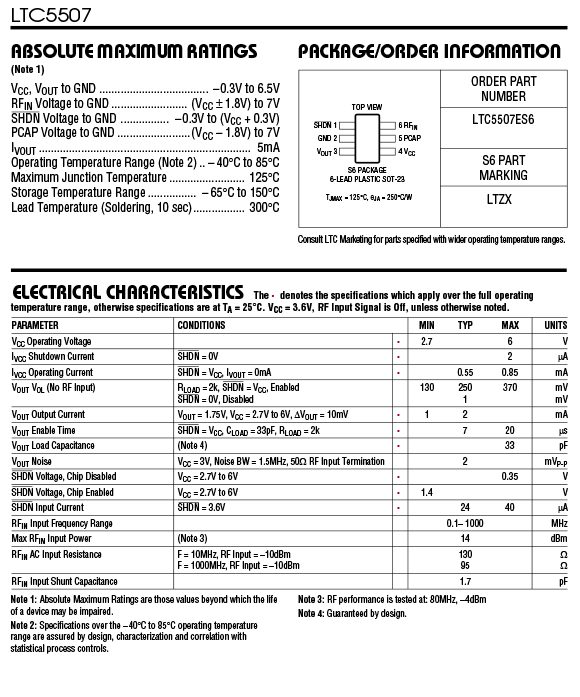

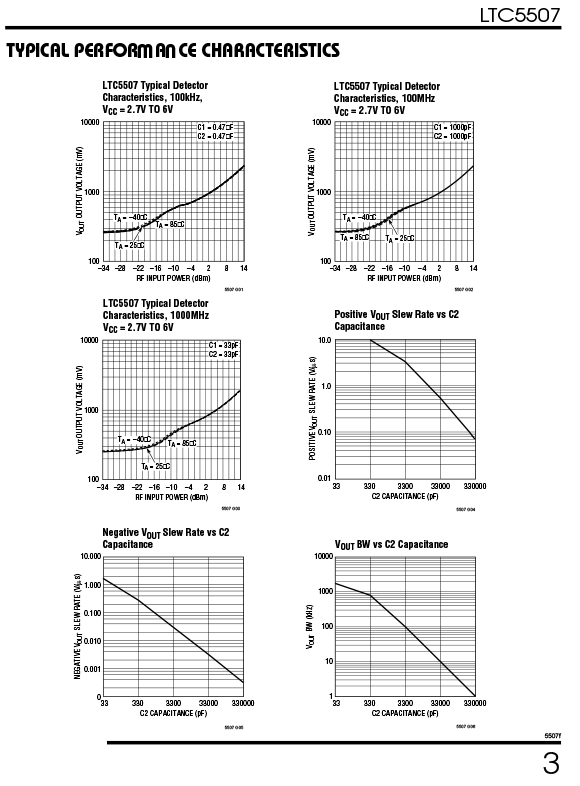

Product datasheet
For more information, please download
