Product Details
|
DESCRIPTION The LTC?1064 consists of four high speed, low noise switched-capacitor filter building blocks. Each filter building block, together with an external clock and three to five resistors can provide various 2nd order functions like lowpass, highpass, bandpass and notch. The center frequency of each 2nd order function can be tuned with an external clock, or a clock and resistor ratio. For Q ≤ 5, the center frequency range is from 0.1Hz to 100kHz. For Q ≤ 3, the center frequency range can be extended to 140kHz. Up to 8th order filters can be realized by cascading all four 2nd order sections. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed. FEATURES ■ Four Filters in a 0.3-Inch Wide Package ■ One Half the Noise of the LTC1059/LTC1060/ LTC1061 Devices ■ Maximum Center Frequency: 140kHz ■ Maximum Clock Frequency: 7MHz ■ Clock-to-Center Frequency Ratio of 50:1 and 100:1 Simultaneously Available ■ Power Supplies: ±2.375V to ±8V ■ Low Offsets ■ Low Harmonic Distortion ■ Customized Version with Internal Resistors Available APPLICATIONS ■ Anti-Aliasing Filters ■ Wide Frequency Range Tracking Filters ■ Spectral Analysis ■ Loop Filters |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LTC1064CS |
| Part# | LTC1064CS |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SOP-24 |

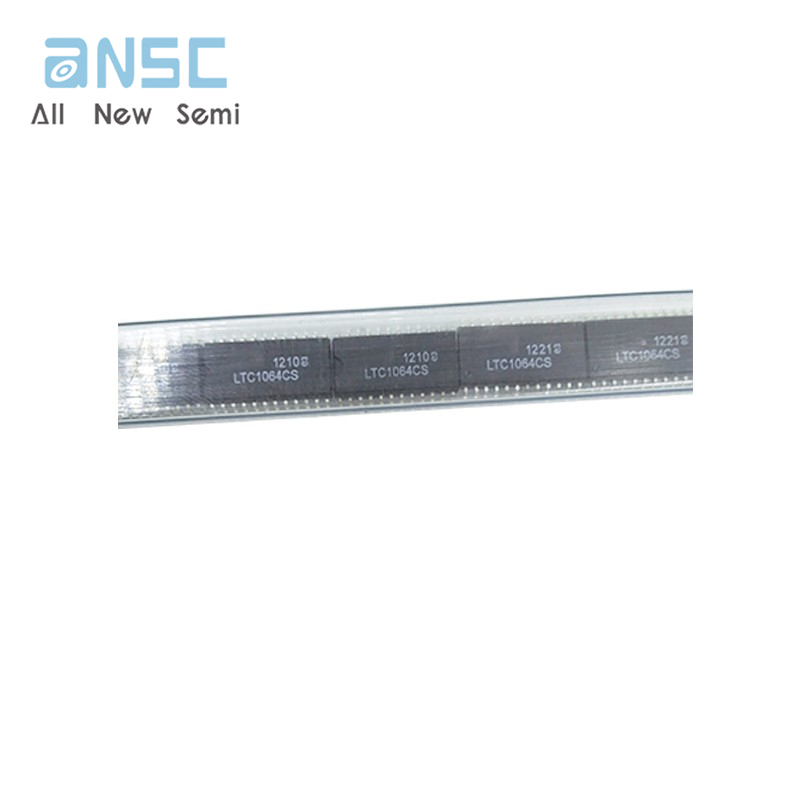

Product Photos

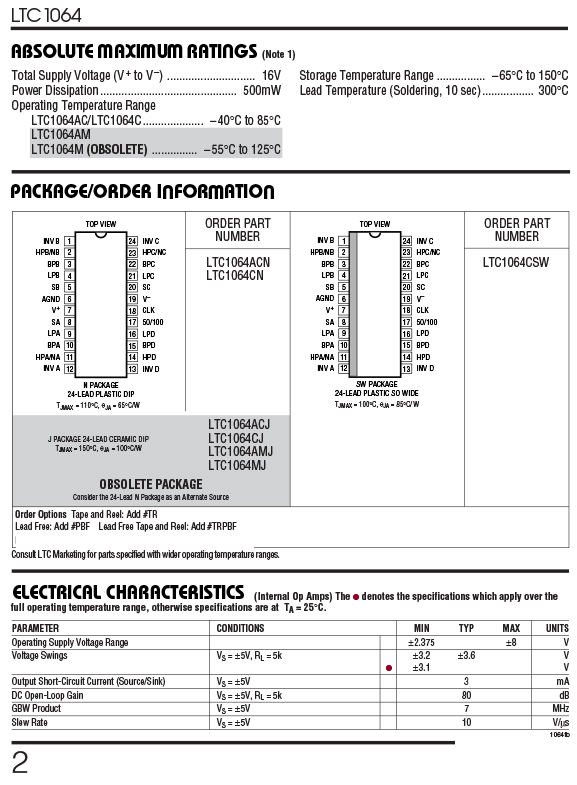

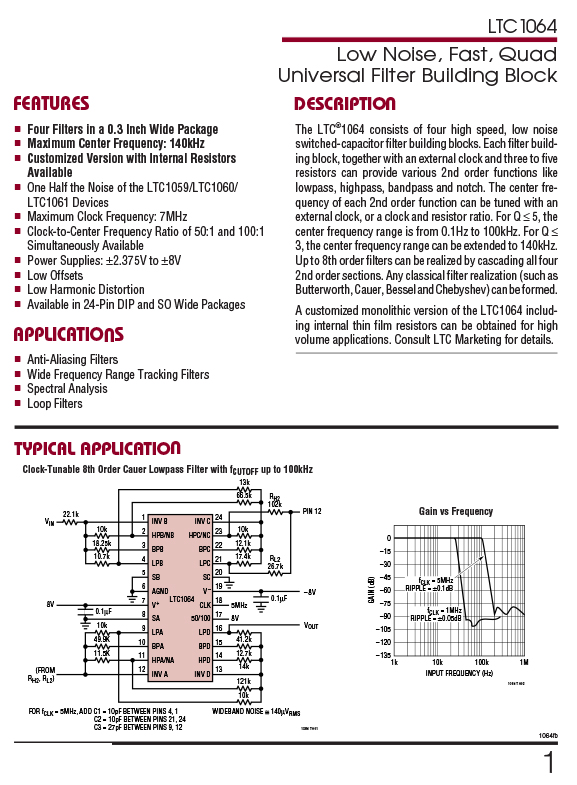

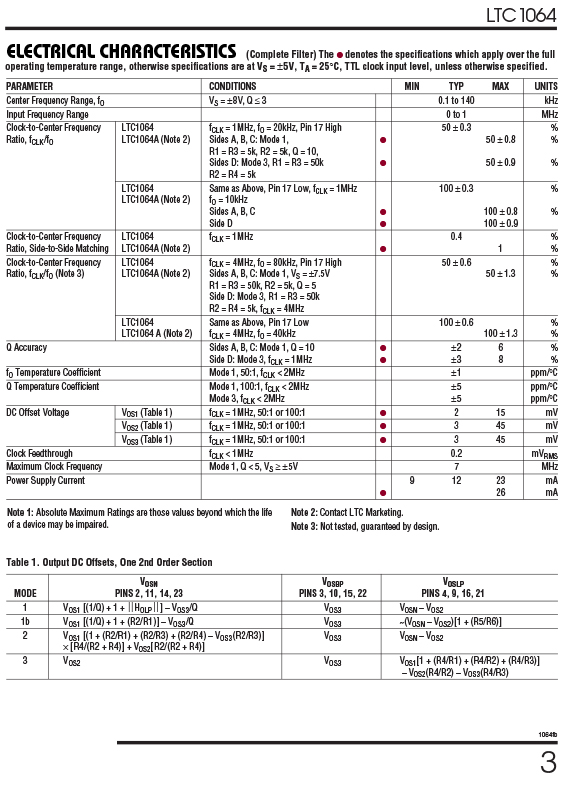

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
