Product Details
|

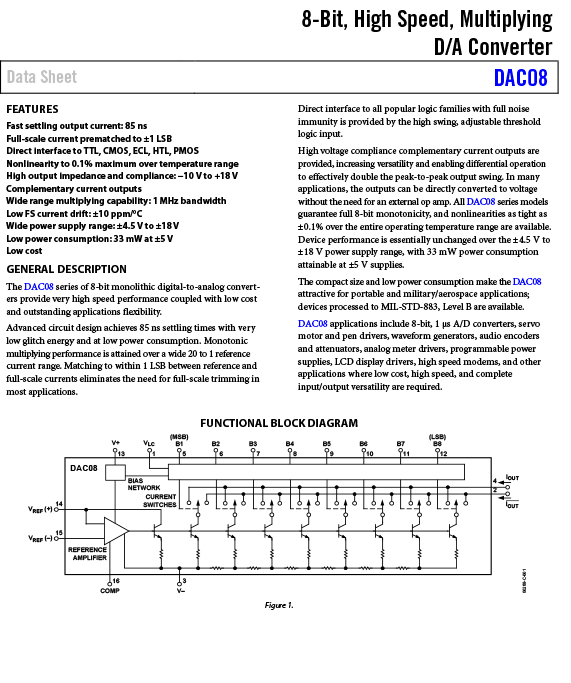

GENERAL DESCRIPTION The DAC08 series of 8-bit monolithic digital-to-analog converters provide very high-speed performance coupled with low cost and outstanding applications flexibility. Advanced circuit design achieves 85 ns settling times with very low “glitch” energy and at low power consumption. Monotonic multiplying performance is attained over a wide 20-to-1 reference current range. Matching to within 1 LSB between reference and full-scale currents eliminates the need for full-scale trimming in most applications. Direct interface to all popular logic families with full noise immunity is provided by the high swing, adjustable threshold logic input. FEATURES Fast Settling Output Current: 85 ns Full-Scale Current Prematched to ±1 LSB Direct Interface to TTL, CMOS, ECL, HTL, PMOS Nonlinearity to 0.1% Maximum over Temperature Range High Output Impedance and Compliance: –10 V to +18 V Complementary Current Outputs Wide Range Multiplying Capability: 1 MHz Bandwidth Low FS Current Drift: ±10 ppm/°C Wide Power Supply Range: ±4.5 V to ±18 V Low Power Consumption: 33 mW @ ±5 V Low Cost Available in Die Form |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DAC08Q |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | DIP, DIP16,.3 |
| Pin Count | 16 |
| Analog Output Voltage-Max | 18 V |
| Analog Output Voltage-Min | -10 V |
| Converter Type | D/A CONVERTER |
| Input Bit Code | BINARY |
| Input Format | PARALLEL, 8 BITS |
| Length | 19.05 mm |
| Linearity Error-Max (EL) | 0.19% |
| Negative Supply Voltage-Nom | -15 V |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Settling Time-Max | |
| Settling Time-Nom (tstl) |
0.085 μs |
| Supply Current-Max | 7.8 mA |
| Supply Voltage-Nom | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn63Pb37) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

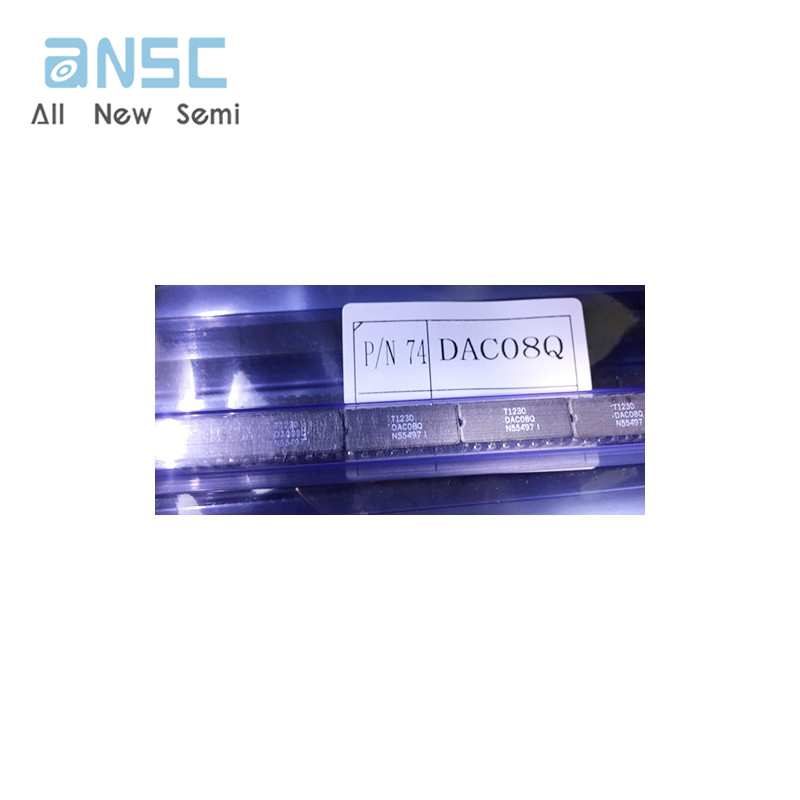

Product Photos

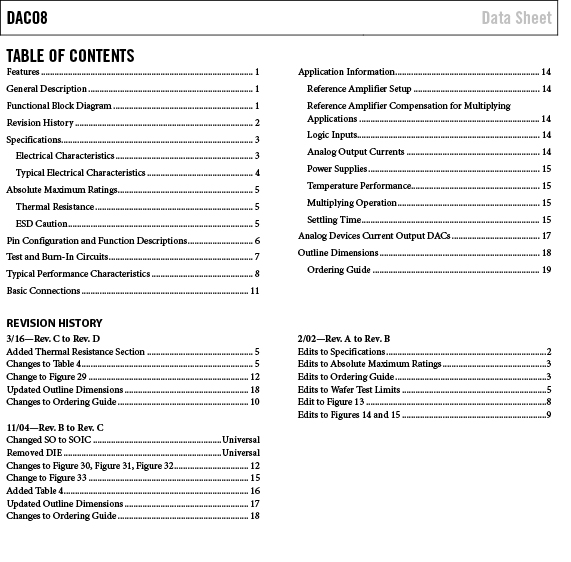

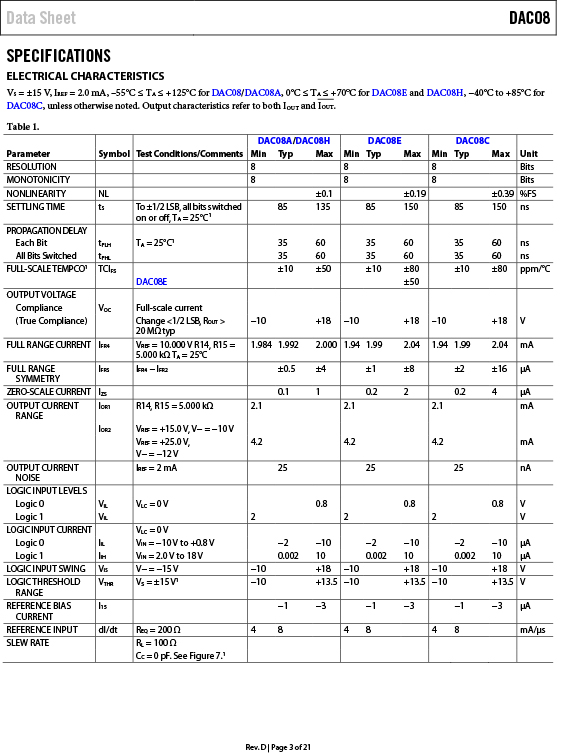

Product datasheet
