Product Details
|
GENERAL DESCRIPTION The ADV7123 (ADV?) is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. FEATURES 330 MSPS Throughput Rate Triple 10-Bit D/A Converters SFDR –70 dB at fCLK = 50 MHz; fOUT = 1 MHz –53 dB at fCLK = 140 MHz; fOUT = 40 MHz RS-343A/RS-170 Compatible Output Complementary Outputs DAC Output Current Range 2 mA to 26 mA TTL Compatible Inputs Internal Reference (1.23 V) Single-Supply 5 V/3.3 V Operation 48-Lead LQFP Package Low Power Dissipation (30 mW Min @ 3 V) Low Power Standby Mode (6 mW Typ @ 3 V) Industrial Temperature Range (–40°C to +85°C) APPLICATIONS Digital Video Systems (1600 1200 @ 100 Hz) High Resolution Color Graphics Digital Radio Modulation Image Processing Instrumentation Video Signal Reconstruction |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ADV7123JST240 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bag |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
| Base Product Number | ADV7123 |

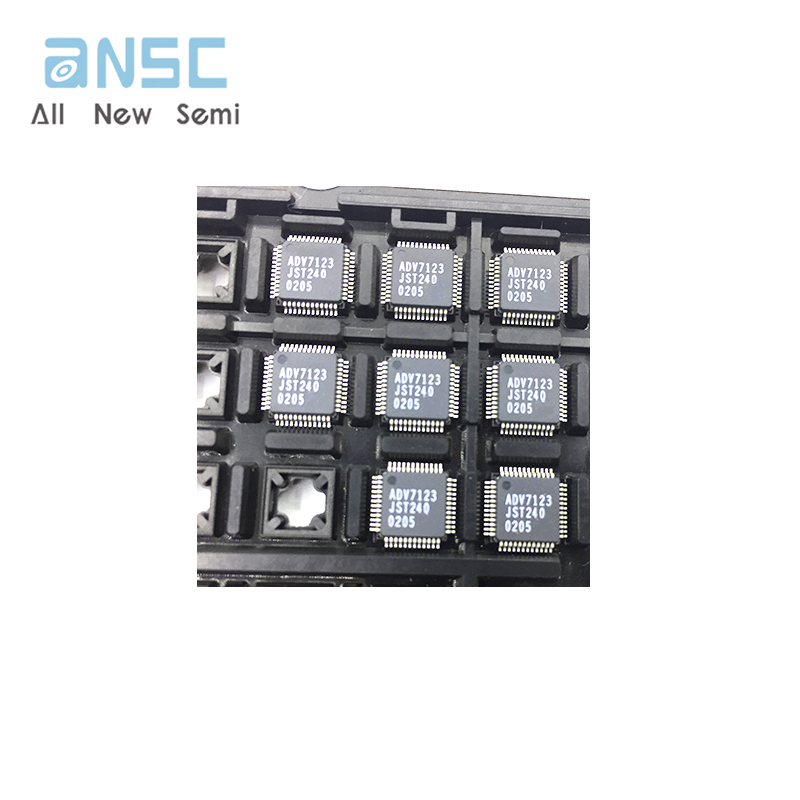

Product Photos

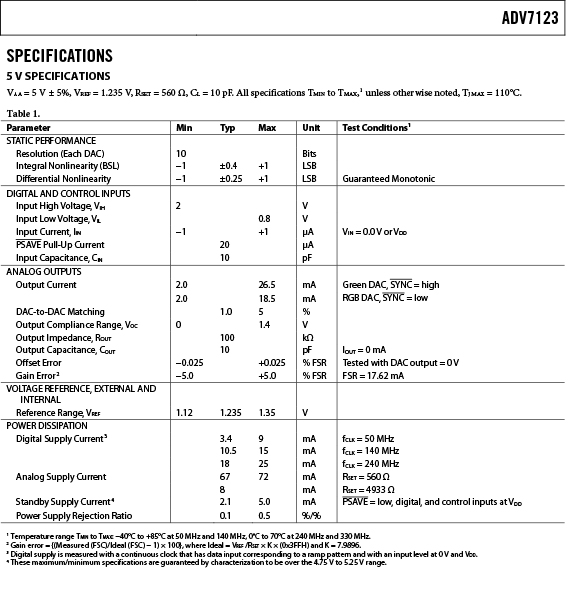

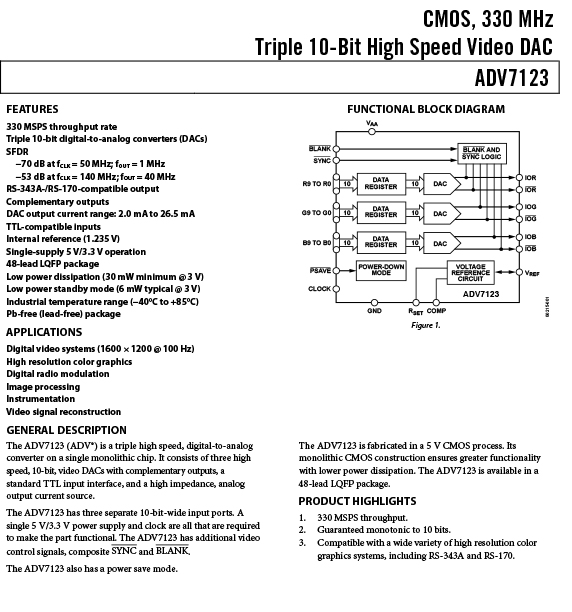

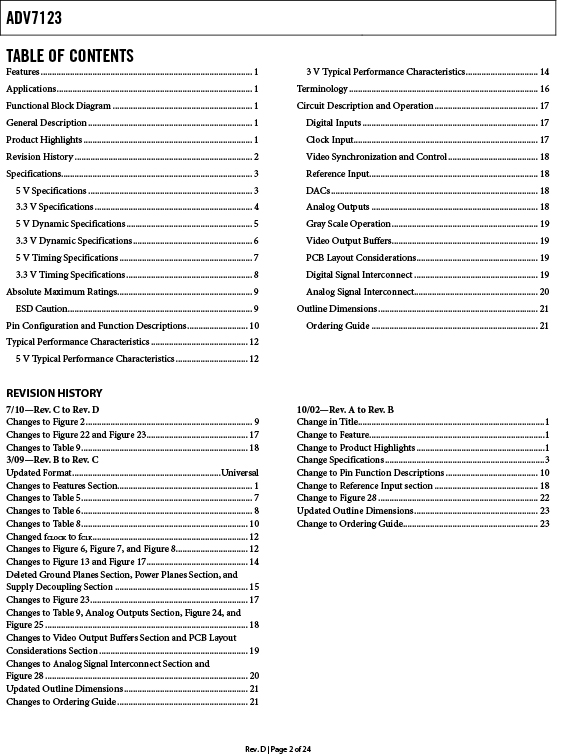

Product datasheet
