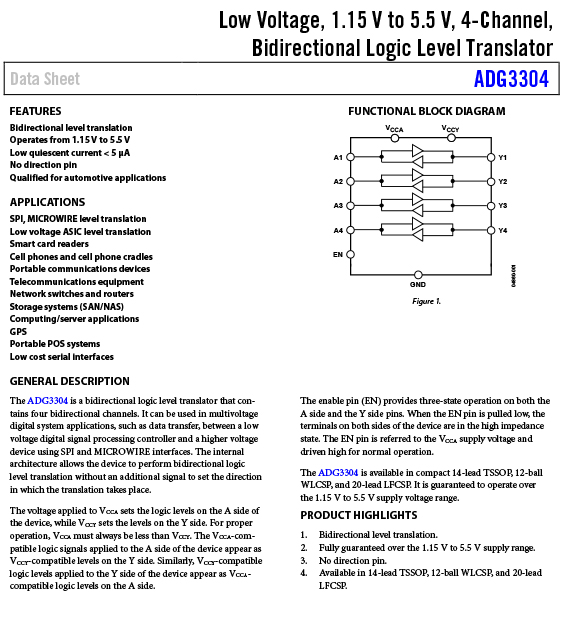

Description The ADG3304 is a bidirectional logic level translator that contains four bidirectional channels. It can be used in multivoltage digital system applications, such as data transfer, between a low voltage digital signal processing controller and a higher voltage device using SPI and MICROWIRE interfaces. The internal architecture allows the device to perform bidirectional logic level translation without an additional signal to set the direction in which the translation takes place. Features Bidirectional level translation Operates from 1.15 V to 5.5 V Low quiescent current < 5 μA No direction pin Qualified for automotive applications Application SPI, MICROWIRE level translation Low voltage ASIC level translation Smart card readers Cell phones and cell phone cradles Portable communications devices Telecommunications equipment Network switches and routers Storage systems (SAN/NAS) Computing/server applications GPS Portable POS systems Low cost serial interfaces |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG3304BRUZ |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.15 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 50Mbps |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | ADG3304 |
