Product Details
PRODUCT DESCRIPTION
The AD844 is a high-speed monolithic operational amplifier fabricated using junction isolated complementary bipolar (CB) process. It combines high bandwidth and very fast large signal response with excellent dc performance. Although optimized for use in current to voltage applications and as an inverting mode amplifier, it is also suitable for use in many noninverting applications.
FEATURES
Wide Bandwidth: 60 MHz at Gain of –1
Wide Bandwidth: 33 MHz at Gain of –10
Very High Output Slew Rate: Up to 2000 V/μs
20 MHz Full Power Bandwidth, 20 V p-p, RL = 500 Ω
Fast Settling: 100 ns to 0.1% (10 V Step)
Differential Gain Error: 0.03% at 4.4 MHz
Differential Phase Error: 0.158 at 4.4 MHz
High Output Drive: 650 mA into 50 Ω Load
Low Offset Voltage: 150 mV Max (B Grade)
Low Quiescent Current: 6.5 mA
Available in Tape and Reel in Accordance with
EIA-481A Standard
APPLICATIONS
Flash ADC Input Amplifiers
High-Speed Current DAC Interfaces
Video Buffers and Cable Drivers
Pulse Amplifiers
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -AD844AN |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | / |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 2000V/μs |
| -3db Bandwidth | 60 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 50 μV |
| Current - Supply | 6.5mA |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | AD844 |

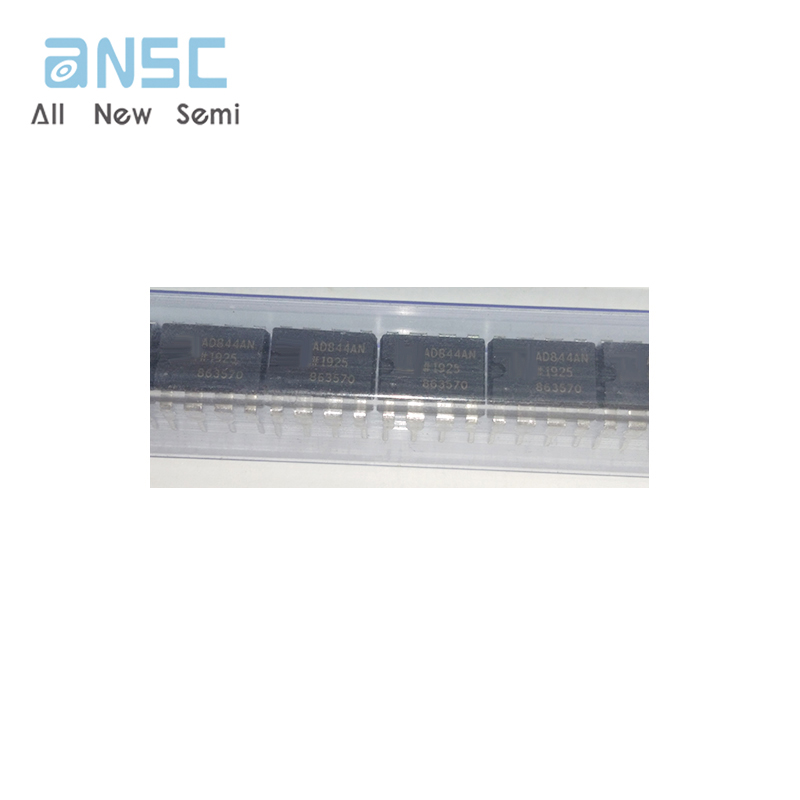

Product Photos

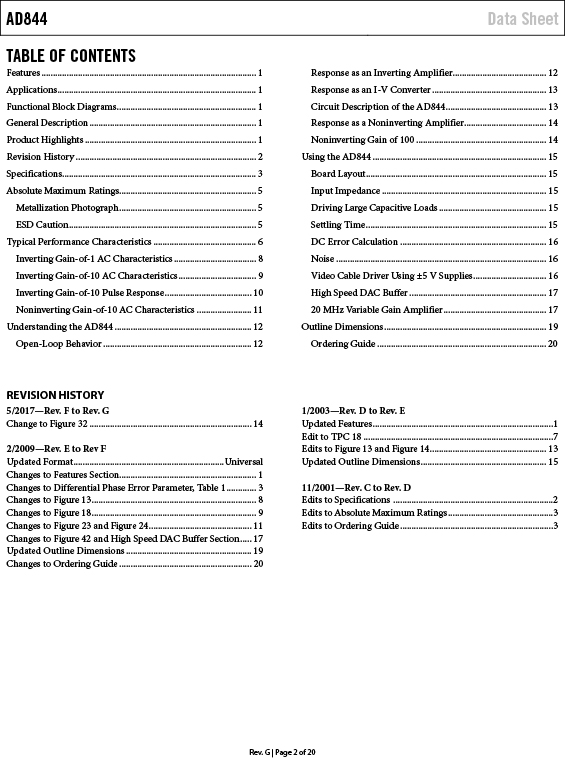

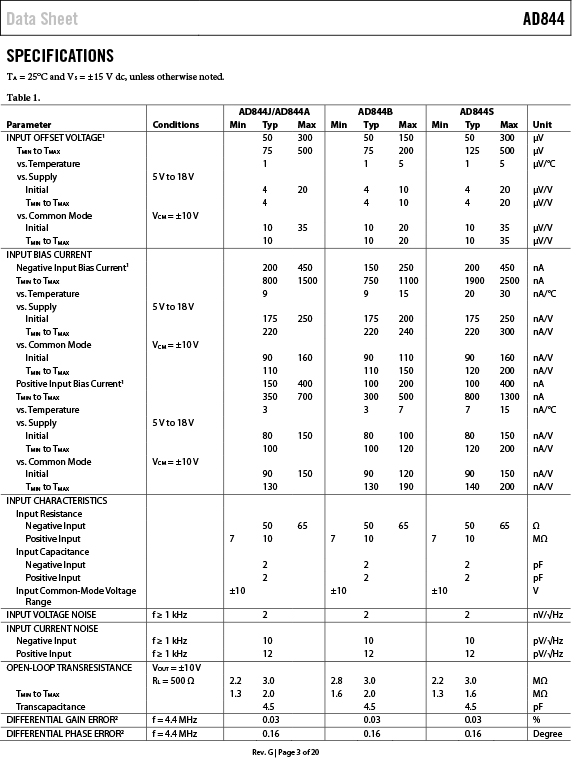

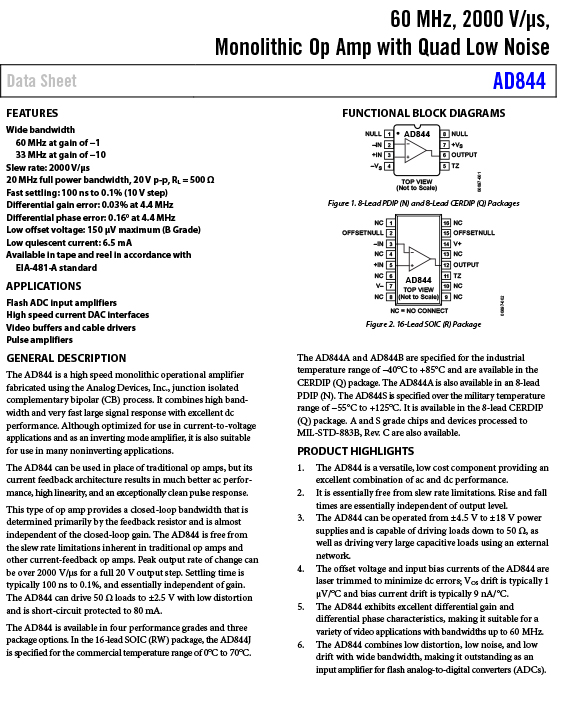

Product datasheet
For more information, please download
