Product Overview
There is a mounting type Through Hole for the device.RMS to DC converter should operate at a voltage of 5V~36V ±3V~18V.As far as packaging is concerned, it is in a Bulk way.In a TO-100-10 Metal Can unit, it is packaged.The device has a total of 10 pins.Power is always provided by a 15V volt supply.There are terminations of 10 on this system.Among the device's best features, there are a number of AD536A.The negative supply voltage is given by -15V.Currently, the gadget's supply current is set to 2mA.Operation should take place at a warmer temperature than 0°C.At this time, 70°C represents the maximum operational temperature.As a result, the pin number of the component remains 10.RMS to DC converter is a component of mount "Through Hole."DC DC switching regulators operate with 15V supplies.This device has an input voltage (Max) of 7V.A part with a -3db bandwith is designated as 450 kHz.Converting from 1 to 1 is possible.
Product Features
Supply voltage of 5V~36V ±3V~18V
10 pins
AD536A best part number
Operating supply current of 2mA
7V input voltage at maximum
Product Applications
AD536AJHZ applications of RMS to DC converters.
· Digital Multimeters
· Battery-Powered Instruments
· Panel Meters
· Process Control
· True RMS Digital Multimeters and Panel Meters
· True RMS AC + DC Measurements
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD536AJHZ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| RMS to DC Converters | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Current - Supply | 1.2 mA |
| Voltage - Supply | 5V ~ 36V, ±3V ~ 18V |
| Mounting Type | Through Hole |
| Package / Case | TO-100-10 Metal Can |
| Supplier Device Package | TO-100-10 |
| Base Product Number | AD536 |

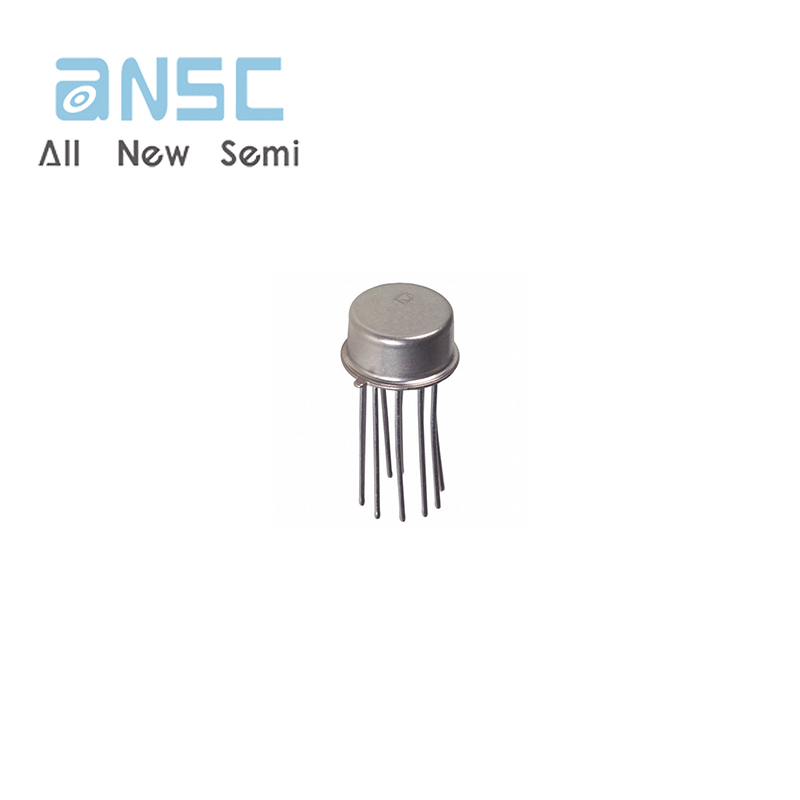

Product Photos

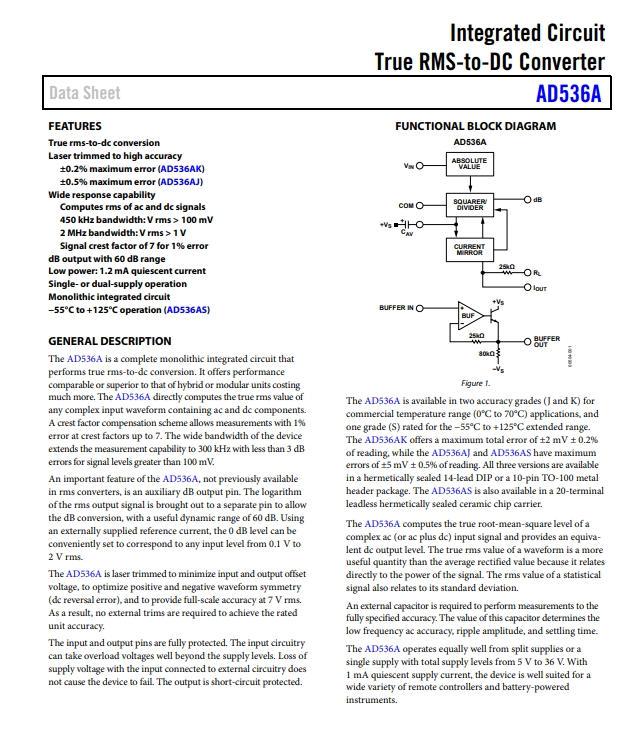

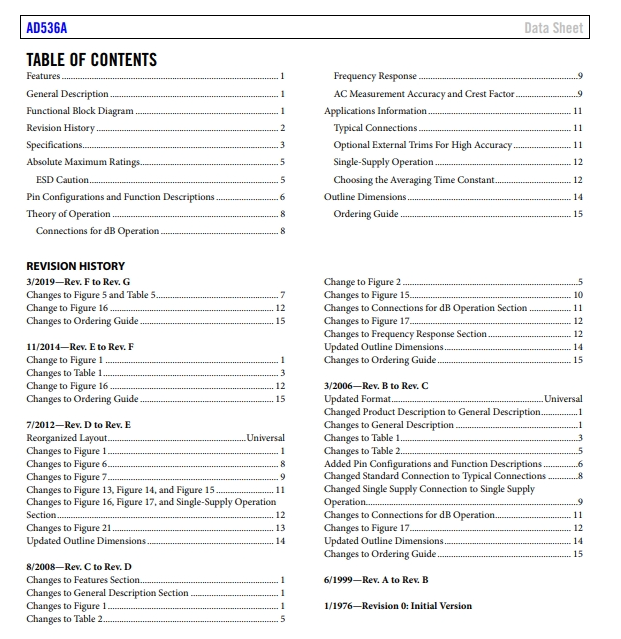

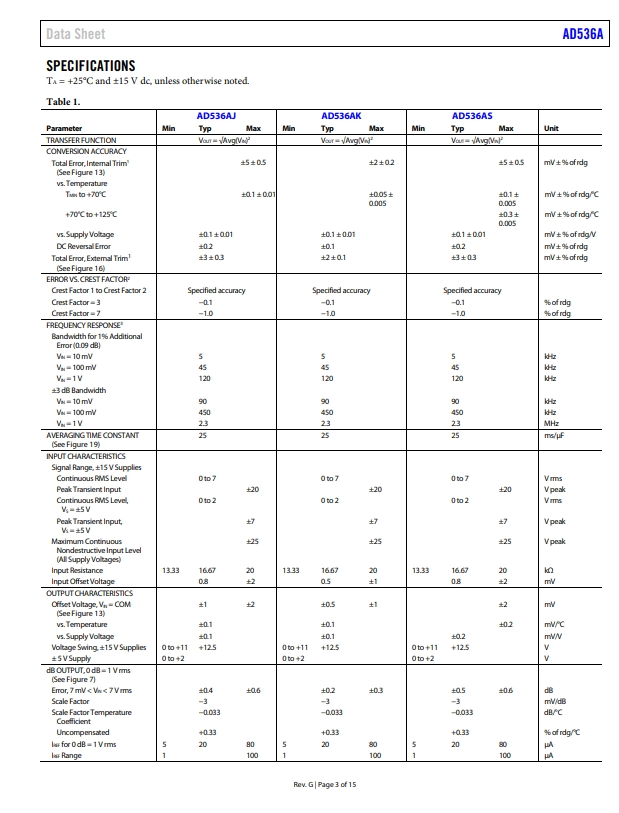

Product datasheet
For more information, please download
