Product Description The AX88772 USB to 10/100 Fast Ethernet/HomePNA/HomePlug controller is a high performance and highly integrated ASIC with embedded 28KB SRAM for packet buffering. It enables low cost and affordable Fast Ethernet network connection to desktop, notebook PC, and embedded system using popular USB ports. It has an USB interface to communicate with USB host controller and is compliant with USB specification V1.1 and V2.0. It implements 10/100Mbps Ethernet LAN function based on IEEE802.3, and IEEE802.3u standards or HomePNA standard. It integrates an on-chip 10/100Mbps Ethernet PHY to simplify system design and provides an optional media-independent interface (MII) for implementing Fast Ethernet and HomePNA functions. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - AX88772BLI |
| Ihs Manufacturer | Original |
| Package Description | LQFP-64 |
| Samacsys Manufacturer | ASIX |
| Additional Feature | ALSO OPERATES AT 3.3 V SUPPLY |
| Address Bus Width | |
| Boundary Scan | NO |
| Bus Compatibility | ETHERNET, USB |
| Clock Frequency-Max | 25 MHz |
| Communication Protocol | ASYNC, BIT |
| Data Transfer Rate-Max | 100 MBps |
| External Data Bus Width | |
| Length | 7 mm |
| Low Power Mode | YES |
| Number of I/O Lines | 3 |
| Number of Terminals | 64 |
| Operating Temperature-Max |
85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP64,.35SQ,16 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Seated Height-Max | 1.6 mm |
| Supply Voltage-Max | 1.98 V |
| Supply Voltage-Min | 1.62 V |
| Supply Voltage-Nom | 1.8 V |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.4 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 7 mm |
| uPs/uCs/Peripheral ICs Type | SERIAL IO/COMMUNICATION CONTROLLER, LAN |

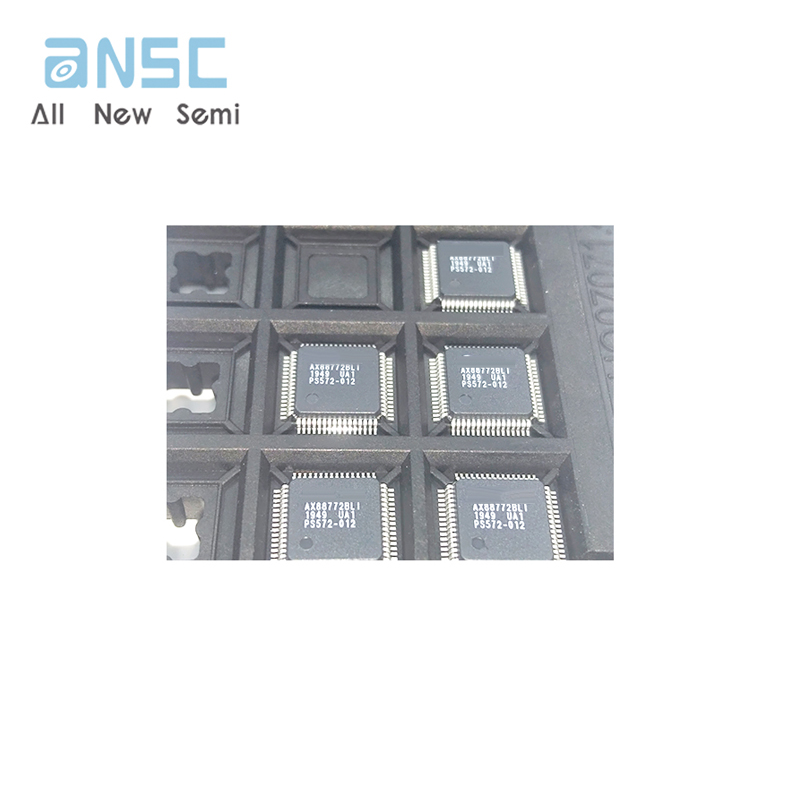

Product Photos
Product datasheet
