Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74F257ADC |
| Ihs Manufacturer | Original |
| Package Description | DIP-16 |
| Family | F/FAST |
| Length | 19.43 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | MULTIPLEXER |
| Max I(ol) | 0.024 A |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max |
70 °C |
| Operating Temperature-Min | |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 22 mA |
| Prop. Delay@Nom-Sup | 10.5 ns |
| Propagation Delay (tpd) | 8 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
Product Photos

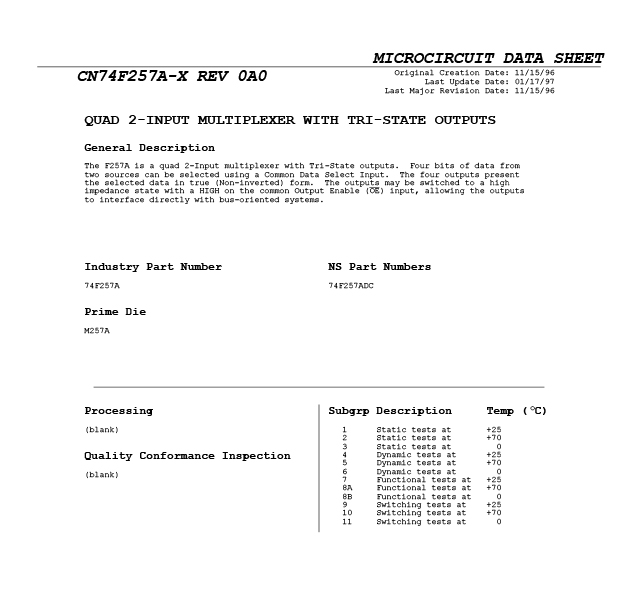

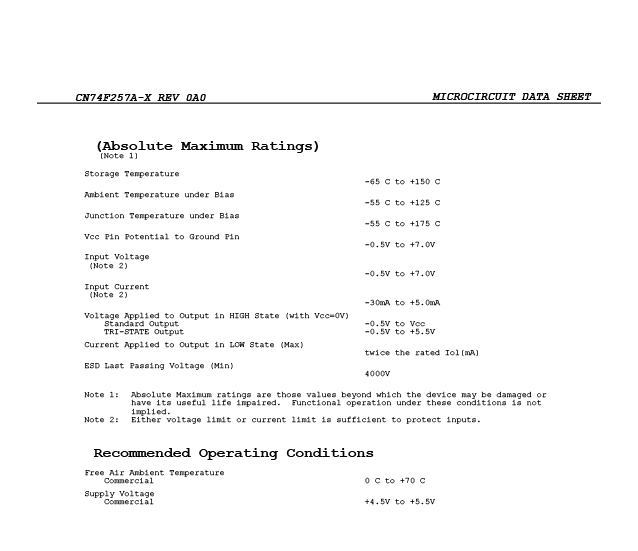

Product datasheet
For more information, please download
