Product Details
|
GENERAL DESCRIPTION The AD7997/AD7998 are 8-channel, 10- and 12-bit, low power, successive approximation ADCs with an I2C-compatible interface. The parts operate from a single 2.7 V to 5.5 V power supply and feature a 2 μs conversion time. The parts contain an 8-channel multiplexer and track-and-hold amplifier that can handle input frequencies up to 11 MHz. FEATURES 10- and 12-bit ADC with fast conversion time: 2 μs typ 8 single-ended analog input channels Specified for VDD of 2.7 V to 5.5 V Low power consumption Fast throughput rate: up to 188 kSPS Sequencer operation Automatic cycle mode I2C?-compatible serial interface supports standard, fast, and high speed modes Out-of-range indicator/alert function Pin-selectable addressing via AS Shutdown mode: 1 μA max Temperature range: ?40°C to +85°C 20-lead TSSOP package See the AD7992 and AD7994 for 2-channel and 4-channel equivalent devices, respectively |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD7997BRUZ-1 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 188k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature |
-40°C ~ 85°C |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD7997 |

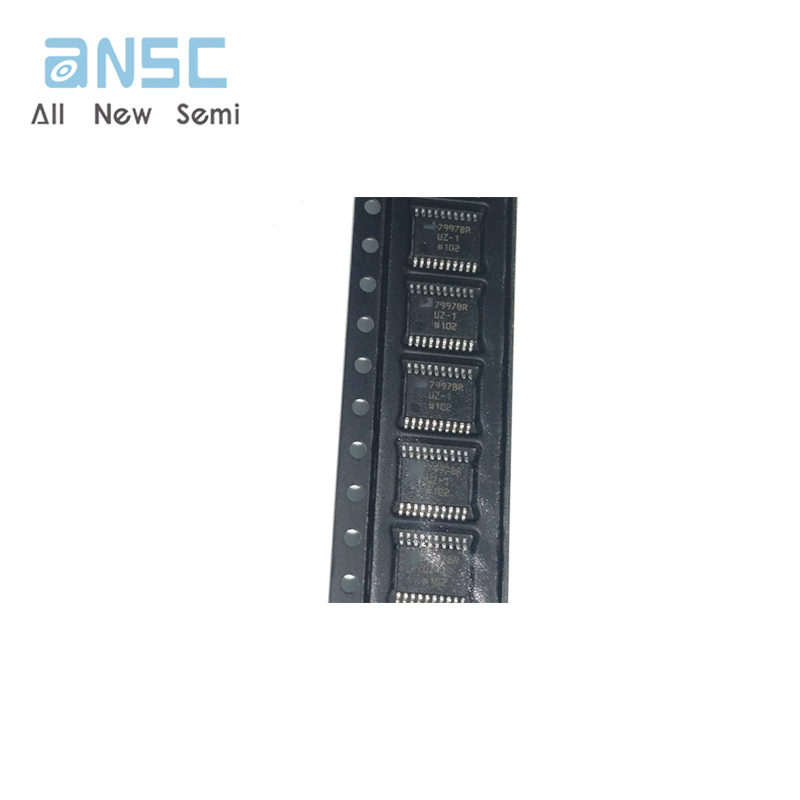

Product Photos

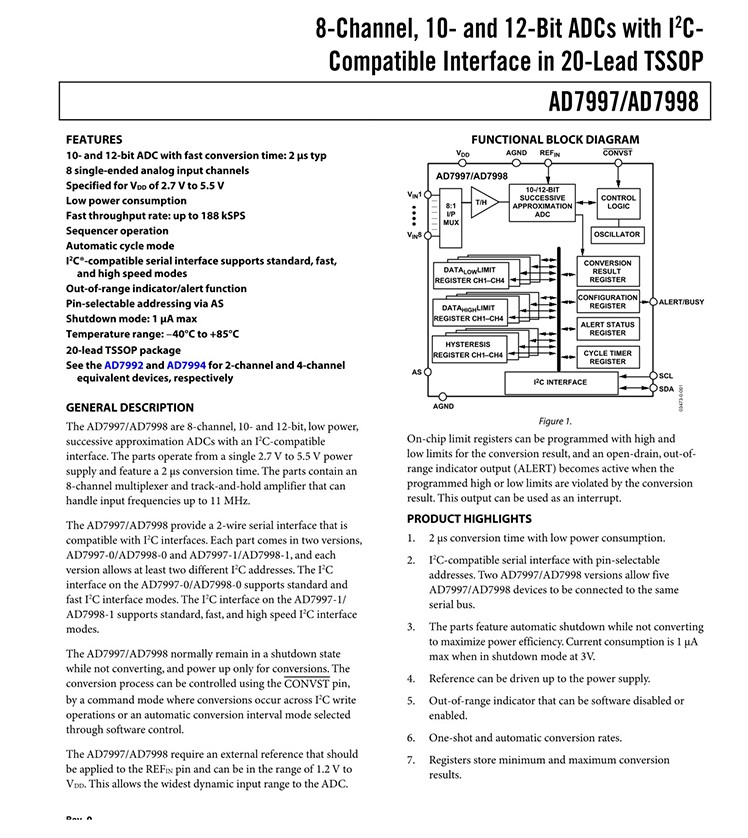

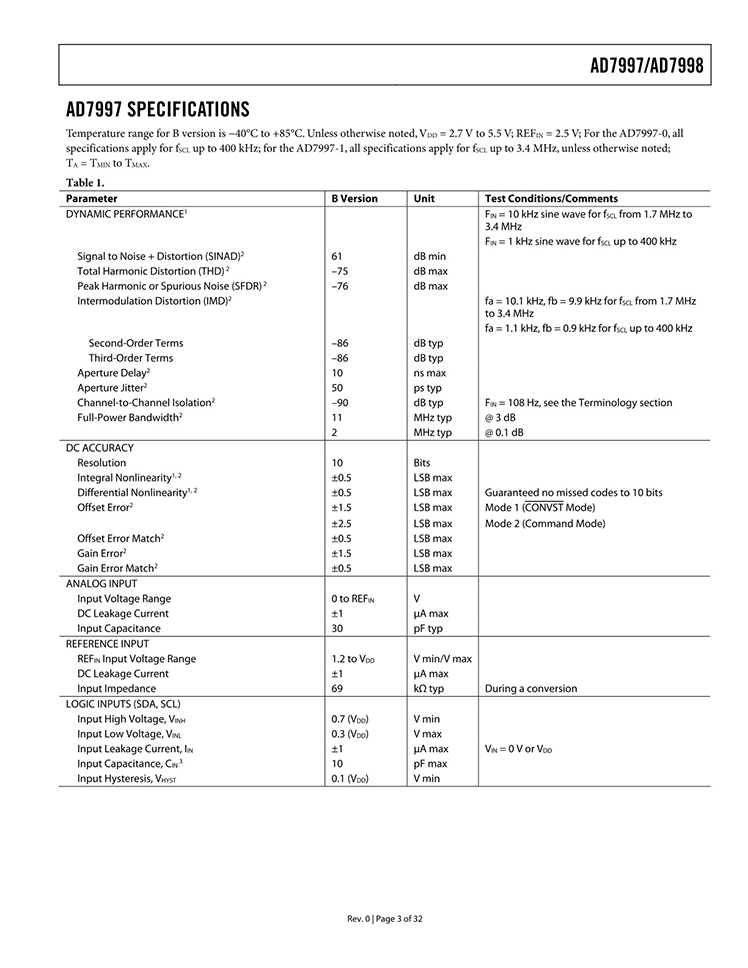

Product datasheet
For more information, please download
