Product Details
| Description PI5V330S is a true bidirectional Quad 2-channel multiplexer/demultiplexer recommended for both RGB and composite video switching applications. The video switch can be driven from a current output RAMDAC or voltage output composite video source. ? High-performance solution to switch between video sources ? Wide bandwidth: 570 MHz (typical) ? Low On-Resistance: 5? (typical) ? Low crosstalk at 10 MHz: –80dB ? Ultra-low quiescent power (0.1μA typical) ? Single supply operation: +5.0V ? Fast switching: 10ns ? ESD > 5KV HBM, 10KV I/O to GND ? Packaging (Pb-free & Green Available): – 16-pin 150-mil wide plastic SOIC (W) – 16-pin 150-mil wide plastic QSOP (Q) |
Product Description
| Type | Description |
| ANSC PART# | ANSC- SQE48T20033-NGB0G |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Bel Power Solutions |
| Series | SemiQ? SQE48T |
| Packaging | Bulk |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 66 W |
| Voltage - Isolation | 2 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm) |
| Control Features | Enable, Active Low |
| Base Product Number | SQE48T20033 |

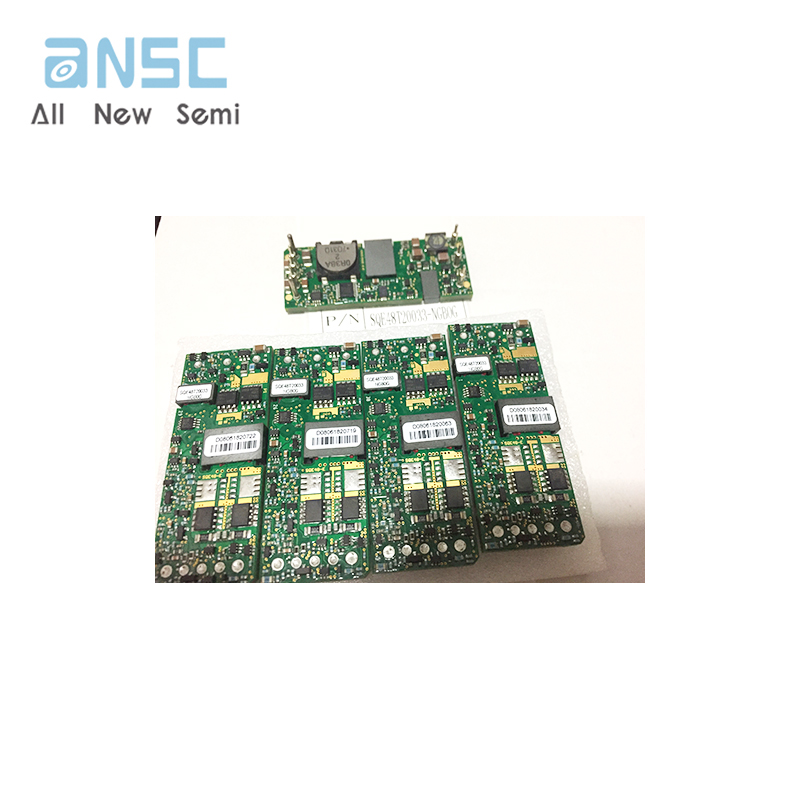

Product Photos

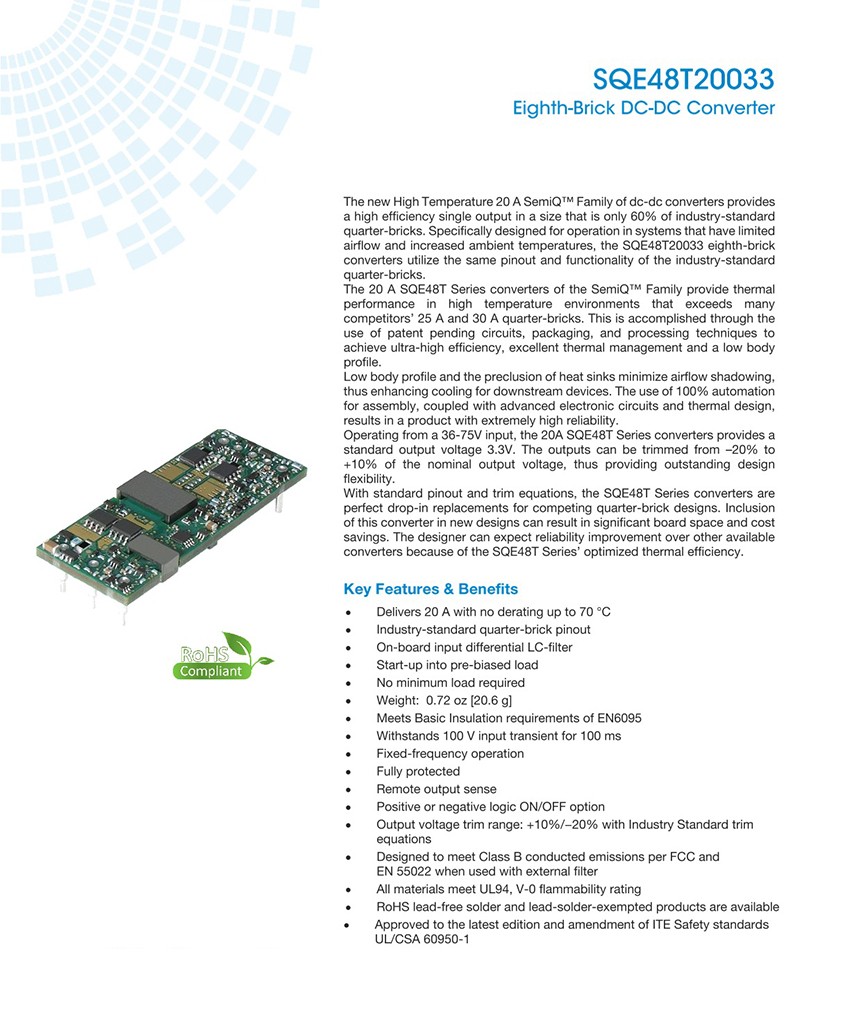

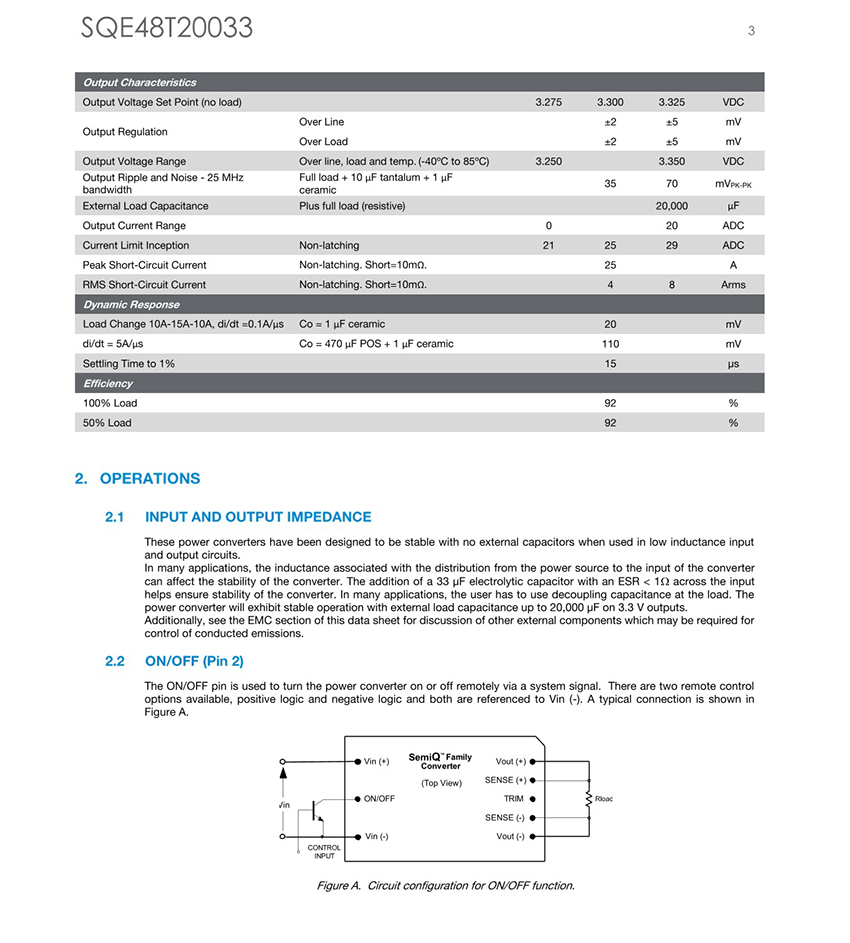

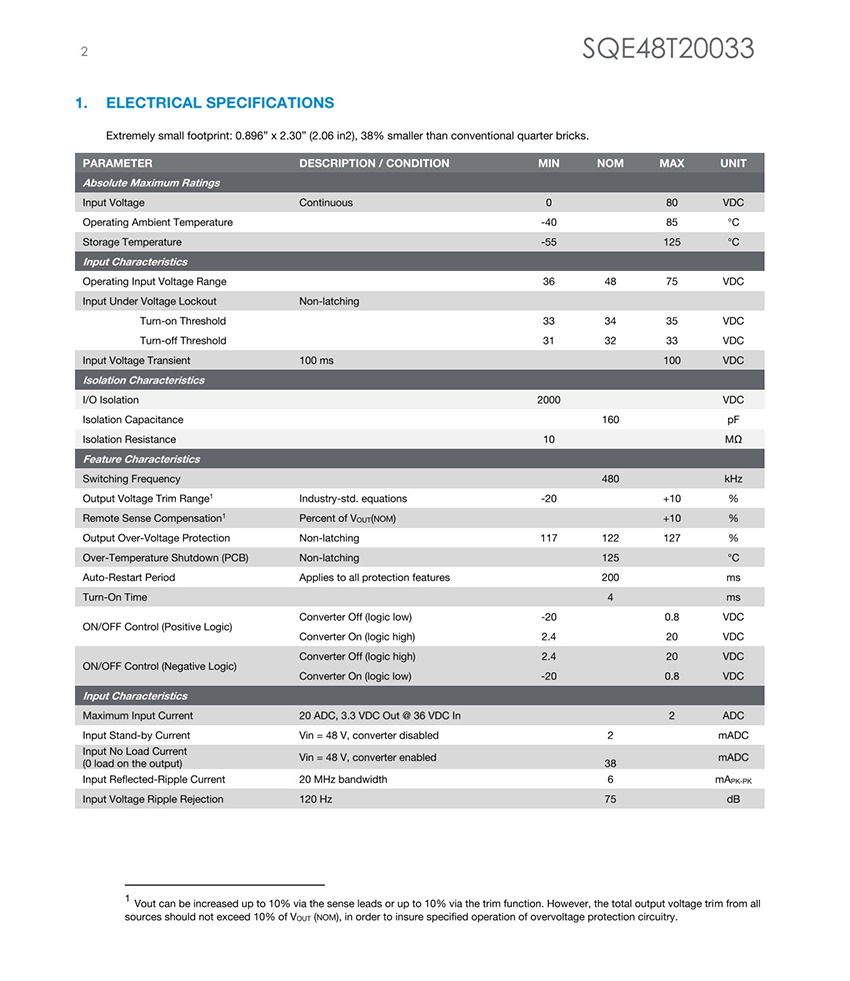

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
