Product Details
|
General Description The 74F174 is a high-speed hex D-type flip-flop. The device is used primarily as a 6-bit edge-triggered storage register. The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition. The device has a Master Reset to simultaneously clear all flip-flops. Features ■ Edge-triggered D-type inputs ■ Buffered positive edge-triggered clock ■ Asynchronous common reset ■ Guaranteed 4000V minimum ESD protection |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 74F174PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | Original |
| Series | 74F |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Clock Frequency | 80 MHz |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 1mA, 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 45 mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Base Product Number | 74F174 |

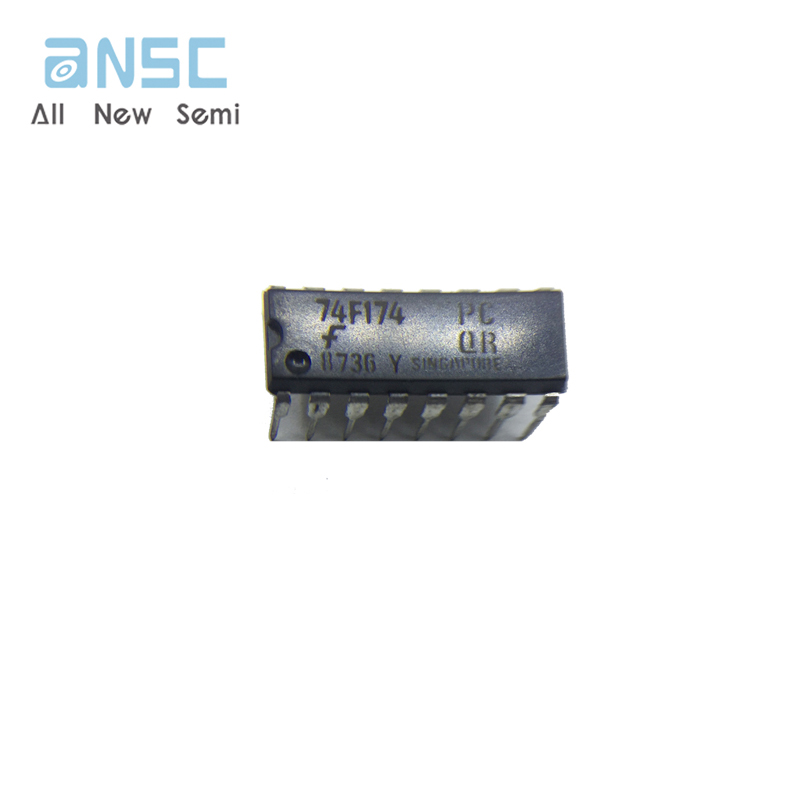

Product Photos

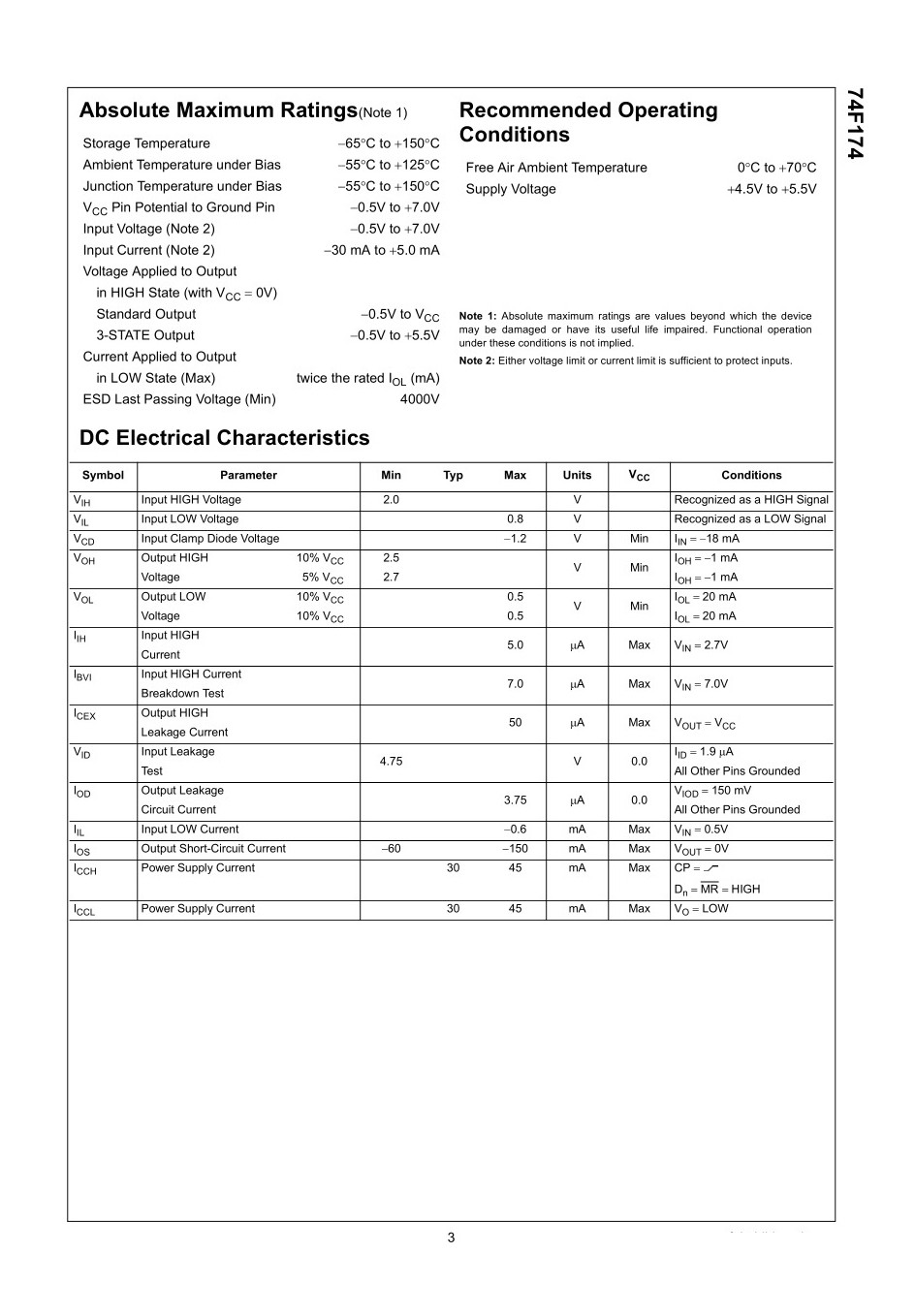

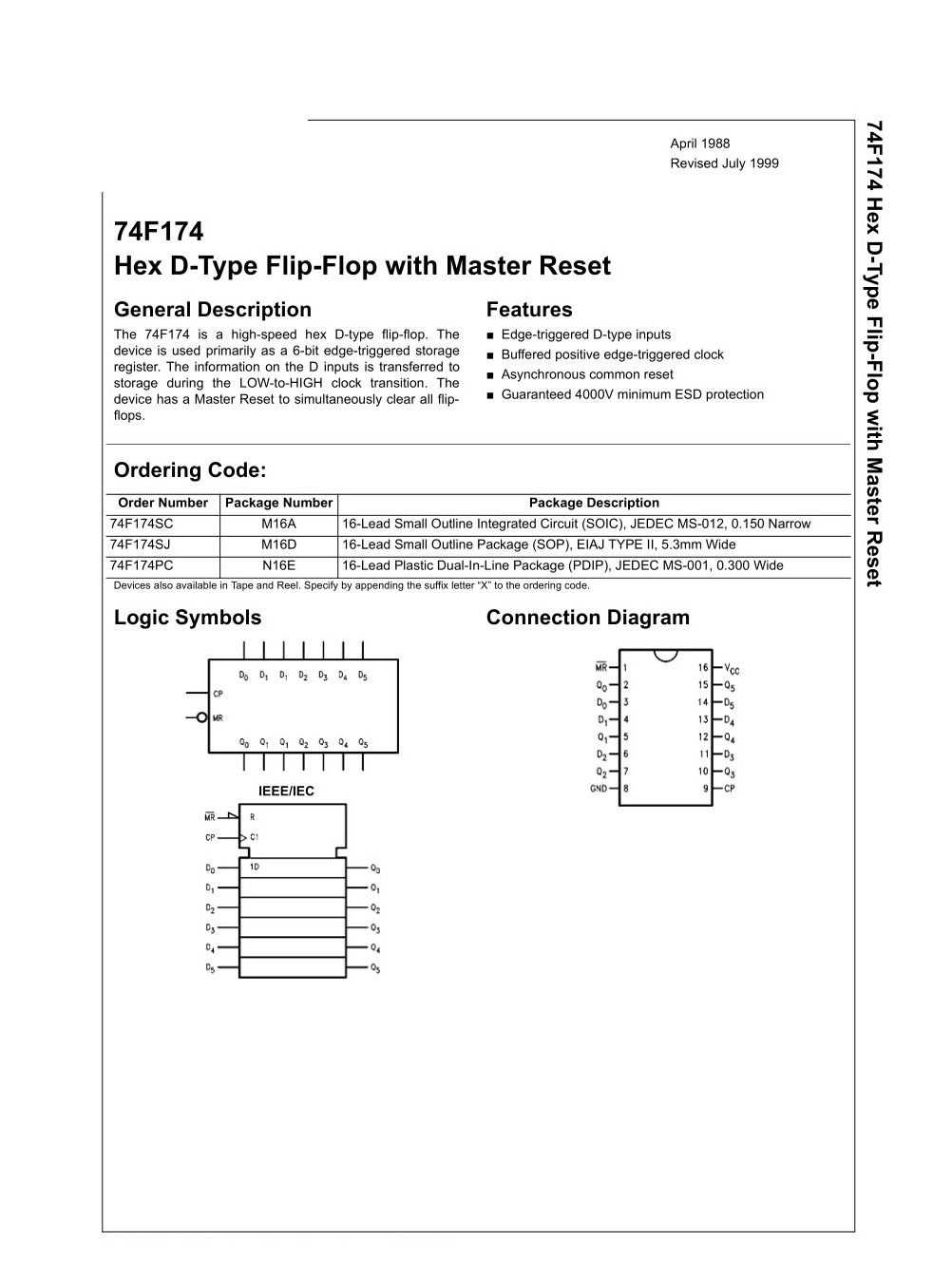

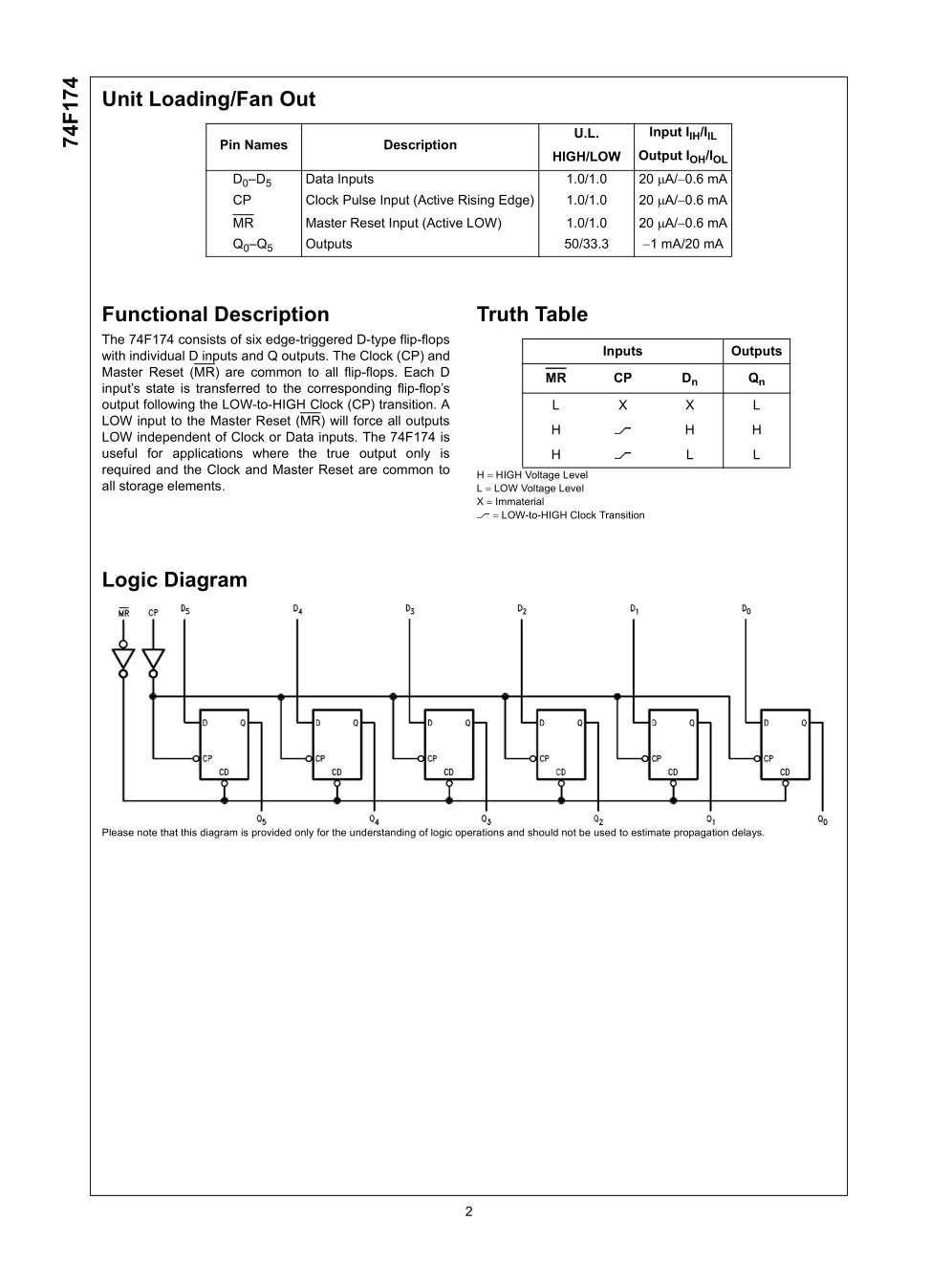

Product datasheet
For more information, please download
