Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54LS05DM |
| Ihs Manufacturer | Original |
| Package Description | DIP, DIP14,.3 |
| Family | LS |
| Length | 19.94 mm |
| Logic IC Type | INVERTER |
| Number of Functions | 6 |
| Number of Inputs | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min | -55 °C |
| Output Characteristics | OPEN-COLLECTOR |
| Package Body Material | CERAMIC |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 45 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

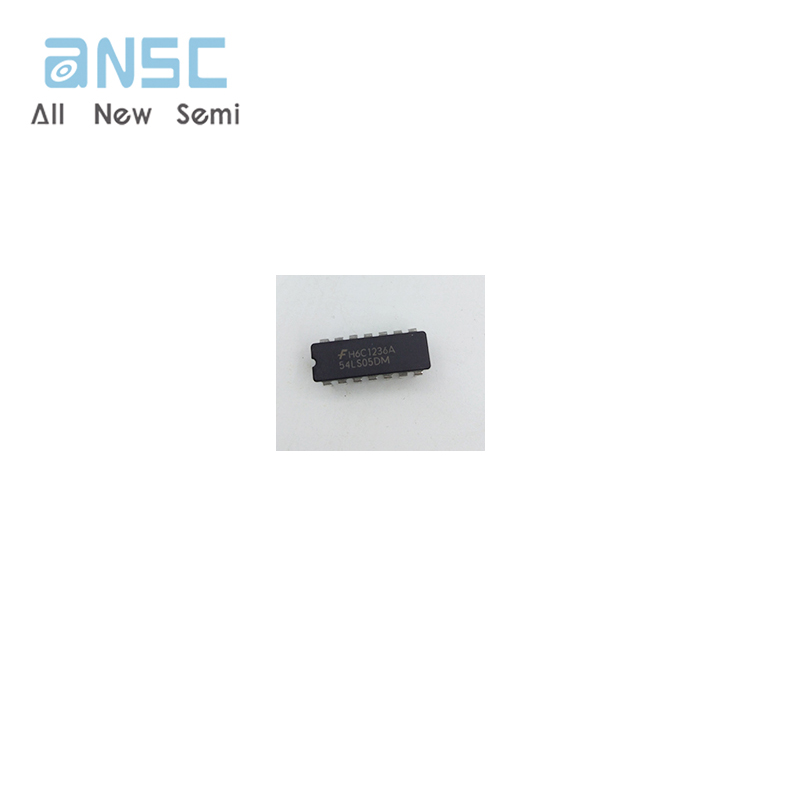

Product Photos

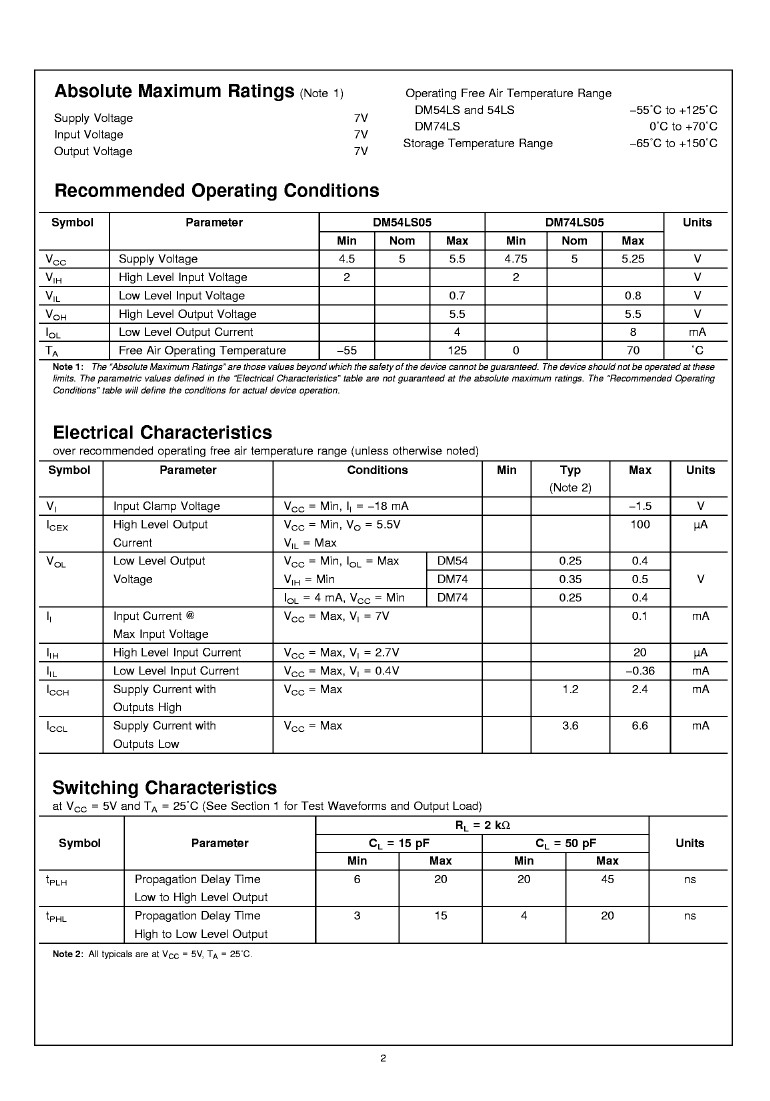

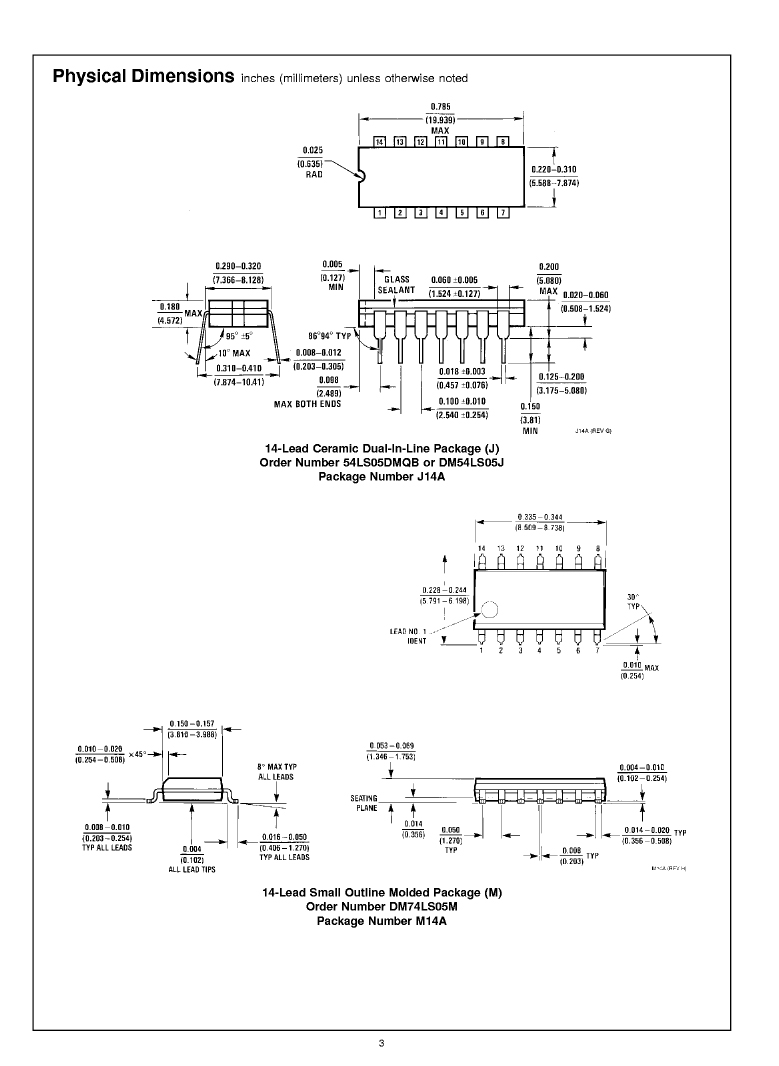

Product datasheet
